Klein 5000 V2 Series - Figure 4-4: Crossbar Used to Secure Tail Cone Parts; Figure 4-5: Tail Cone Being Tightened with Screwdriver and Key

Replacing the Fixed Tail Cone Assembly 4-5
4. Install the crossbar (4) into
the large hole.
5. Using the flat bladed screw
driver, align the threaded
hole in the crossbar (4) and
screw the bolt (7) with the
retaining cup (5) into the
crossbar with the 8-mm hex
key. Leave the retaining
cup loose to accommodate
the tail fins.

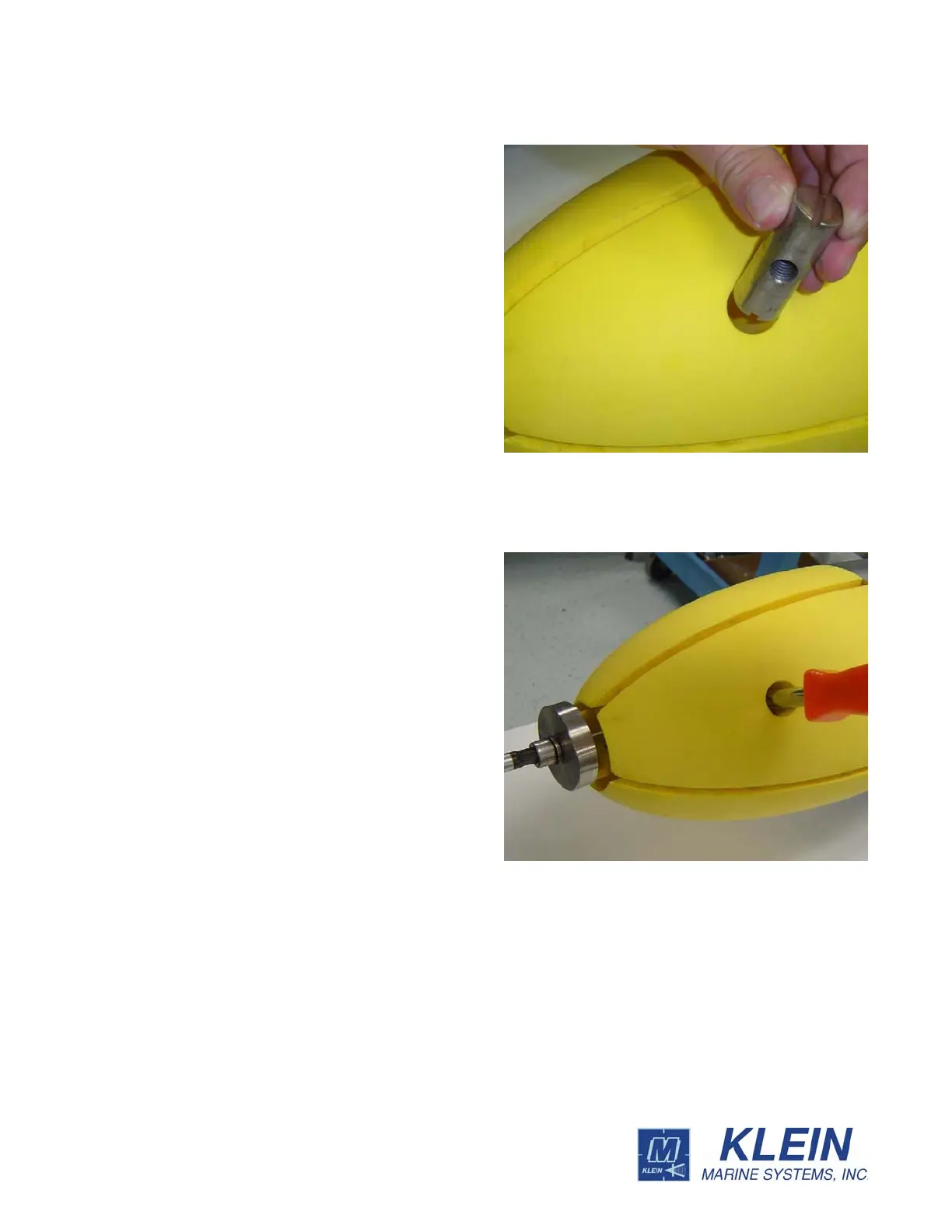

Figure 4-4: Crossbar Used to Secure Tail Cone
Parts
Figure 4-5: Tail Cone Being Tightened With
Screwdriver and Key
