6. Install the two horizontal
tail fins (2) and the vertical
tail fin (3) by inserting the
forward slot into the
towfish body. The rearward
slot should be secured by
the retaining cup.
7. Tighten the retaining cup
bolt (7) so that the tail fins
are secured.
4.4 Removing the Fixed Tail Cone Assembly
Removal of the fixed tail cone assembly is the reverse of the installation
procedure.

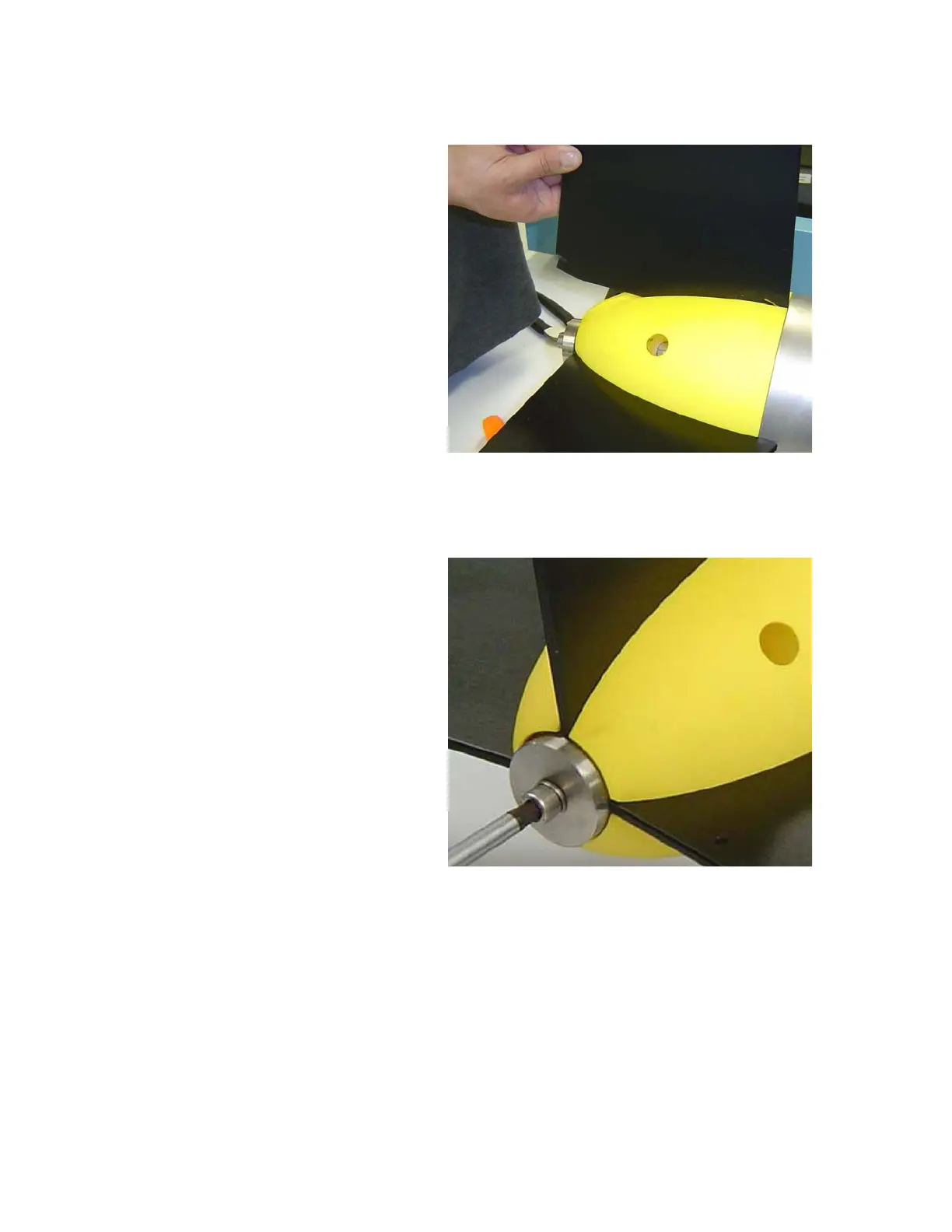

Figure 4-6: Tail Fins being Inserted into Tail
Cone
Figure 4-7: Tail Fins being Secured to Tail
Cone
