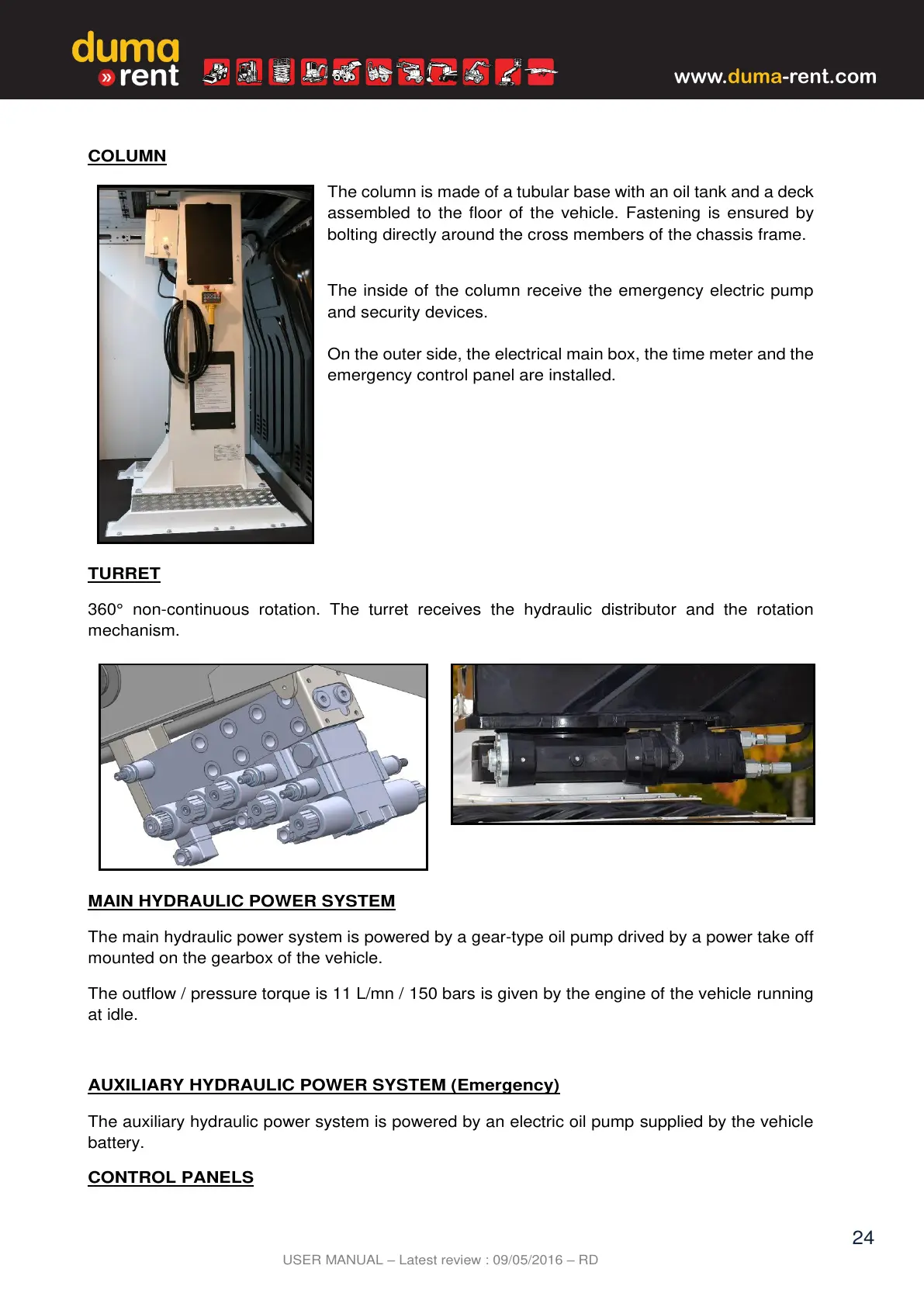

COLUMN
The column is made of a tubular base with an oil tank and a deck
assembled to the floor of the vehicle. Fastening is ensured by
bolting directly around the cross members of the chassis frame.
The inside of the column receive the emergency electric pump
and security devices.
On the outer side, the electrical main box, the time meter and the
emergency control panel are installed.
TURRET
360° non-continuous rotation. The turret receives the hydraulic distributor and the rotation
mechanism.
MAIN HYDRAULIC POWER SYSTEM
The main hydraulic power system is powered by a gear-type oil pump drived by a power take off
mounted on the gearbox of the vehicle.
The outflow / pressure torque is 11 L/mn / 150 bars is given by the engine of the vehicle running
at idle.
AUXILIARY HYDRAULIC POWER SYSTEM (Emergency)
The auxiliary hydraulic power system is powered by an electric oil pump supplied by the vehicle
battery.
CONTROL PANELS
