Specialized Maintenance Tools
KMT Waterjet has designed tools to facilitate the removal and installation of specialized system
components. These tools are illustrated in Figure 9-7, Specialized Maintenance Tools, and part
numbers are provided in Table 9-2.

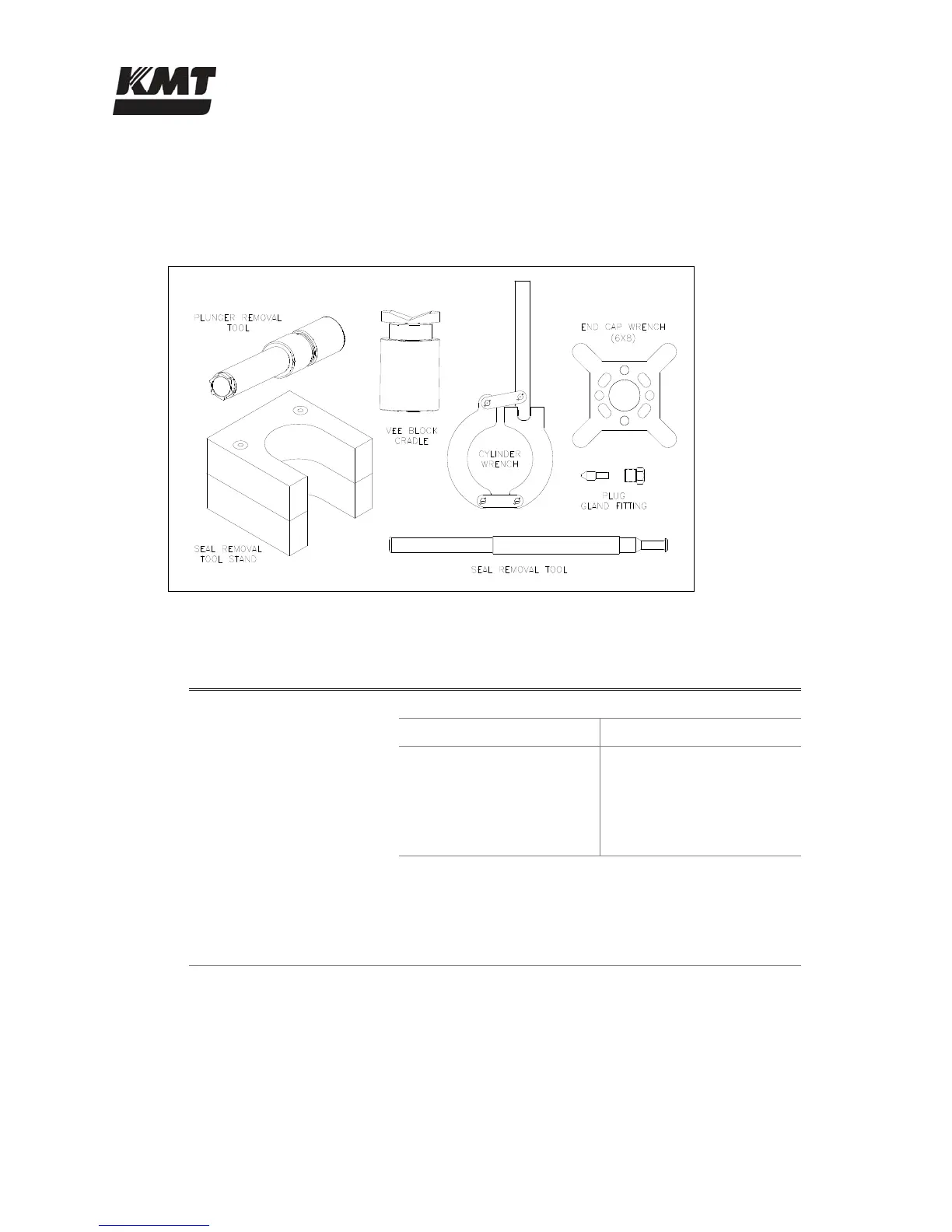

Figure 9-7: Specialized Maintenance Tools
Table 9-2
Specialized Maintenance Tools
High Pressure Water System
Part Number
7/8” Diameter Plunger 1-1/8” Diameter Plunger
Plunger Removal Tool 20477460 20477469
Plug 10079523 (3/8”) 10078772 (9/16”)
Gland Fitting 10078129 (3/8”) 10078608 (9/16”)
Seal Removal Tool 10148674 05146618
End Cap Wrench 80079239 (6x 8x)
Cylinder Wrench 05066139
Seal Removal Tool Stand 80078330
Vee Block Cradle 20484961
