Section 2
Installation
20412922
8-2012/Rev 10
2-2
2.3 Site Requirements
The intensifier must be installed indoors where air borne dust and contaminants are minimal. The
ambient temperature should be between 40 F (5 C) and 104 F (40 C), with a maximum
relative humidity of 95%.
Refer to Table 2-1, Equipment Dimensions and Weight, to establish a suitable installation site. A
minimum clearance of 36 inches (914 mm) should be provided on all sides of the machine to
facilitate service.

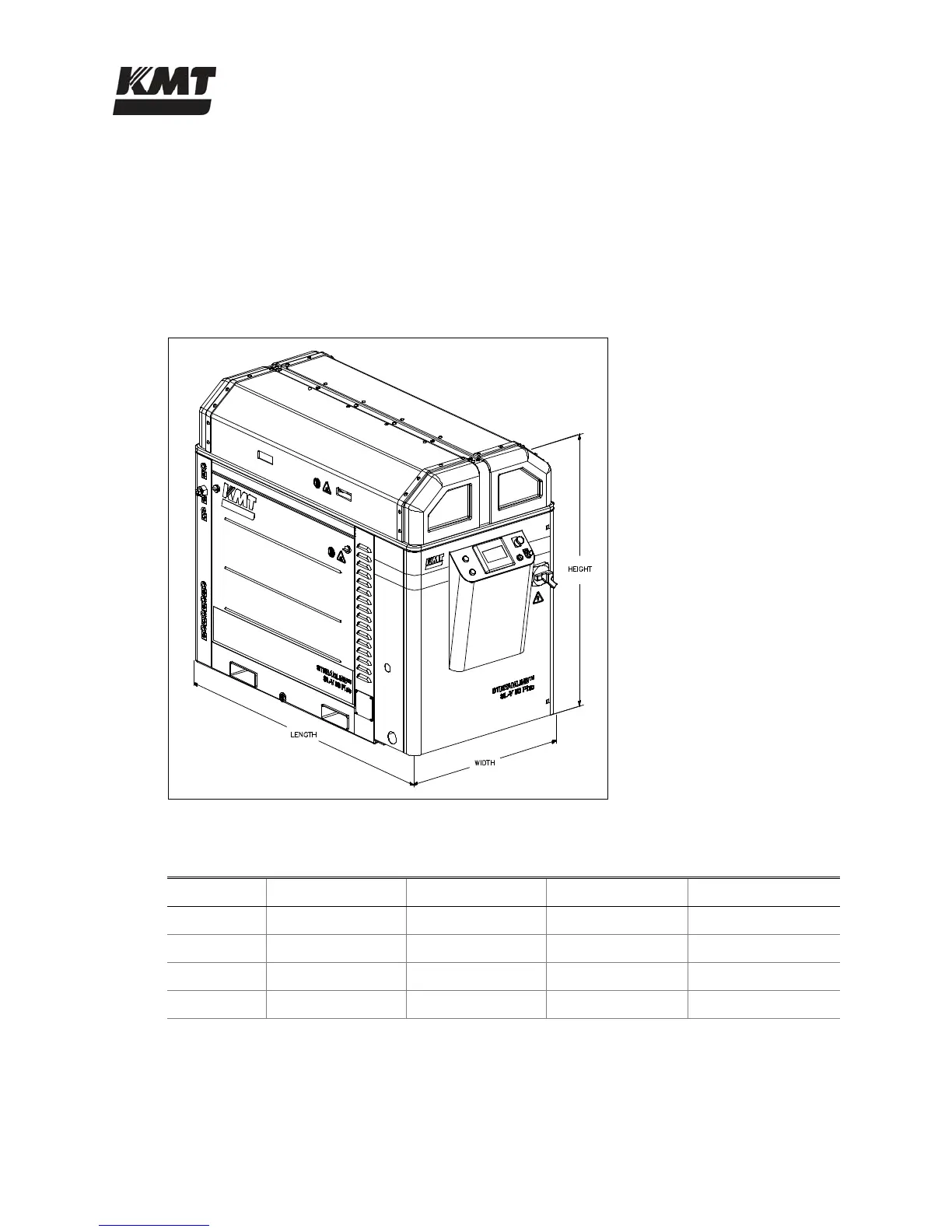

Figure 2-1: Equipment Dimensions
Table 2-1
Equipment Dimensions and Weight
Horsepower Length Width Height Weight
30 HP 67.98” (1,727 mm) 36.00” (914 mm) 57.19” (1,453 mm) 1,920 lbs (870 kg)
50 HP 67.98” (1,727 mm) 36.00” (914 mm) 57.19” (1,453 mm) 2,720 lbs (1,234 kg)
60 HP 67.98” (1,727 mm) 36.00” (914 mm) 57.19” (1,453 mm) 3,220 lbs (1,460 kg)
100 HP 77.75” (1,975 mm) 36.00” (914 mm) 57.19” (1,453 mm) 4,200 lbs (1,905 kg)
