4.11 Alarm Banners
When a shutdown condition occurs an Alarm Banner will appear over the current screen. The
banner displays the type of shutdown and lists possible remedies. Potential remedies are listed in
order of most to least probable.

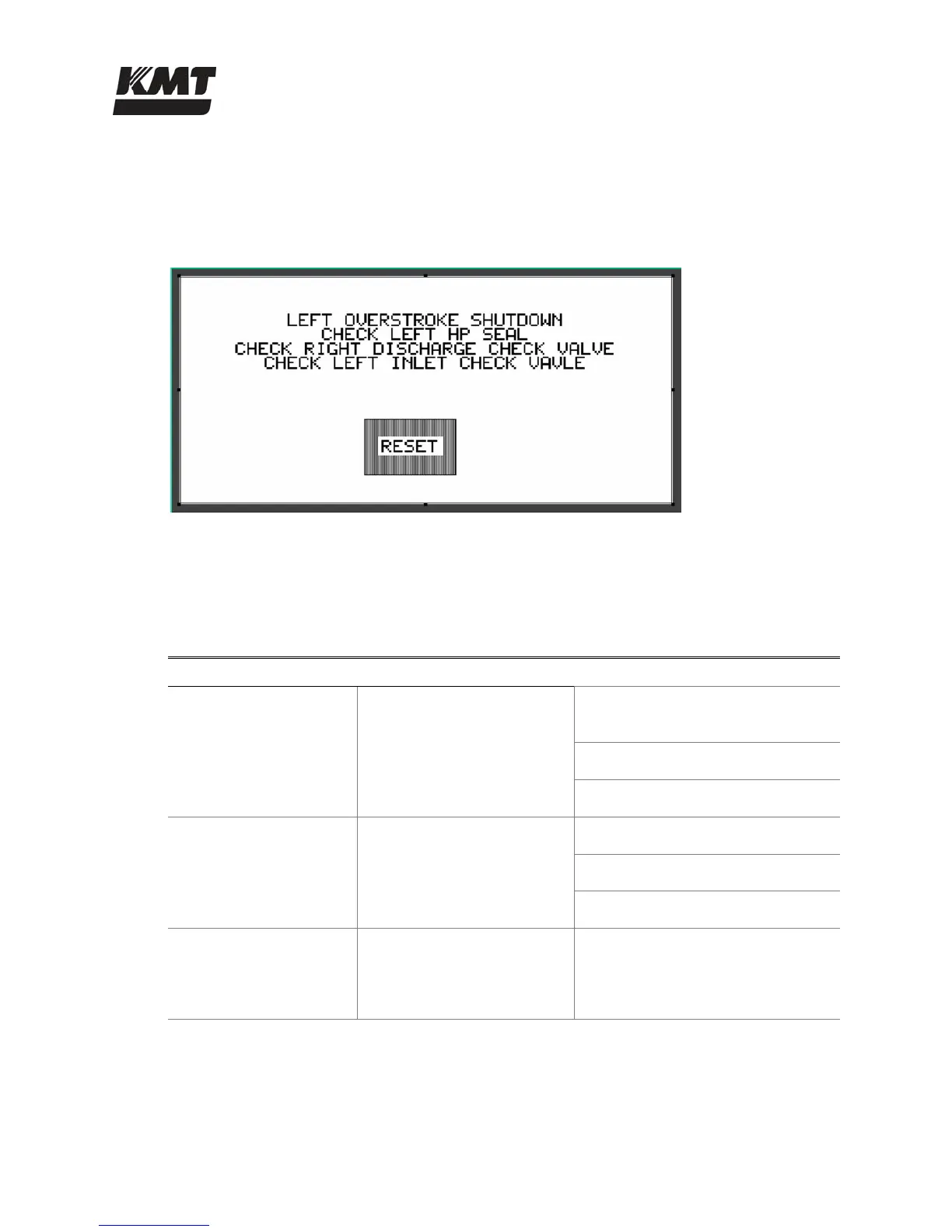

Figure 4-15: Alarm Banner
Pressing the RESET button will clear the alarm banner, but it will not clear the fault. The banner
will continue to display until the fault is corrected. Shutdowns will appear on the Alarm History
Screen. Alarm banner shutdowns are listed in Table 4-4.
Table 4-4
Alarm Banner Shutdowns
Alarm Indication Possible Remedies
Booster Temp High High booster water temperature Check bleed orifice in low pressure
water manifold
Check for long idle times
Check the inlet water switch
Left Overstroke Shutdown A left overstroke condition has
occurred
Check left HP seal
Check right discharge
Check left inlet check valve
Long Idle Time Shutdown Intensifier has run in a
deadhead condition for the
operator adjusted time limit
(5 to 60 minutes)
