KMT Streamline SL-V 30 Plus - Page 94

Section 8
Electrical System
20412989
1-2012/Rev 08
8-3
Softstarters combine contactors, overload, timers and internal power/control wiring into a single
device. They utilize a current limit starting method to greatly reduce mechanical and electrical
shock to the system.

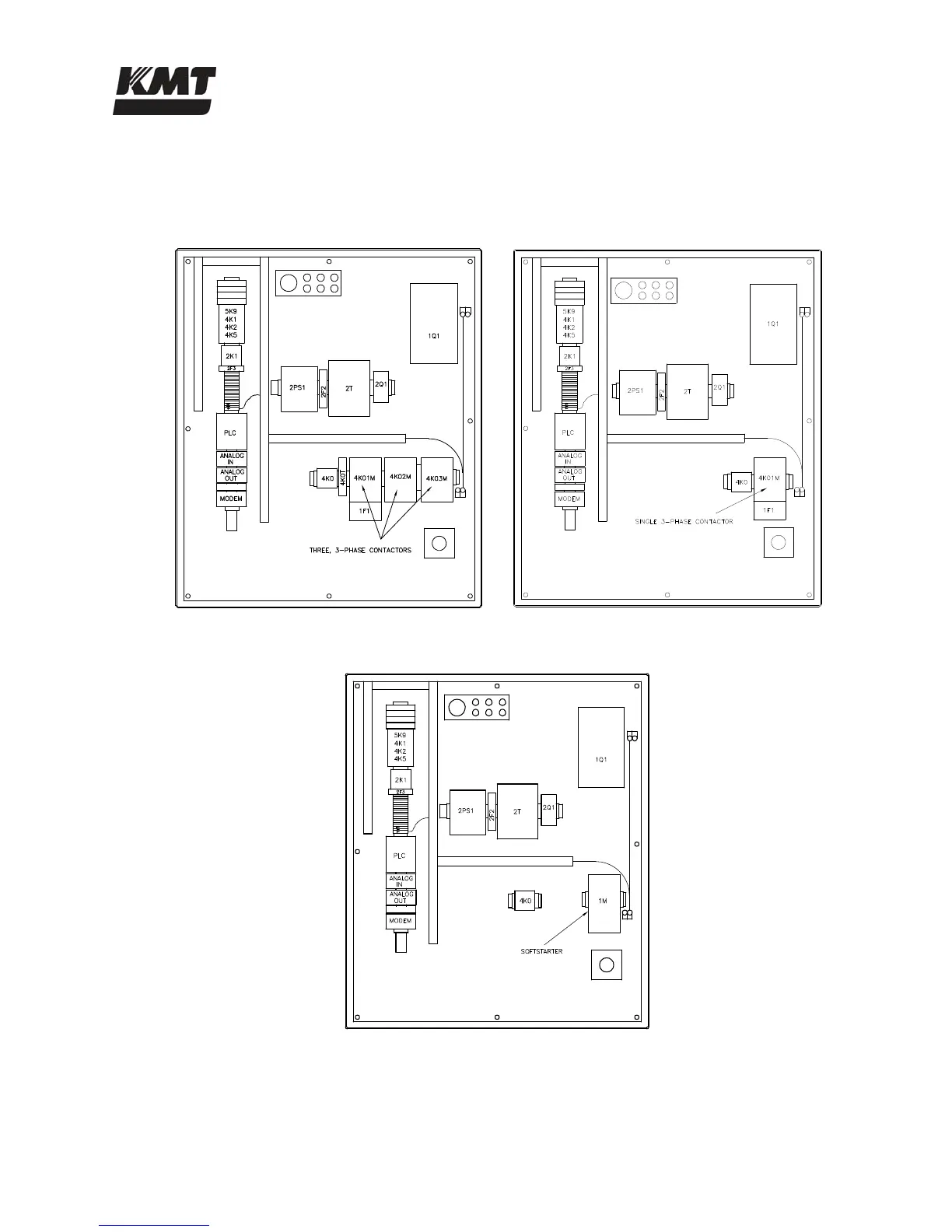

Figure 8-2: Wye-Delta Configuration Figure 8-3: Across-the-Line Configuration
Figure 8-4: Softstart Configuration
