Panoramic Acquisition Window Overview
The Panoramic Acquisition Window is the main panoramic interface with the Kodak 9000
3D extraoral imaging system that provides you with imaging acquisition functions.

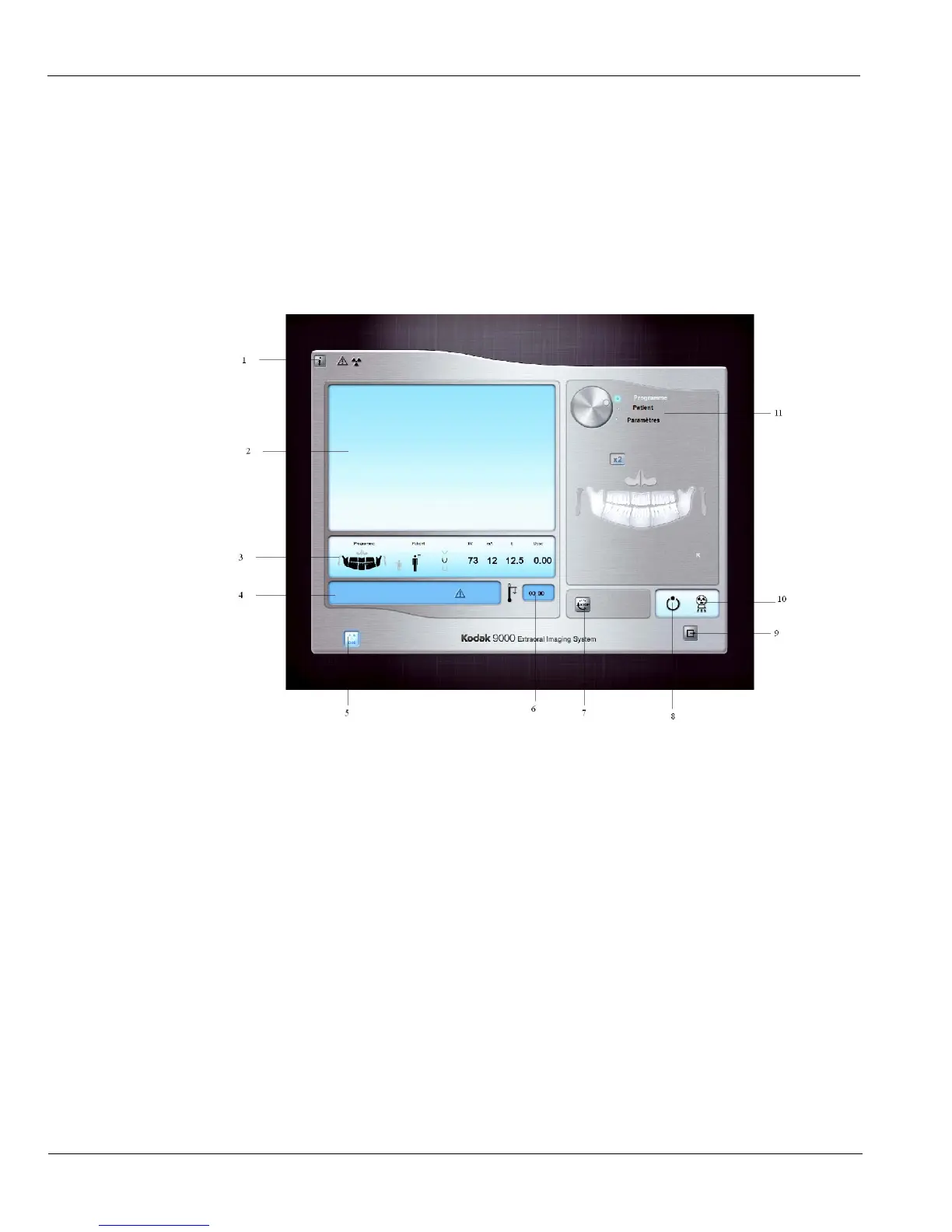

Figure 3–7 Panoramic Acquisition Window
1 Information button: identifies:
• Unit serial number
• Software version
• The default parameters set by the manufacturer
2 Preview Screen: Displays the acquired image in real time.
3 Selected Parameter Display: Displays the current acquisition parameter settings.
4 System Status Screen: Displays various alert or warning messages originating from the Unit.
5 X-Rays ON / OFF button: Turns off the x-ray emissions to demonstrate the acquisition process for
the patient.
6 Generator Cooling indicator: Indicates the automatic cooling time (mm:ss) required for the
generator to reach 0 for a new acquisition.
7 Stop button: Stops the Unit rotative arm movement
