Acquisition Interface Module
KODAK 9000 3D Extraoral Imaging System_User Guide (SM710)_Ed 01 3–19
3D Acquisition Window Overview
The 3D Acquisition Window is the main 3D interface with the Kodak 9000 3D extraoral
imaging system that provides you with imaging acquisition functions.

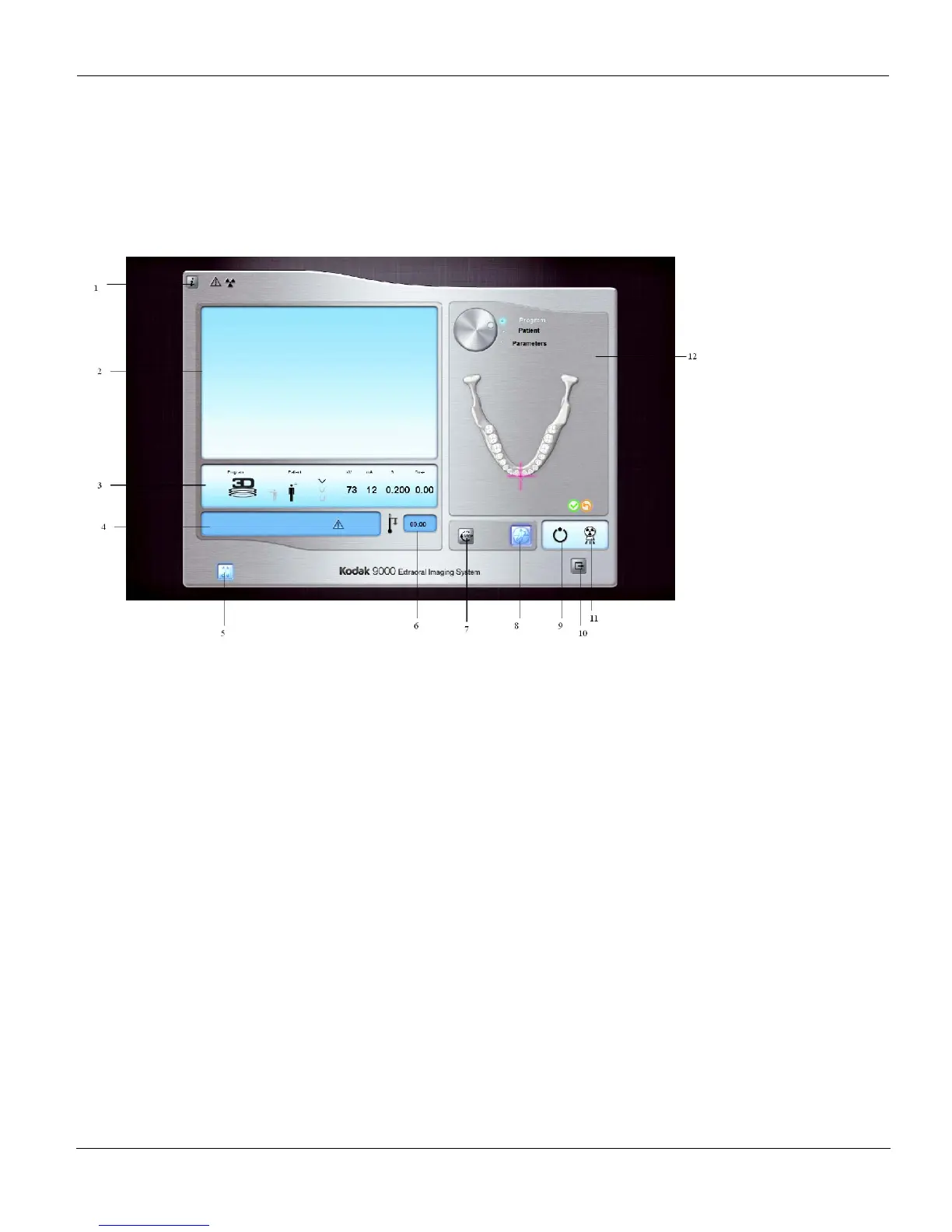

Figure 3–11 3D Acquisition Window
1 Information button: identifies:
• Unit serial number
• Software version
• Default parameters set by the manufacturer
2 Preview Screen: Displays the acquired image in real time.
3 Selected Parameter Display: Displays the current acquisition parameter settings.
4 System Status Screen: Displays various alert or warning messages originating from the Unit.
5 X-Rays ON / OFF button: Turns off the x-ray emissions to demonstrate the acquisition process for
the patient.
6 Generator Cooling indicator: Indicates the automatic cooling time (mm:ss) required for the
generator to reach 0 for a new acquisition.
7 Stop button: Stops the Unit rotative arm movement.
8 Pre-shoot button: Pre-acquires test images for correct selection of region of interest.
9 Ready Indicator LED:
• Green indicates the Unit is ready to start acquisition
• Black indicates the Unit is not ready to start acquisition
