Kodak 9000 - KODAK 9000 3 D Digital Imaging Unit Overview; Functional Overview

KODAK 9000 3D Extraoral Imaging System_User Guide (SM710)_Ed 01 2–1
Chapter 2
KODAK 9000 3D DIGITAL IMAGING UNIT
OVERVIEW
The KODAK 9000 3D digital imaging unit is compliant with the requirements of the EEC and
international medical standards.
The KODAK 9000 3D Unit has been designed to carry out the following radiological
examinations:
• Panoramic
• Maxillary Sinus
• Temporomandibular Joints (TMJ)
• 3D images
The KODAK 9000 3D Unit is composed of the following functional components:
• Control Panel
• Remote Control
Functional Overview
The following figures illustrate the components of the KODAK 9000 3D Unit.

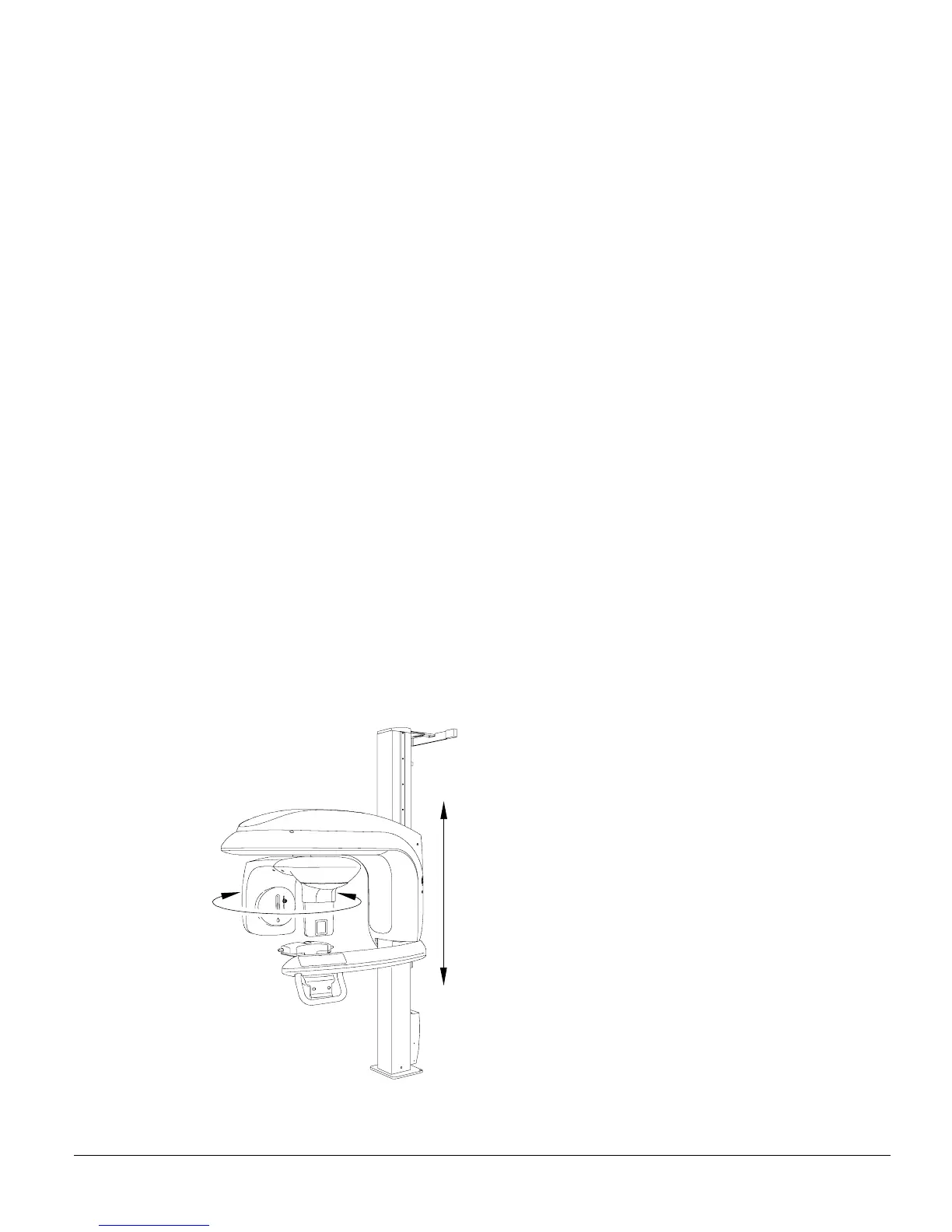

Figure 2-1 illustrates the up and down movement of the Unit mobile component and the 180°
rotation of the rotative arm.
Figure 2–1 KODAK 9000 3D Unit mobile components
