Panoramic Program Pane
The Panoramic Program pane enables you to choose different radiological exams. The
diagram in the Panoramic Program pane represents a jaw, with the right side of the diagram
corresponding to the right side of the patient. Click on a section of the jaw to select an
anatomical zone for radiological exam. The selected segment is highlighted.

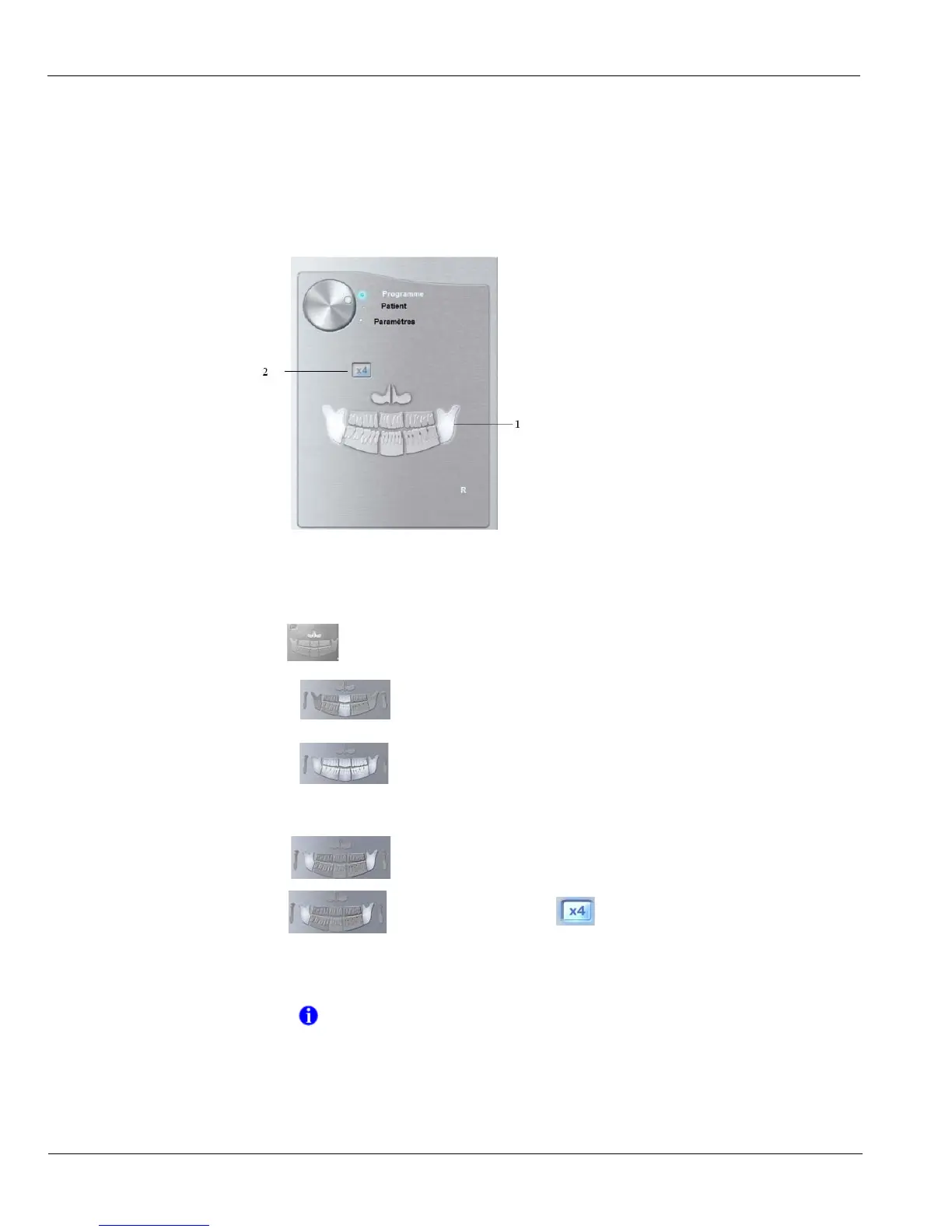

Figure 3–8 Panoramic Program Pane
1 Radiological exam options:
Click for a Maxillary Sinus exam.
Click
for an anterior exam.
Click for a Panoramic exam.
2
TMJ exam options:
Select for a TMJ x2.
Select for a TMJ x4 exam and click .
NOTE
The above list of exam types are only a sample of exam options of the
Program pane.
