Acquisition Interface Module
KODAK 9000 3D Extraoral Imaging System_User Guide (SM710)_Ed 01 3–21
3D Program Pane
The 3D Program pane enables you to choose different radiological exams. The diagram in
the Program pane represents the jaw.

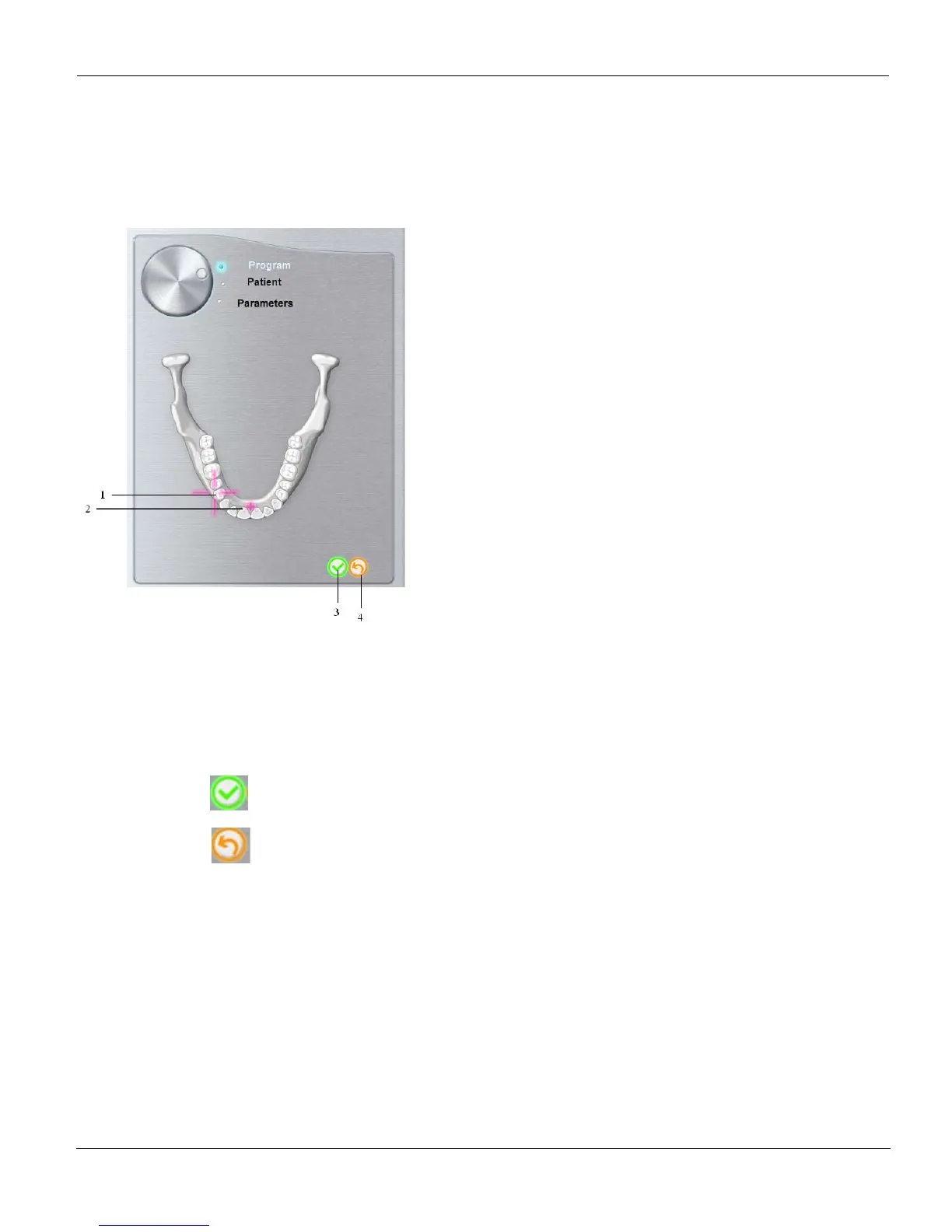

Figure 3–12 3D Program Pane
1 Manual Selection Indicator: Enables you to select the region of interest
manually.
2 Rotative Arm Position Indicator: Indicates the rotative arm position, using the
3D central positioning laser beam.
3
Click to validate the region of interest selection.
4
Click to cancel the region of interest selection.
