Kodak DirectView CR 825 Theory Guide

THEORY GUIDE Logic and Control
10DEC05
TG4825-1
Page
102 of 120

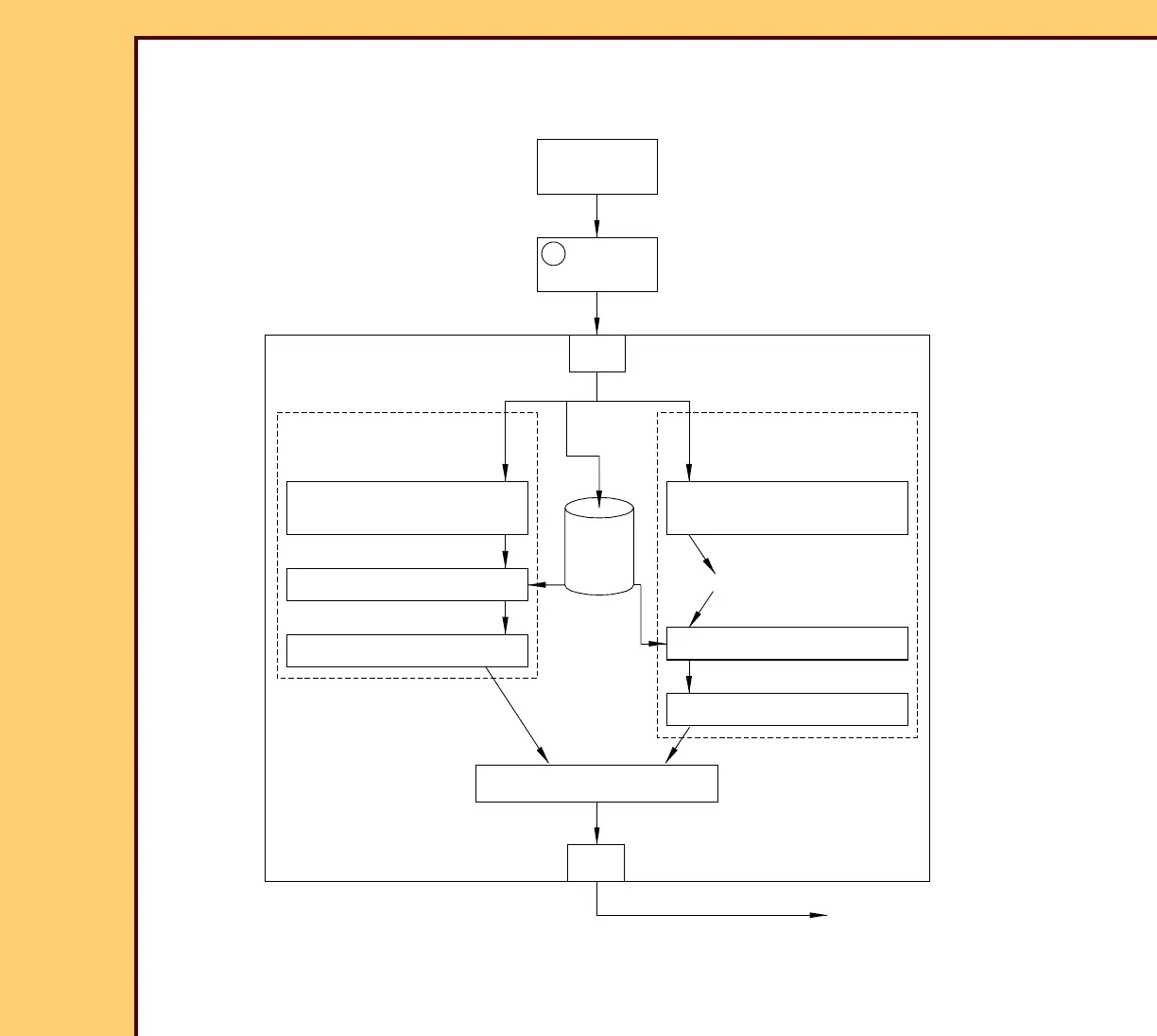

Distribution of Images to the Network
Overview
Scanning/Input
Components
MCPU BOARD
A2
Ethernet images/commands
D;\images\raw_inbox-
contains raw image files
File names for image files:
yyyy.mm.dd.hh.mm.ss_xxxxxxxxxx.raw
D;\images\delivery_inbox
D;\images\routing_inbox
Pass-Through Mode
D;\images\raw_inbox-
contains raw image files
D;\images\delivery_inbox
D;\images\routing_inbox
QA Mode
Operator presses "ACCEPT"
Medical Image Manager (MIM)
NIC
NIC
to hospital network
Ethernet
or
DDS
Database
INTERNAL PC
H194_5050DC
