THEORY GUIDE Optical
10DEC05
TG4825-1
Page
54 of 120
Section 6: Optical

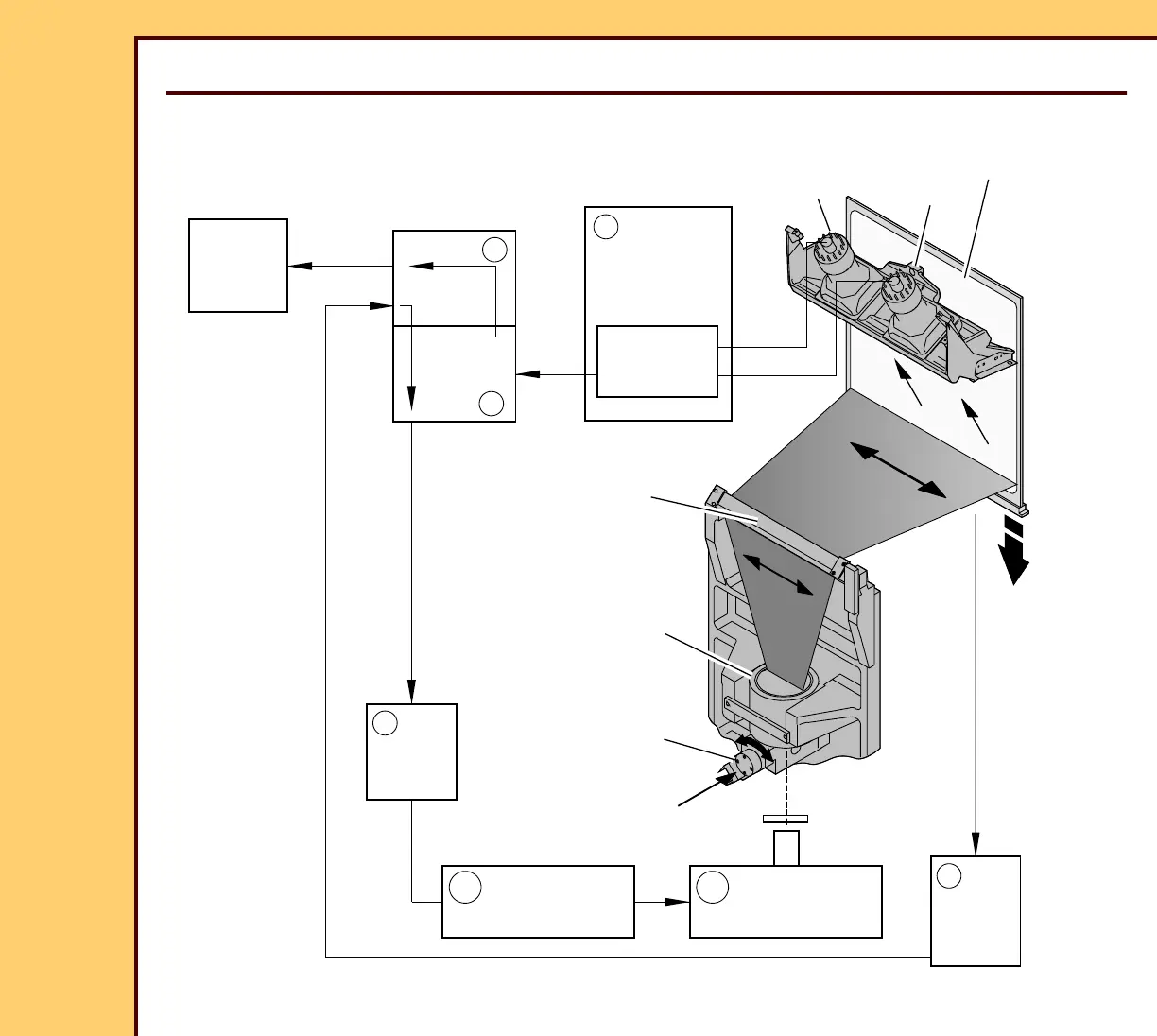

Overview
blue
light
MSC
BOARD
A1
DRIVER BOARD
LASER DIODE
A17
GALVO
BOARD
A4
DIGITIZER
BOARD
A3
MCPU
A2
BOARD
PC
INTERNAL
motion
commands
A/D
CONVERTER
A5
PMT/DAS
BOARD
digital
data
analog
image data
red
laser
light
H194_5045DC
LASER
PRE-REGULATOR
LASER DRIVER
A18
BOARD
H194_5045DCA
SCREEN
COLLECTOR
PMTs
FOLD MIRROR
F-THETA LENS
GALVO
