Using and Maintaining the Imager
Opening Air Intake
Door
The air intake door allows access to the electronics filter and the manual
override for the drawers and main door. To open this door pull down on it.
Film Drawers and
Main Door Manual
Override Latch
If the Laser Imager is shut down or if the Door Unlock screen fails to open the
drawers or door, use the manual override latch located at the lower right
front of the imager behind the air intake door.
To manually open the drawers or main door:
1. Open the air intake door.
2. Pull up on and hold the latch release.
3. Pull the drawer out or the main door open.

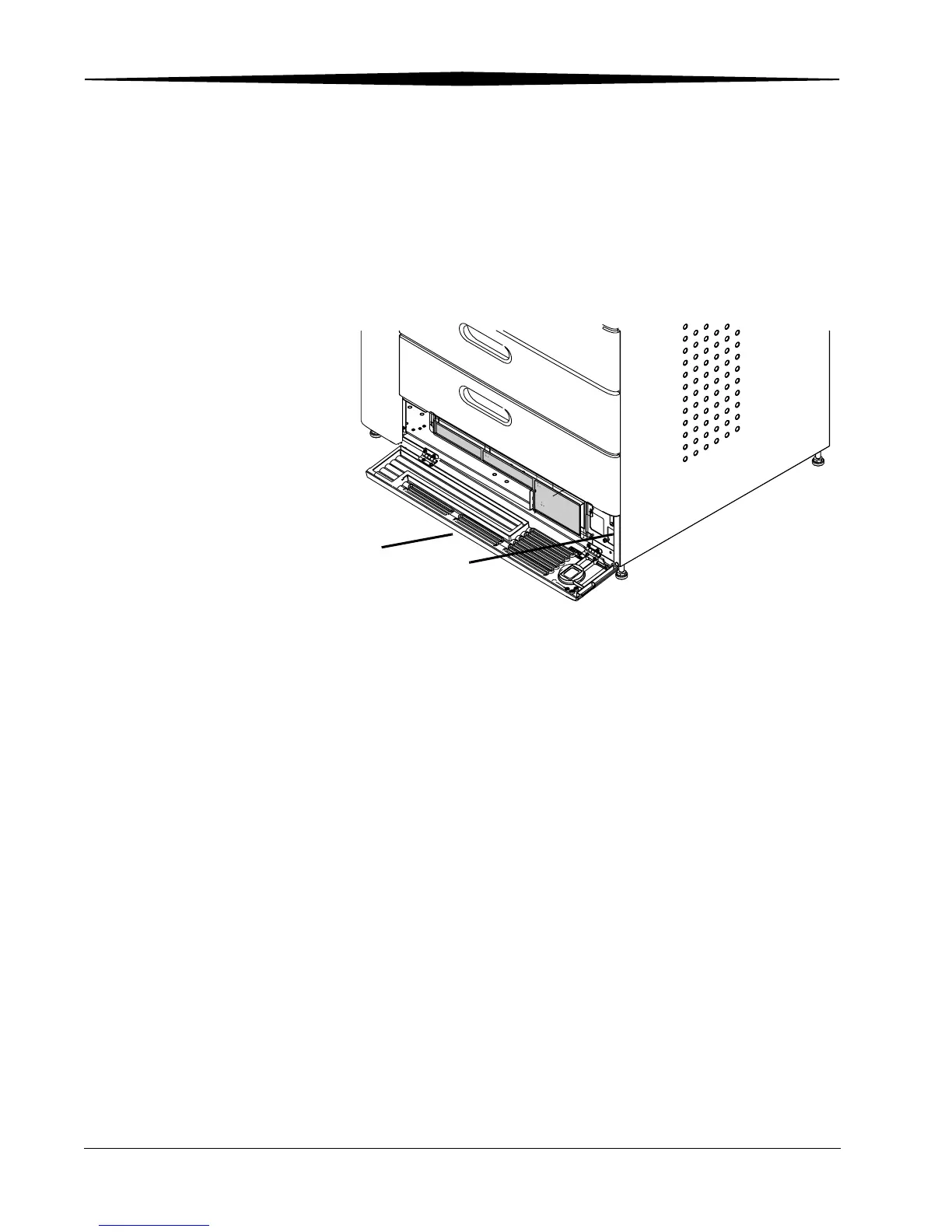

Air intake
door
Override
latch
