3-4 Scheduled Maintenance TP-5648 8/93
1. Place a containerbelow the oildrain and openthe
oil drain valve. See Figure 3-2. Allow sufficient
timeforthe oldoiltodraincompletely.Close theoil
drain valve. Dispose of used engine oil in an
environmentally safe manner. Take used oil to a
suitable collection facility in your area. DO NOT
POUR USED OIL ON THE GROUND, DOWN
SEWERS, OR INTO STREAMS OR OTHER
BODIES OF WATER.
1

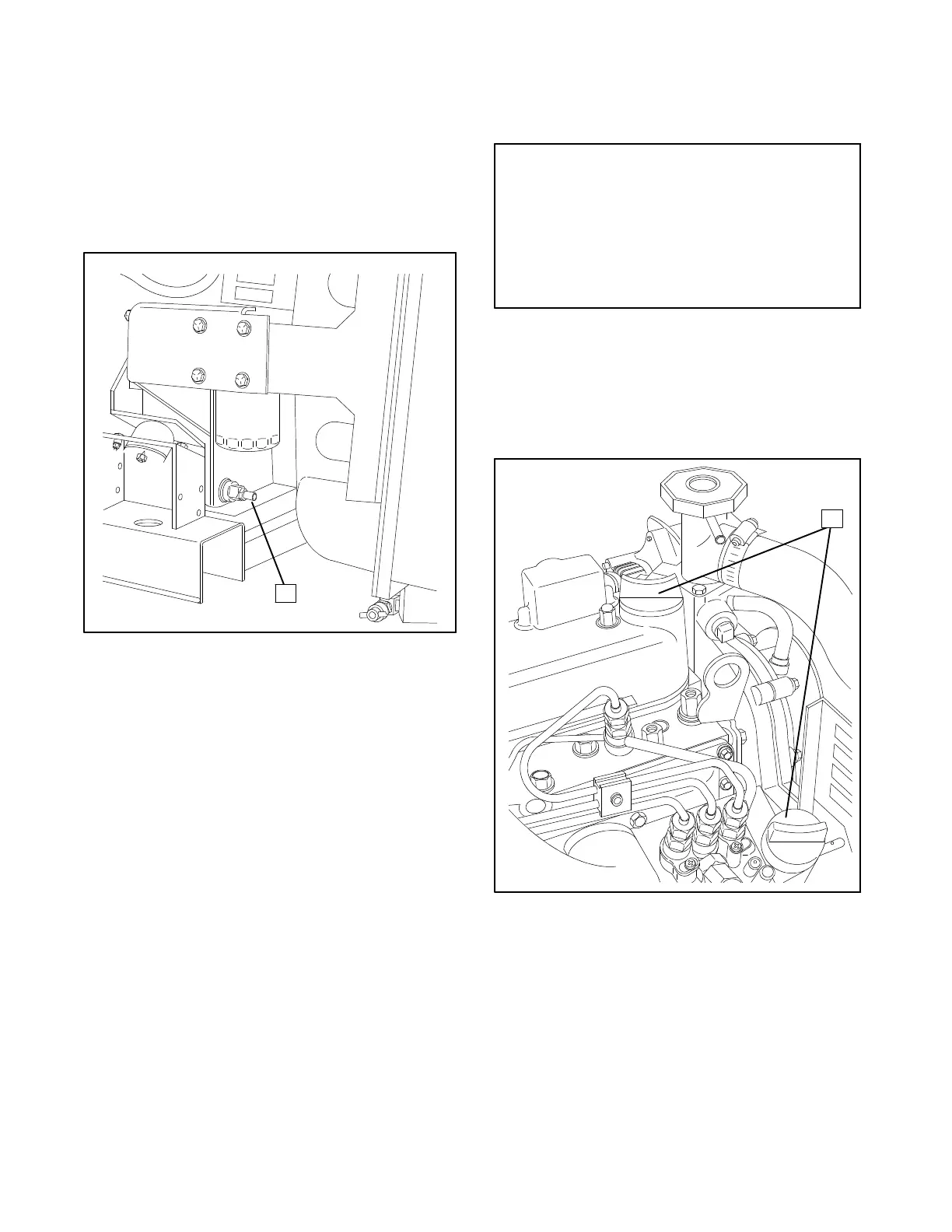

1. Oil Drain
Figure 3-2. Oil Drain Location
2. Remove either oil fill cap. One is located on the
rocker arm cover and one is located near the fuel
injector pump. See Figure 3-4.
3. If the engine oil filter is to be replaced, see “Oil
Filter” following.
4. Fill crankcase with proper amount and type of oil,
see Figure 3-1 and Figure 3-3.
5. Replace oil fill cap. Start the generator set and
check for oil leaks.
6. Stop the generator set. Remove the dipstick and
wipe clean, reinsert as far as possible, and
removetocheckoillevel.Addoil,asnecessary,to
bring level up to MAX mark.
10CCOZ 6.3 (6.0). . . . . . . . . . . . . . . . . . .
OIL CAPACITY
(with Filter)
qts. (L)
Figure 3-3. Oil Capacity
NOTE
Too high an oil level causes increased oil
consumption and carbonizing of the engine. Low
oil level will cause engine damage.
1-932
1
1. Oil Fill
Figure 3-4. Oil Fill Locations
To Next Page
