3-14 Scheduled Maintenance TP-5648 8/93
Seal End Bracket to
Compartment Wall or
Duct
Seal Radiator
to Compartment Wall

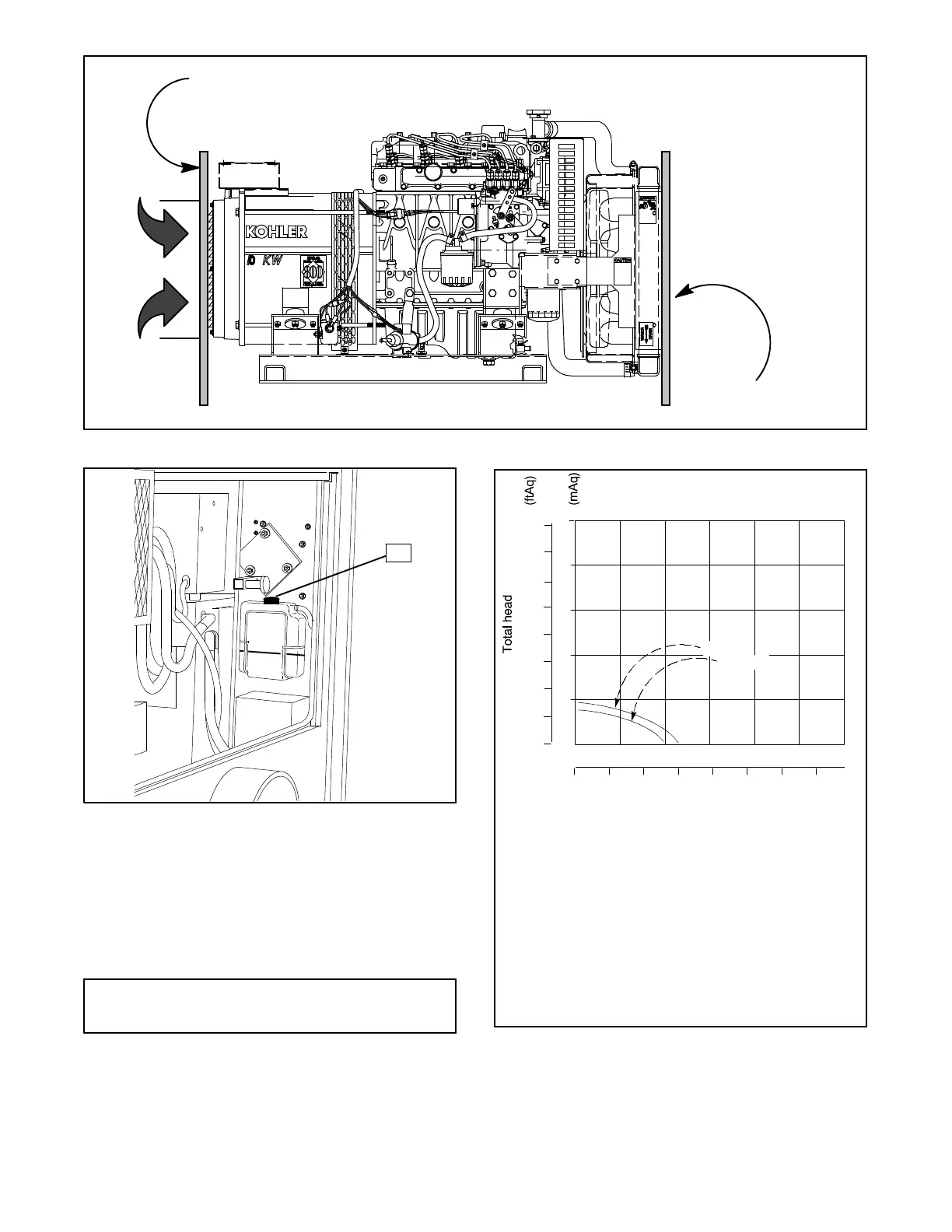

Figure 3-11. 10CCOZ Air Flow Direction Using Push Fan
1
1. Coolant Fill
Figure 3-12. Cooling System Fill
(Coolant Recovery Tank)
10CCOZ Inline Radiator 5.1 qts. (5.4 L)
Figure 3-13. Coolant Capacity
5
4
3
2
1
00
2
4
6
8
10
12
14
16
0 10 20 30 40 50
0 2 4 6 8 10 12 14
Discharge (U.S.gas/min.)
(L/min.)
10CCOZ Water Pump RPM @ 1800 is 1840 RPM
10CCOZ Water Pump RPM @ 1500 is 1533 RPM
1840 RPM
1533 RPM
10CCOZ is 56,500 Btu/Hr
Heat Rejection To Cooling Water:
Figure 3-14. Water Pump Flow Rates
and Engine Heat Rejection Values
