10-2 Common Hardware TP-5648 8/93
Steps for common hardware application:
1. Determine entry hole type: round, or slotted.
2. Determine exit hole type: fixed female thread (weld nut), round, or slotted.
For round and slotted exit holes, determine if hardware is greater than 1/2 in. in
diameter, or 1/2 in. in diameter or less. Hardware that is greater than 1/2 in. in diameter
takes a standard nut and SAE washer. Hardware 1/2 in. or less in diameter can take a
properly torqued whiz nut. See the diagram below.
3. Follow these SAE washer rules after determining exit hole type:
a. Always use a washer between hardware and a slot.
b. Always use a washer under a nut (see 2. above for exception).
c. Use a washer under a bolt when the female thread is fixed (weld nut).
4. Refer to the diagram below, which depicts the preceding hardware configuration possibilities.
Entry Hole Types
Exit Hole Types
Weld Nuts
Whiz Nut:
Up To And Including
1/2 in. Dia. Hardware
Standard Nut
And SAE washer :
Greater Than 1/2 in.
Dia. Hardware
Cap Screw

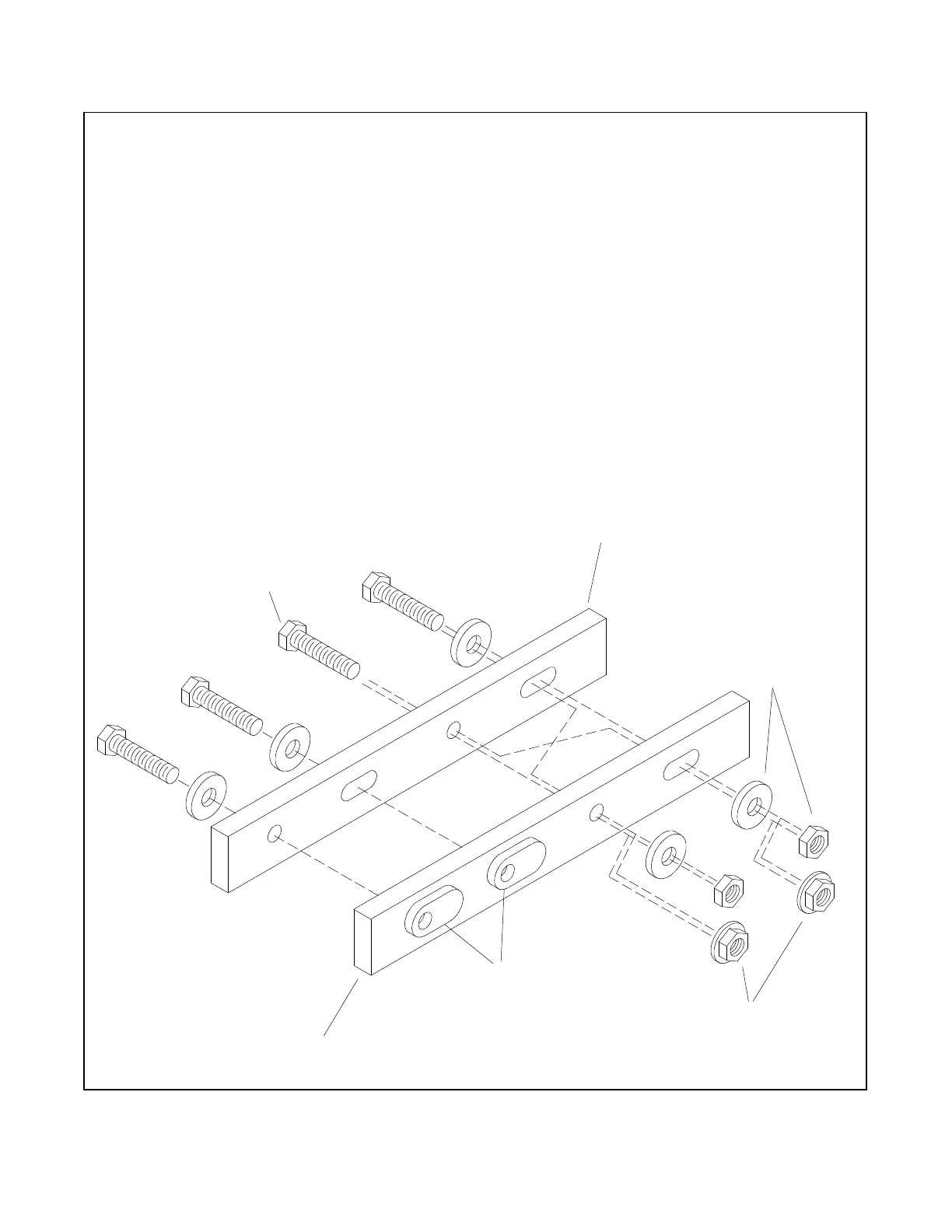

Common Hardware Application (G-585)
Figure 10-2. Acceptable Hardware Combinations
