TP-5606 6/02 Operation 2-7
Remote Panels
(Optional)
Remote Start Panel
Allows starting/stopping from a location remote of the
generator set. Supplied with 15 ft. (4.6 m) connection
harness. Overall mounting dimensions are 4.06 in. (103
mm) by 2.12 in. (54 mm). Generator sets are equipped
with a 6-pin connector on controller for connection of the
kit. See Figure 2-6 and Figure 2-7.
TT-872

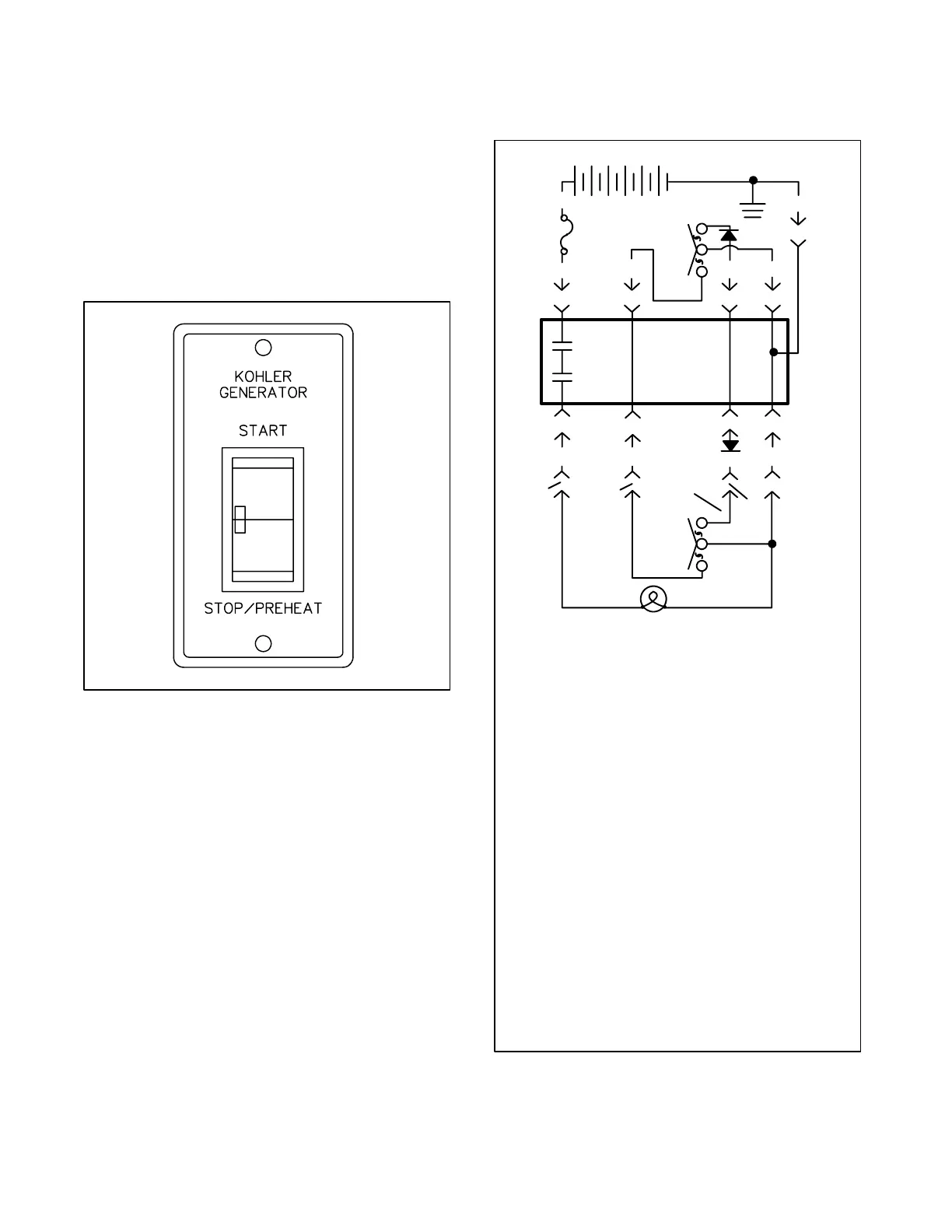

Figure 2-6. Remote Start Panel
Start
P
P
K1
53(70) 3(47)
2(43)
4(N)
Gen. ‘ON’
Light
Remote
Switch
P3-4
(P3-5)
P3-5
(P3-6)
P3-1
P2-3
P2-7
P2-8
P2-9
K2
P1-14
3(47)
P2-4
2(43)
P2-5 P2-6
4(N)
P1-9
N
+-
Relay
Circuit
Board
Local
Switch
Violet
Black
Grey/
Black
Start
10 A.
Fuse
P3-2
(P3-4)
NOTE
Remote Start Panel harness is not
color coded. Lead 2(43) connects to
J3-6. Lead 3(47) connects to J3-5.
Lead 4(N) connects to J3-1. Lead
53(70) connects to J3-4. Color
coded leads used on remote
harnesses only.
Stop/Preheat
Stop/
Preheat
NOTE
When the Start-Stop/ Preheat
Switch is in the Start position,
contacts 3 and 4 are closed.
TT-872
Yellow/
Red
NOTE
Wire and pin numbers for
single-phase systems may differ
from those for three-phase systems,
where they are different, the
single-phase numbers are shown
first followed by the three-phase
numbers in parentheses.
Figure 2-7. Remote Start Panel Kit
