TP-5606 6/02 Scheduled Maintenance 3-9
Air Cleaner Service
The paper element should be replaced at 300-hour or
6-month intervals; change more frequently if operating
under dirty, dusty conditions. Operating the set with a
dirty air cleaner element may cause engine damage and
increased fuel consumption. At the time of service,
clean the air cleaner breather pipe and remove all dust
and foreign matter from the air cleaner housing. See
Figure 3-9 and refer to the following procedure.

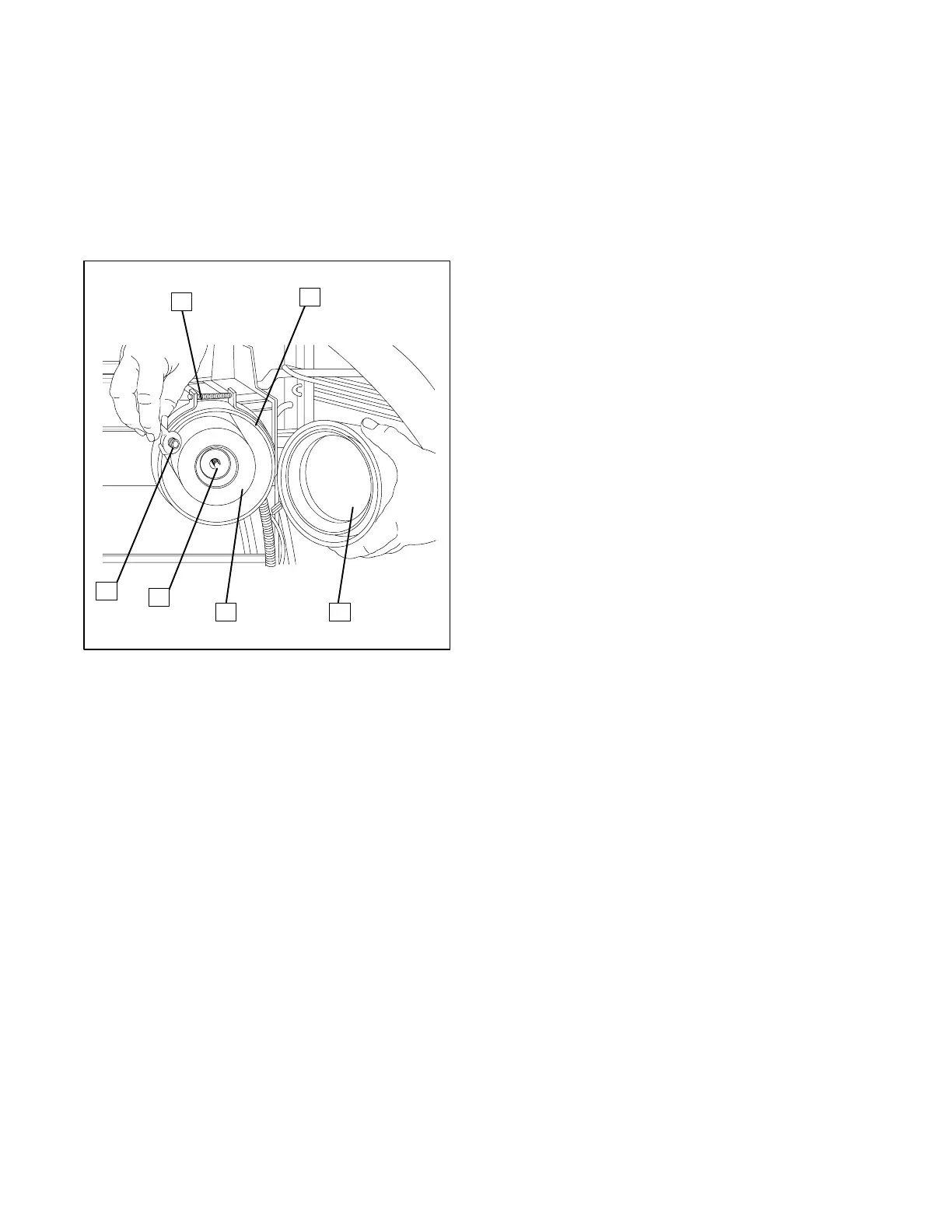

1-932
1. Eyebolt/Clamp
2. Base
3. Cover
4. Element
5. Threaded Rod
6. Wing Nut
1
2
34
5
6
Figure 3-9. Air Cleaner Components
1. Loosen eyebolt and clamp enough to remove the
air cleaner cover.
2. Remove wing nut and slide air cleaner element
from the threaded rod.
3. Clean dry element by tapping edges on a hard
surface. Replace if damaged or very dirty.
NOTE
Do not attempt to clean dry-type element in any
liquid or with compressed air as this will damage
paper filter material.
4. Wipe dirt or dust accumulation from cover and
base. Check that all clamps are tight on inlet/outlet
connections.
5. Install air cleaner element on threaded rod. Tighten
wing nut making sure parts fit properly.
6. Position cover with arrow up; place clamp over
base and cover, and tighten eyebolt.
