Kohler 15CCO

TP-5606 6/023-12 Scheduled Maintenance
1. Upper Radiator Hose
2. Hose Clamp
3. Radiator Pressure Cap
4. Radiator Assembly
5. Lower Radiator Hose
6. Radiator Mounting Bracket
7. Vibro Mount
8. Radiator Bracket
9. Engine Mounting Bracket
10. Engine Mounting Bracket
11. Right Belt Guard
12. Top Belt Guard
13. Left Belt Guard
14. Fan Shroud
15. Fan
16. Gasket
17. Thermostat Housing
CM-250000
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
2
To Engine
To
Water
Pump

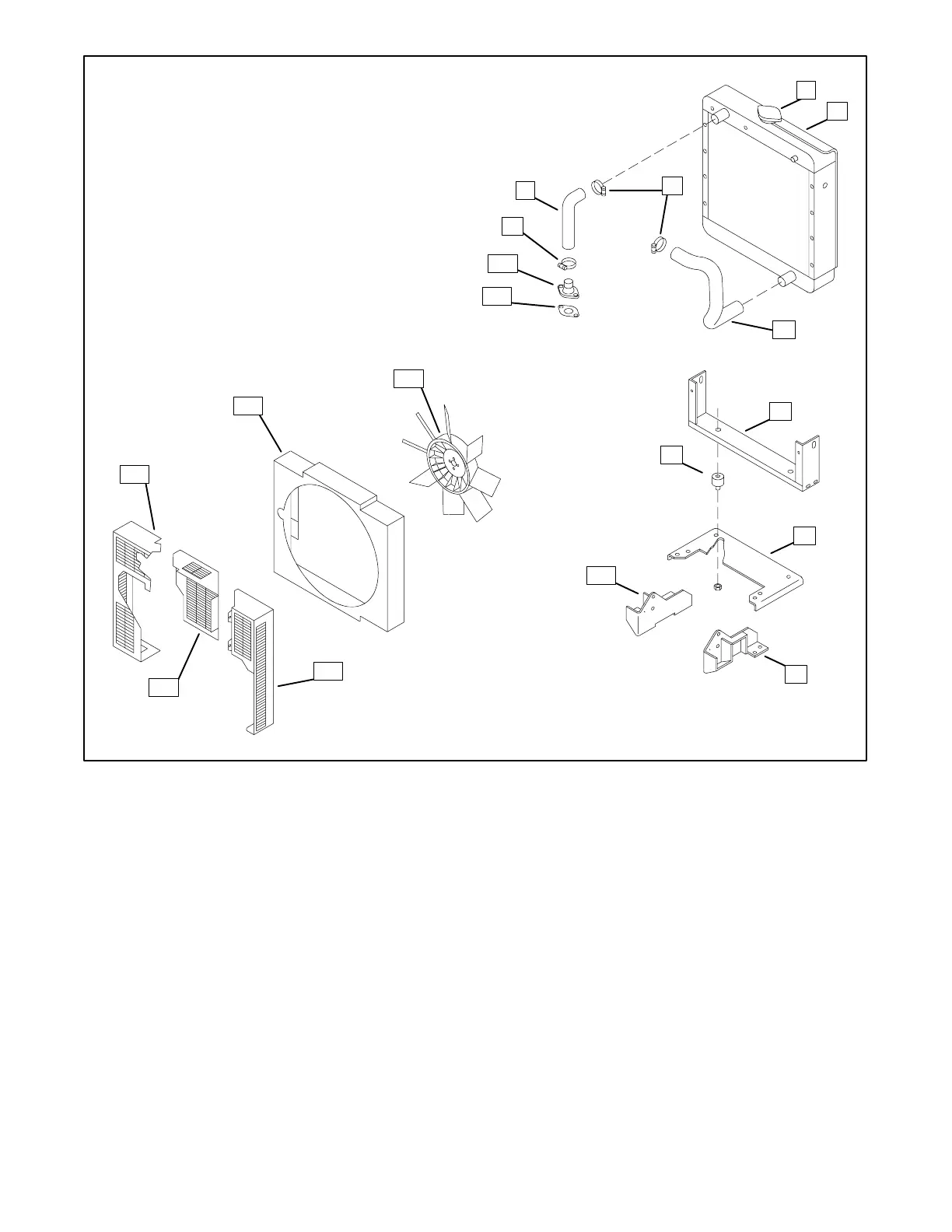

Figure 3-11. In-Line Radiator Cooling System Components
