Reassembly
6562 690 02 Rev. D KohlerEngines.com

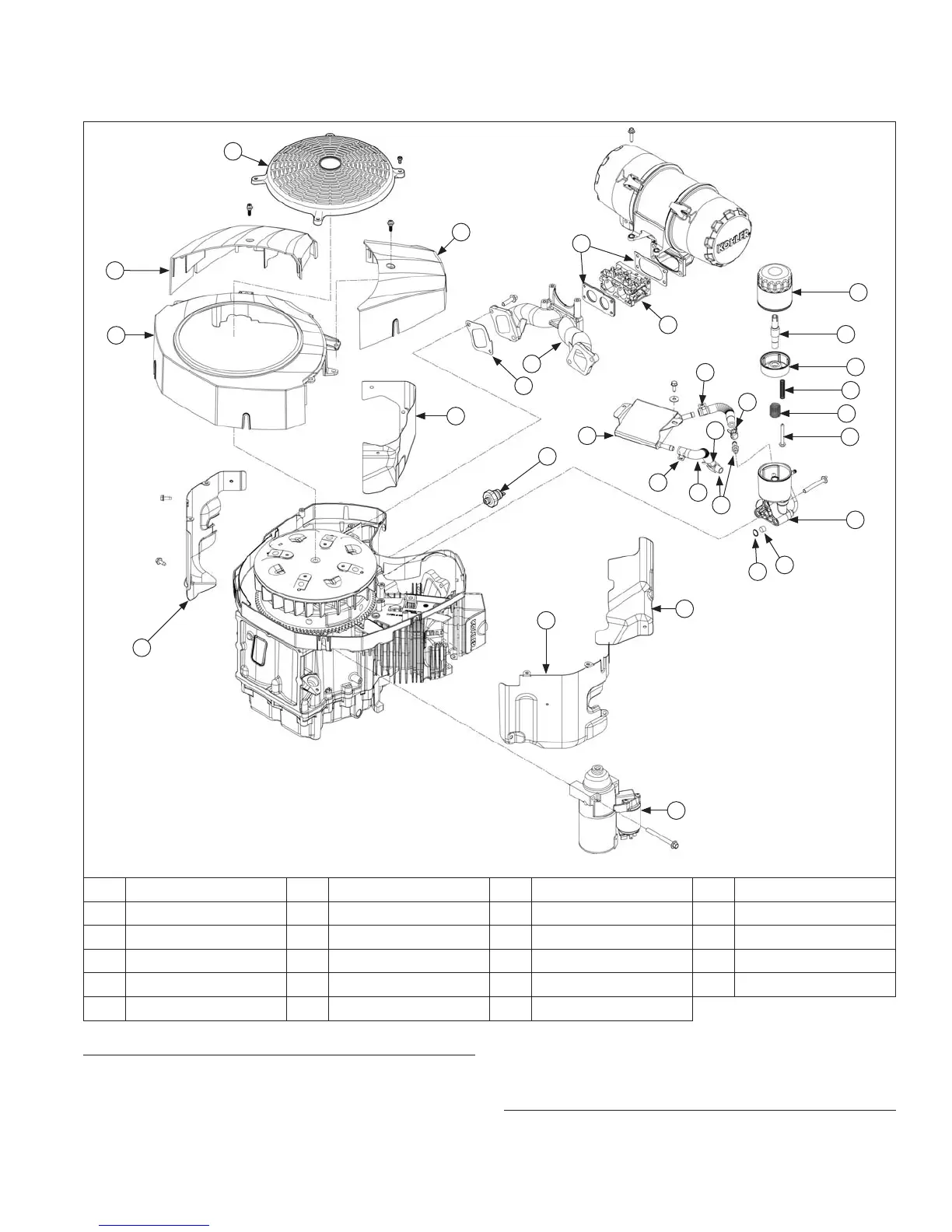

External Engine Components
A
B
T
C
D
M
E
F
G
I
H
J
K
L
K
I
H
N
Q
T
T
T
O
P
R
S
W
U
V
U
A Oil Filter B Oil Filter Nipple C Oil Filter Cup D Valve Spring
E Cup Spring F Valve G Oil Filter Housing H Valley Baffl e
I Outer Cylinder Baffl e J Electric Starter K Cylinder Shroud L Blower Housing
M Fixed Guard N Oil Sentry
™
O O-Ring P Pin
Q Fitting R Oil Cooler S Hose T Hose Clamp
U Gasket V Carburetor W Intake Manifold
Install Outer Cylinder Baffl es
1. Install outer cylinder baffl es. Make sure spark plug
lead is routed through corresponding opening in
each baffl e. Start each screw. Torque M6 shoulder
screws going through backing shroud assembly into
extruded holes in baffl es to 4.0 N·m (35 in. lb.) into
new holes, or 2.0 N·m (18 in. lb.) into used holes.
2. Torque M6 screws going into cylinder head and
crankcase to 10.7 N·m (95 in. lb.) for new holes, or
7.3 N·m (65 in. lb.) for used holes.
Install Oil Cooler
1. Connect hoses between oil fi lter adapter and oil
cooler. Secure with new clamps.
