TP-6126 8/02 53Section 6 Accessories
6126
+
+
----

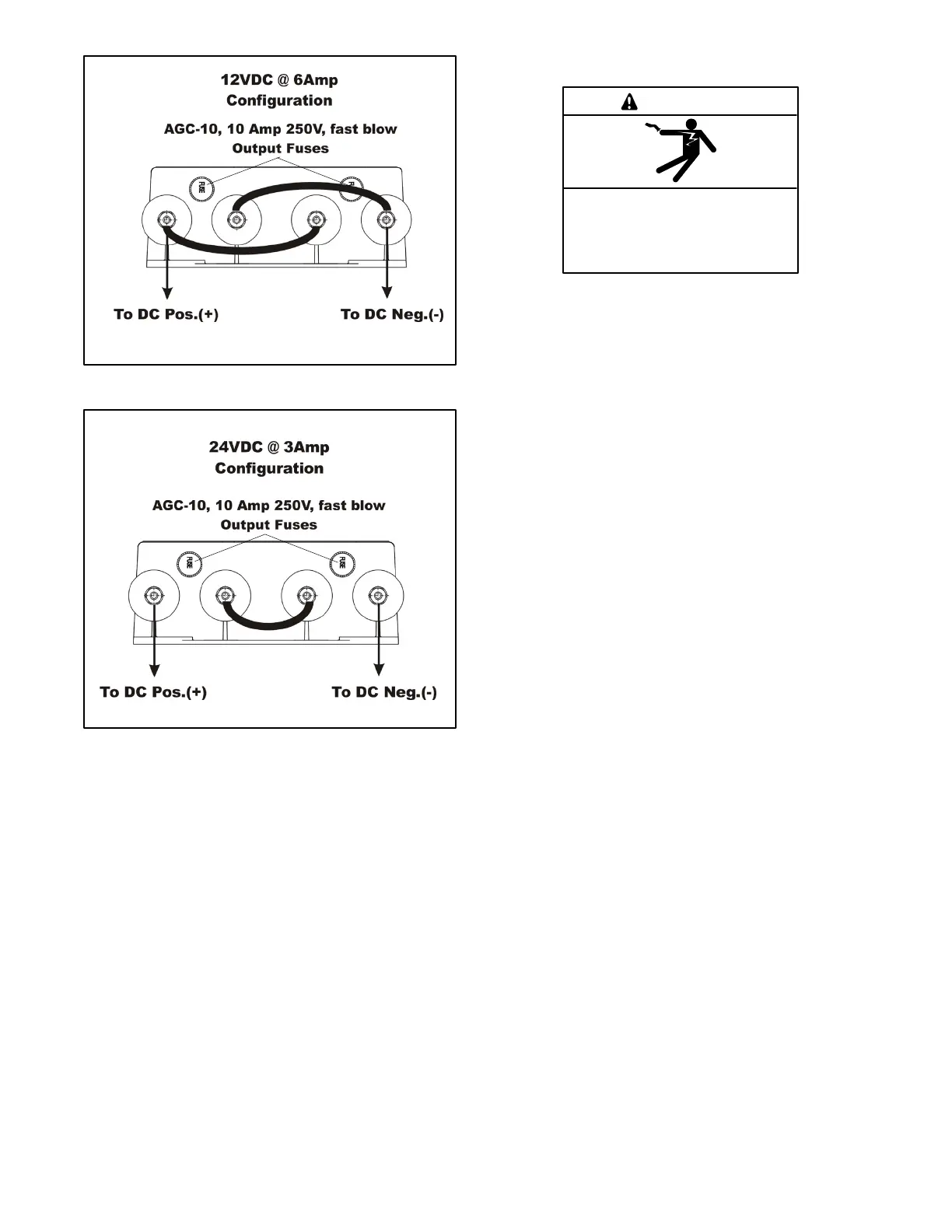

Figure 6 -22 12-Volt Battery Charger Connections
6126
++----
Figure 6 -23 24-Volt Battery Charger Connections
12. Connect the charger to the battery according to the
generator set or battery manufacturer’s
instructions, watching the polarity (+/--) of the
connections.
13. Close the enclosure door and reconnect power to
the transfer switch after the charger connections
are complete.
14. Use a voltmeter to check the voltage at the battery
and compare the readings to Figure 6-25 or
Figure 6-26 to verify charger operation.
Battery Charger Disconnection Procedure
Hazardous voltage.
Will cause severe injury or death.
Disconnect all power sources before
opening the enclosure.
DANGER
1. Before opening the transfer switch enclosure,
disconnect power to the transfer switch by opening
switches or circuit breakers to the transfer switch.
2. Disconnect the AC power cord at the in-line
connector.
3. Remove the black (NEGATIVE) wire from the the
battery terminal first.
4. Remove the red (POSITIVE) wire from the battery
terminal.
