TP-6126 8/02 55Section 6 Accessories
Bulk Absorption Float
(Green LED On)
20
22
24
26
28
30
3 2.5 2 1.5 1 0.5 0.1
DC Amps
Output Voltage To Battery -- VDC
gi267712
(Red LED On) (Red/Green LEDs On)(Red LED On)

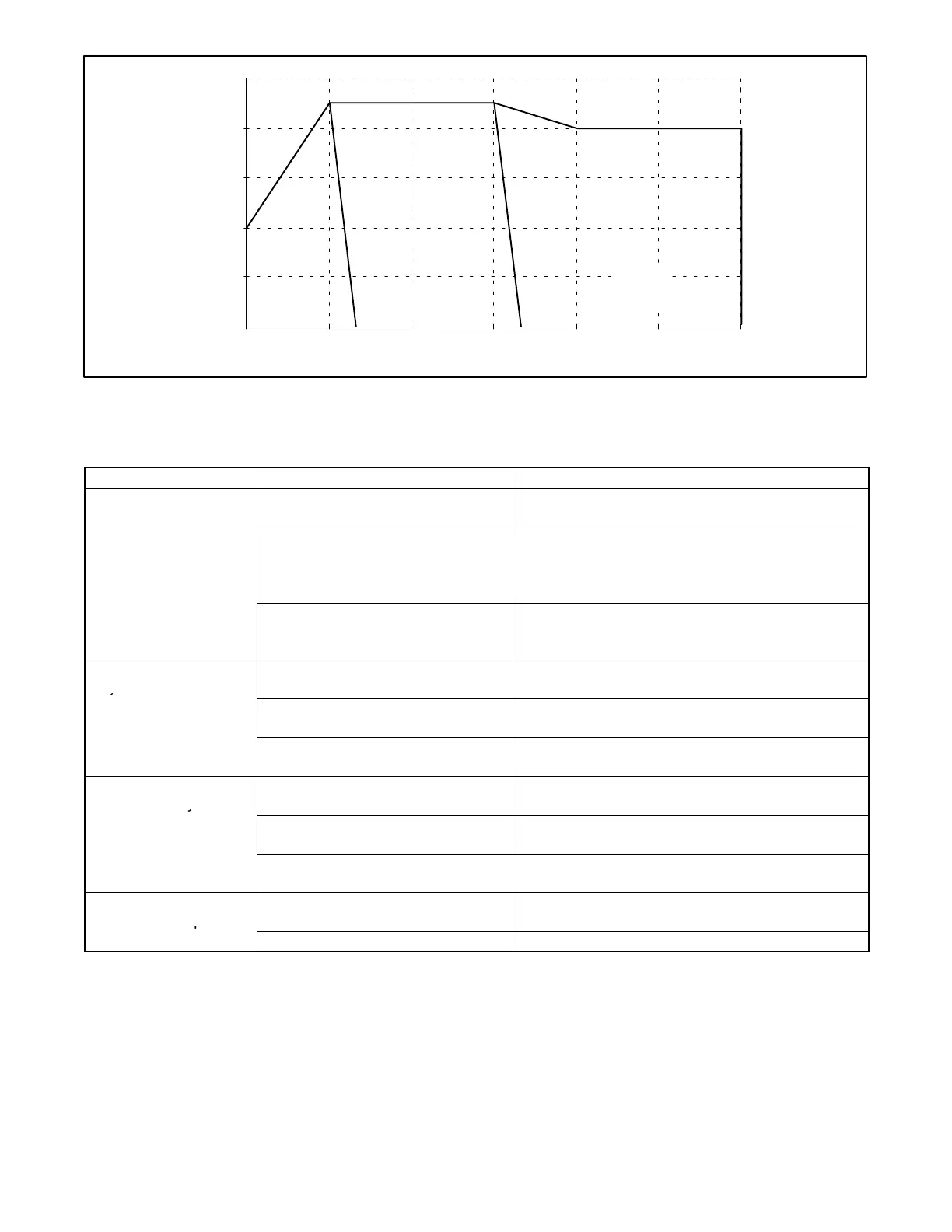

Figure 6 -26 Charging Method, 24 VDC 3 A Configuration
6.8.3 Battery Charger Troubleshooting
Problem Cause Solution
Red LED stays on for
more than 24 hours.
One or more defective or damaged
cells.
Load test the battery and replace if necessary.
Charger has reduced its output voltage
below the normal level due to a DC
overload or a DC short.
Remove the source of the overload or short.
Disconnect the charger’s black (NEGATIVE) ring
terminal from the battery. Reapply AC power and the
green LED only should now light.
On-board DC systems are drawing
more current than the charger can
replace.
Turn off excessive DC equipment while charging.
The red and green LEDs
stay on for more than 24
On-board DC systems are drawing
between 1.5 – 5A.
Turn off excessive DC equipment while charging.
y
hours.
One or more defective or damaged
cells.
Load test the battery and replace if necessary.
Extremely low AC voltage at the battery
charger.
Apply a higher AC voltage source or reduce the length
of the power cord.
Green LED stays on
when the battery is
Open DC output fuse. Replace the DC output fuse with a Bussmann
AGC--10.
y
knowntobelow.
Faulty or contaminated terminal
connections.
Clean and tighten or repair all terminal connections.
One or more defective or damaged
cells.
Load test the battery and replace if necessary.
Neither of the LEDs turn
on when the AC power is
No AC power available at the charger. Connect AC power or reset the AC breaker on the
main panel.
p
applied.
Component failure. Return charger to the Service Department.
Figure 6 -27 Battery Charger Troubleshooting
