- 22 -
3
2
1
3

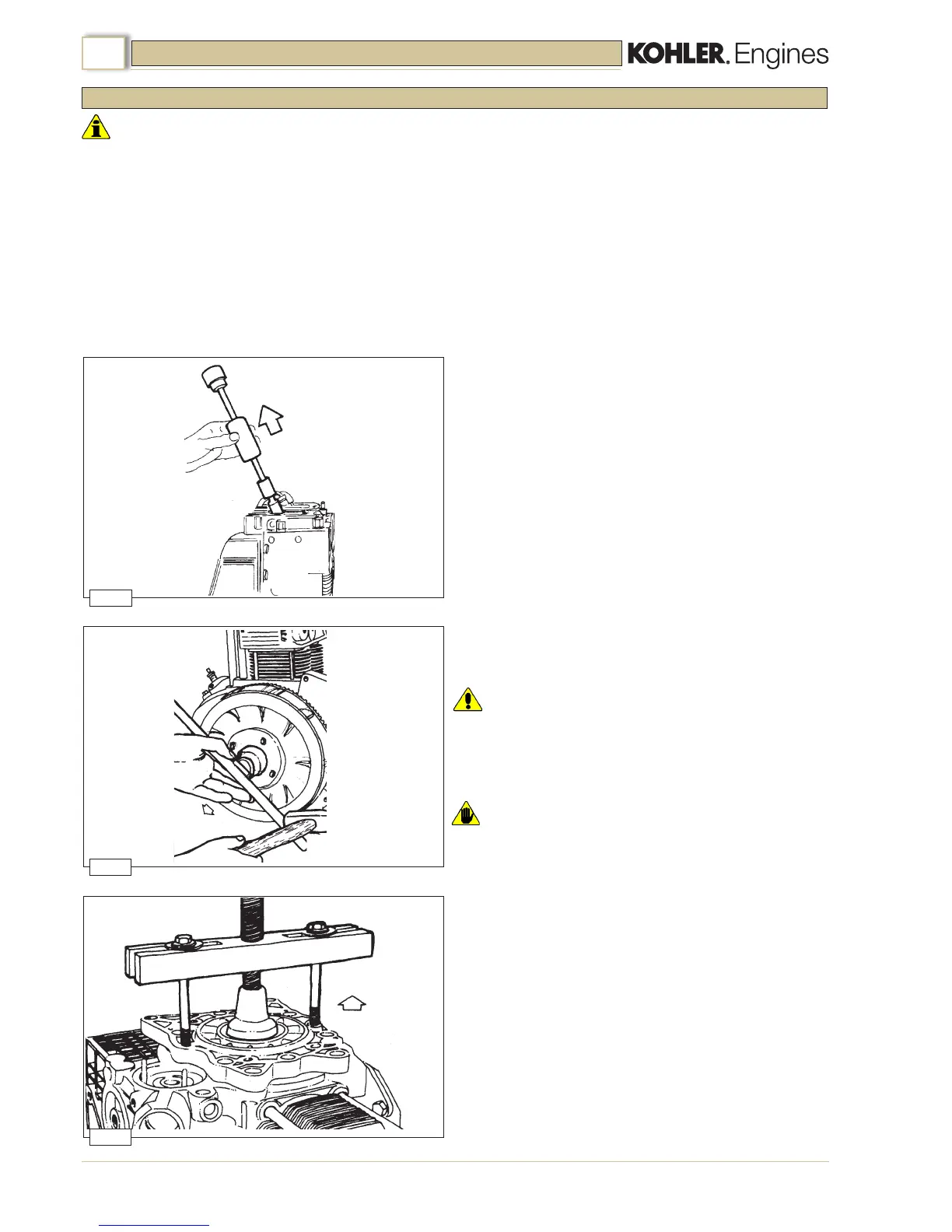

DISASSEMBLY OF THE ENGINE
Extracting fuel injectors
Unscrew the fuel feeding pipes.
Remove the injectors using a commercial extractor tool as
shown in g. 1.
Extraction of ywheel side main bearing
Withdraw the bearing using two M8 screws taking care to tighten
them evenly; alternatively use a commercial extractor, as shown
in gure 3.
Removing the ywheel
Use the extractor number 00365R0020 as shown in gure 2.
Danger
During the demounting phases, pay particular attention to
prevent the ywheel from dropping as this could seriously injure
the operator.
Wear protective goggles when removing the ywheel ring.
Warning
Do not tap the end of the extractor when removing the ywheel.
RECOMMENDATIONS FOR DISASSEMBLING
Important
• To locate specific topics, the reader should refer to the index.
• The operator must make sure that the contact surfaces are intact, lubricate the coupling parts and protect those that are prone
to oxidation.
• Before any intervention, the operator should lay out all equipment and tools in such a way as to enable him to carry out operations
correctly and safely.
• For safety and convenience, you are advised to place the engine on a special rotating stand for engine overhauls.
• Before proceeding with operations, make sure that appropriate safety conditions are in place, in order to safeguard the operator
and any persons involved.
