Kohler KD 425-2

- 23 -
4
3
8
5
6 7

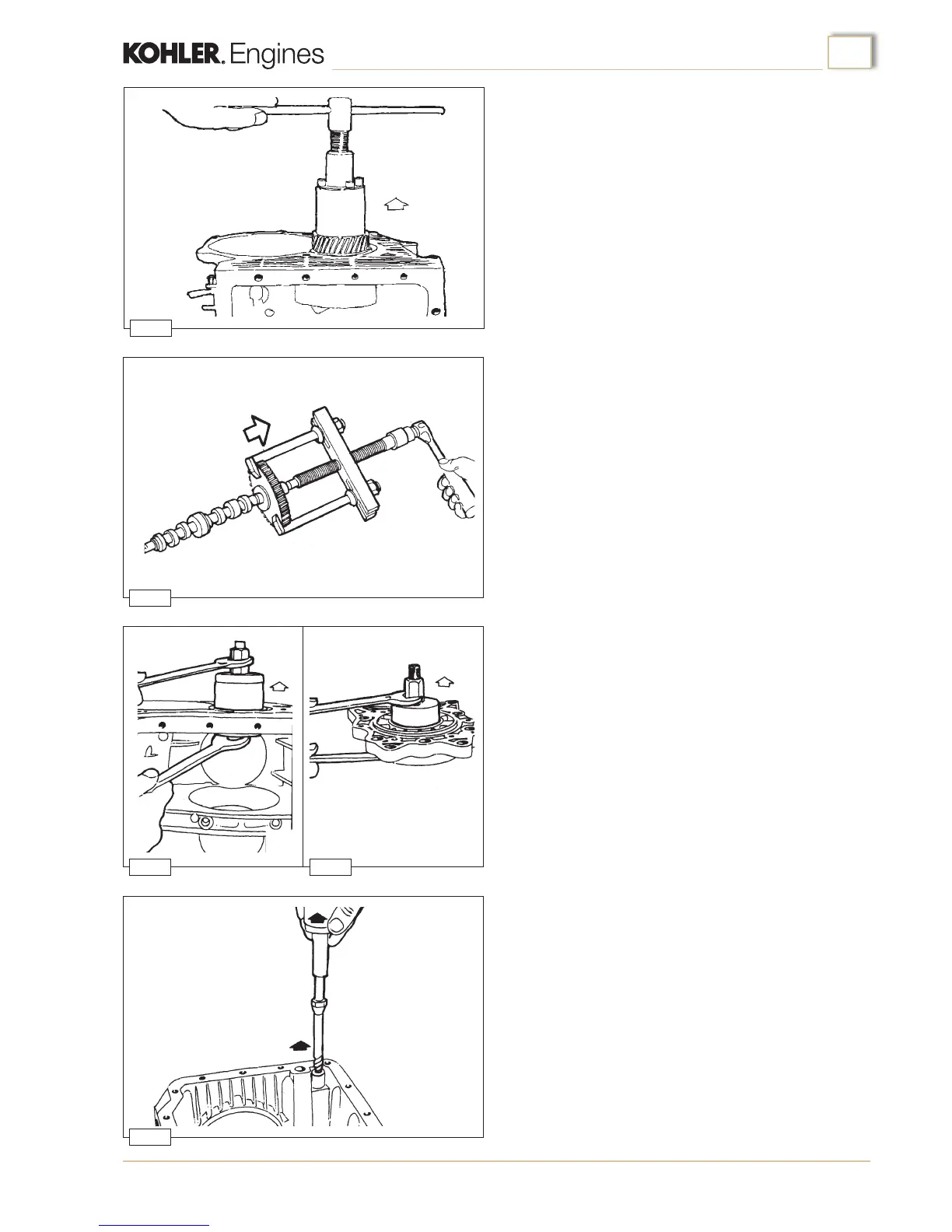

Extraction of crankshaft gear
Use extractor tool number 00365R0890 (g.4).
Disassembly of the engine
Extracting the oil pressure indicator plug
Loosen the plug securing screw, and remove circlip, spring and
ball.
Cut a thread on the inside of the plug body and then withdraw it
using a commercial extractor tool (g. 8).
Extracting crankcase bushes
From crankcase (g.6)
From main bearing (g.7)
Use extractor number 00365R0900.
Extraction of the camshaft gear
Use the extractor number 00365R0010 (g.5).
KD425-2 Workshop Manual_cod. ED0053031750_1° ed_ rev. 00
