Kohler KD 425-2 - ELECTRICAL EQUIPMENT; Plant specifications and components

- 36 -
50
51
6
Internal built-in alternator
External alternator
cables: Color x Section (mm²)
cables: Color x Section (mm²)
Plant specications
Starter motor:
Left rotation, 12V, power from 1.25 to 1.4 kW
Built-in alternator:
280W
Voltage regulator:
Electronic with controlled diodes and connection for battery
charge indicator light
External alternator:
12V - 400W
Recommended battery:
Refer to tables p.15
Flywheel ring gear:
Check teeth for wear or damage. Fit crown wheel to ywheel by
pre-heating to 200-250°C.

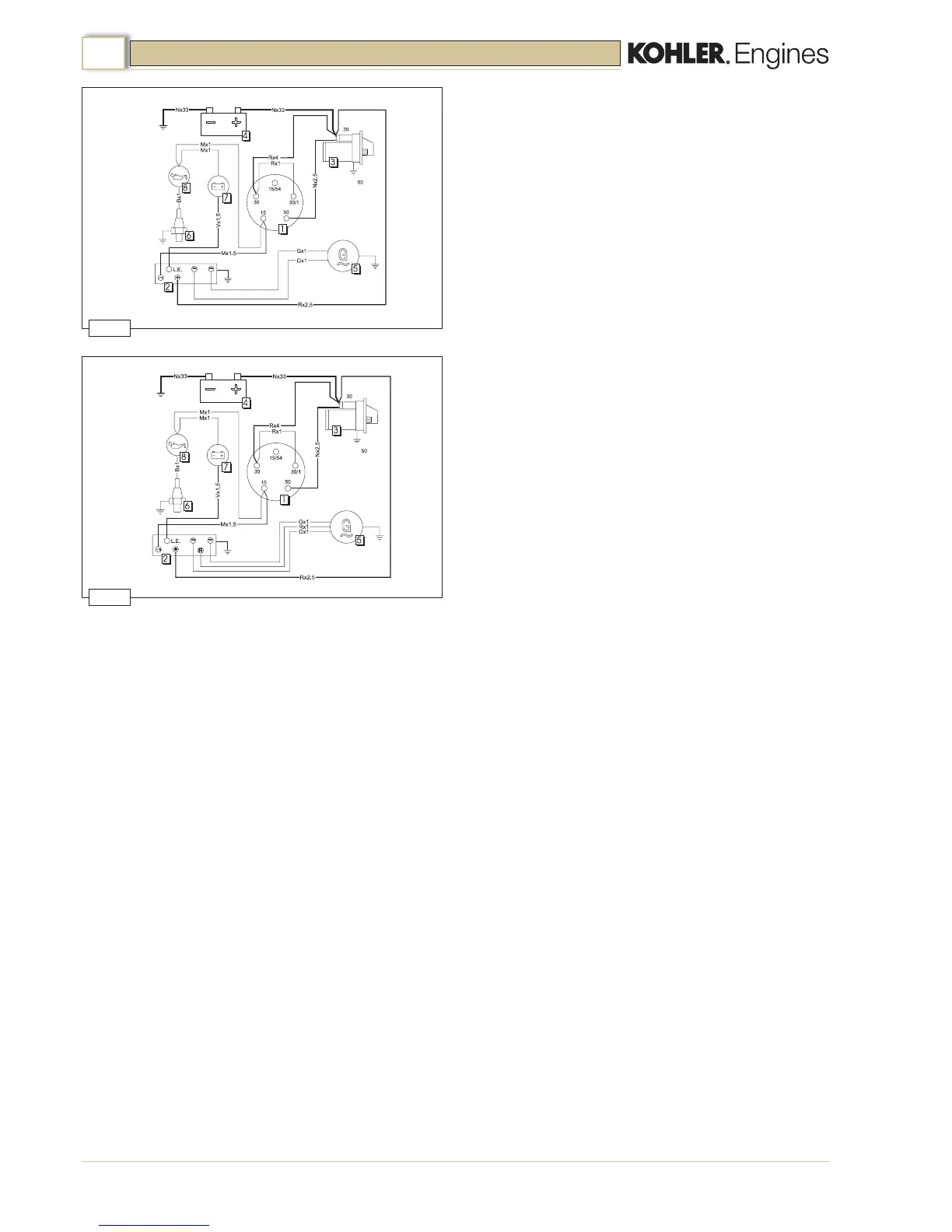

Description (g. 50-51)
1. Ignition key (optional)
2. Voltage regulator
3. Engine starter
4. Battery (not included)
5. Alternator
6. Pressure switch
7. Battery recharge warning light (optional)
8. Oil pressure warning light (optional)
Cables color (g. 50-51)
M Brown
N Black
A White
V Green
R Red
ELECTRICAL EQUIPMENT
