Tools and devices
Tools
WARNING
Turning device screwed on the flywheel housing or wrench tool on the turning device during
engine operation!
Risk of death or injury by ejected tools or turning device parts.
u Check spring function of the turning device. If faulty, replace by new turning device.
u After the rotation of the flywheel, always take away the wrench tool from the turning device.
u Dismount immediately the turning device and mount the cover on the flywheel housing.
Information
The wrench tool and the turning device are available for maintenance task only.
Please contact your nearest authorized Kohler service representative.
Installation

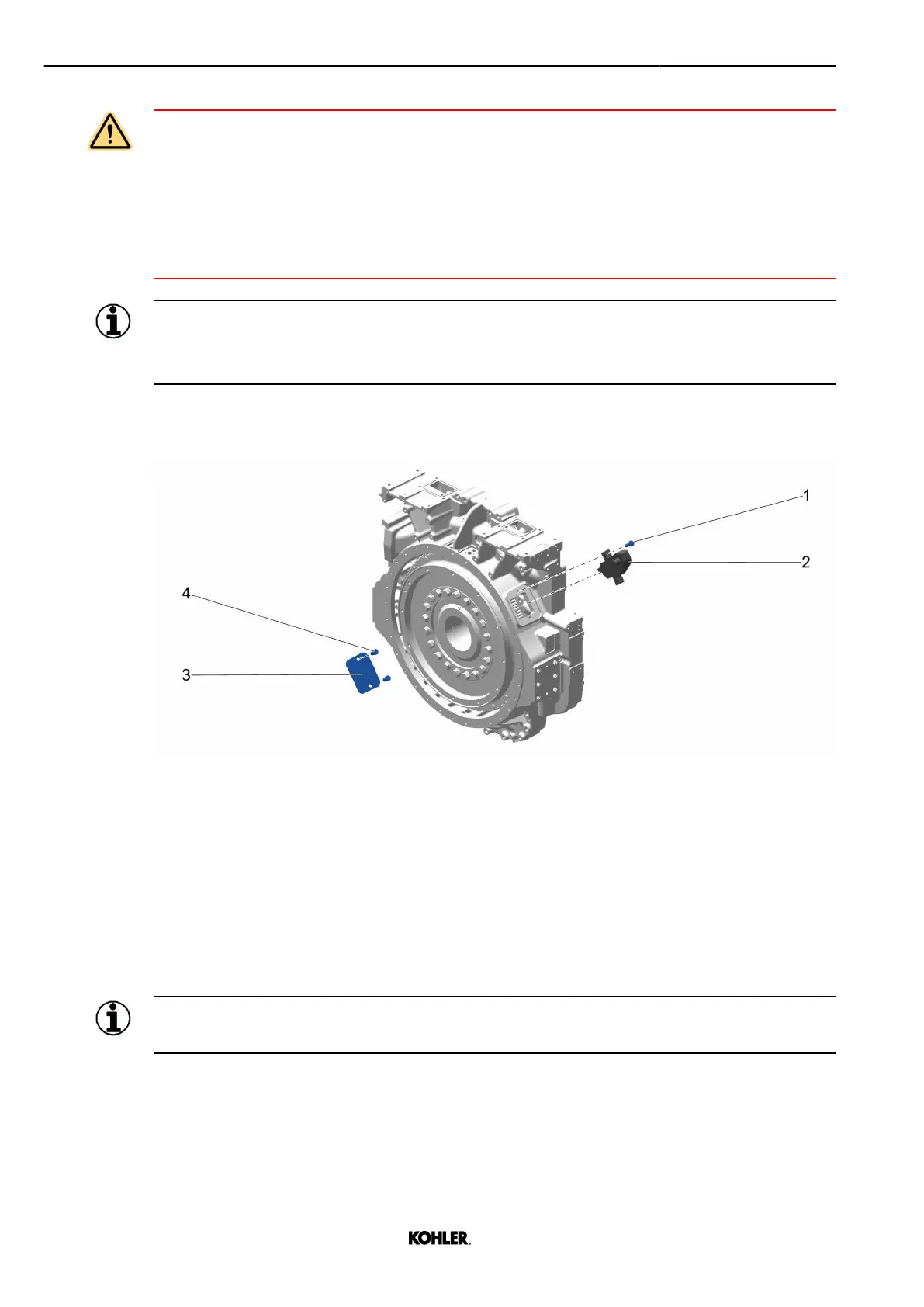

Fig. 110: Mounting the turning device
1
Screws (M16x35 -8.8) 3 Cover
2 Turning device 4 Screws (M16x25 -8.8)
To mount the turning device:
u Unscrew screws 4.
u
Remove cover 3.
u Position turning device 2.
u Mount and tighten screws 1 according to standard torque values.
Information
For queries, please contact your nearest authorized Kohler service representative.
Operation
Make sure that the following preconditions are met:
q Turning device is mounted on the engine.
Depending on the required setting:
168
© 2022 by Kohler Co. All rights reserved.
KD62V12 33521030301_8_1 EN_US 2022-09
