Tools and devices
Tools
u Engage a manual wrench tool to turn the wheel from the turning device that drives the
flywheel gear rim.
u Turn the engine flywheel to the required position or as long needed by turning the wrench.
u Disengage the manual wrench each time you stop to turn.
At the end of the setting:
u Dismount the turning device and mount the cover on the flywheel housing.
u Tighten the turning device cover bolts according to standard torques values.
Removal

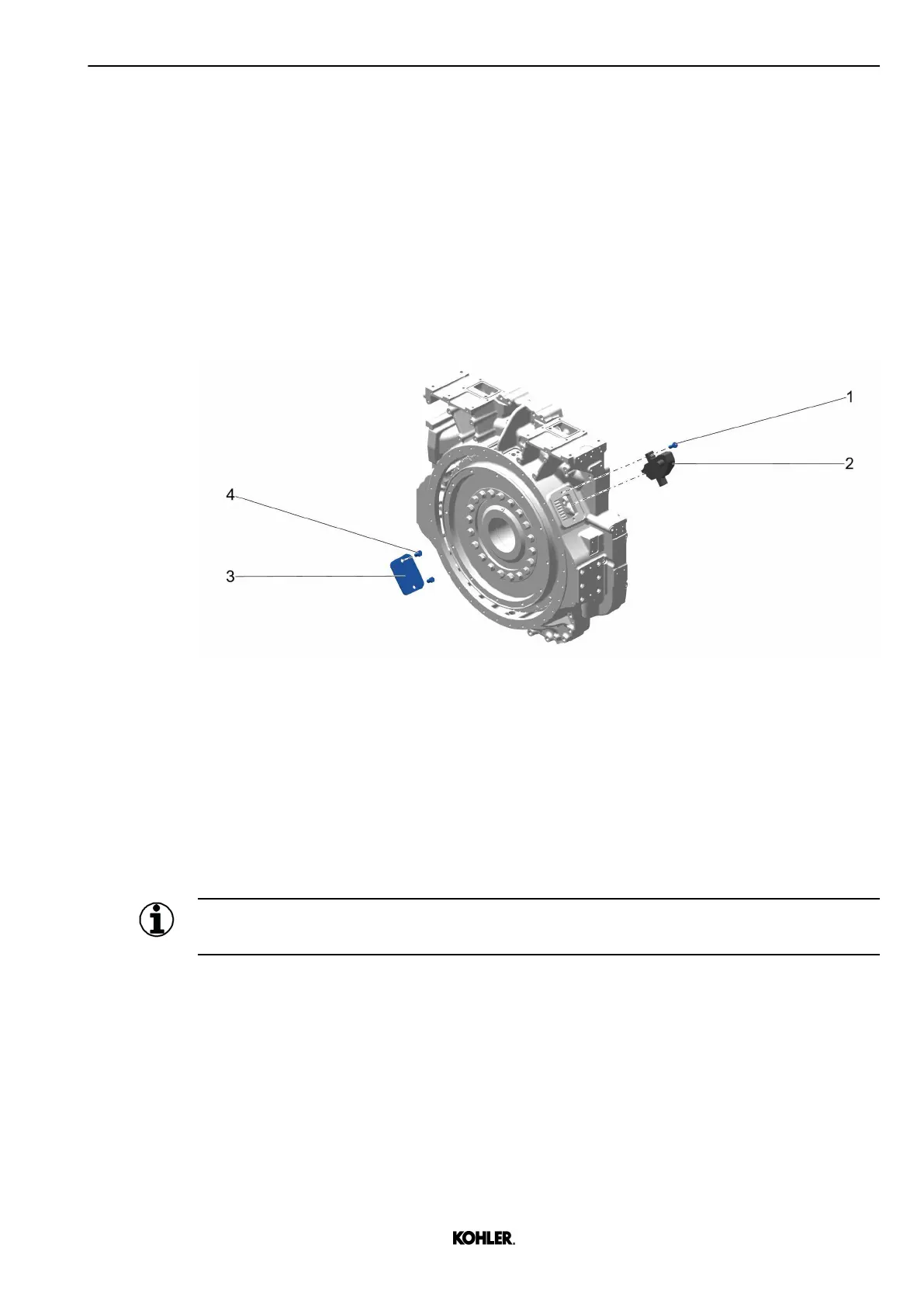

Fig. 111: Dismounting the turning device
1
Screws (M16x35 -8.8) 3 Cover
2 Turning device 4 Screws (M16x25 -8.8)
To dismount the turning device:
u Unscrew screws 1.
u Remove turning device 2.
u Position cover 3.
u Mount and tighten screws 4 according to standard torques values.
Information
For queries, please contact your nearest authorized Kohler service representative.
