Kohler KD62V12 User Manual

Repair
Exhaust gas system
3 Clamp 10 Pipe
4 Plate 11 Screw (M8)
5 Screw (M8) 12 Orifice
6 Screw (M8) 13 O-ring
7 Distribution block

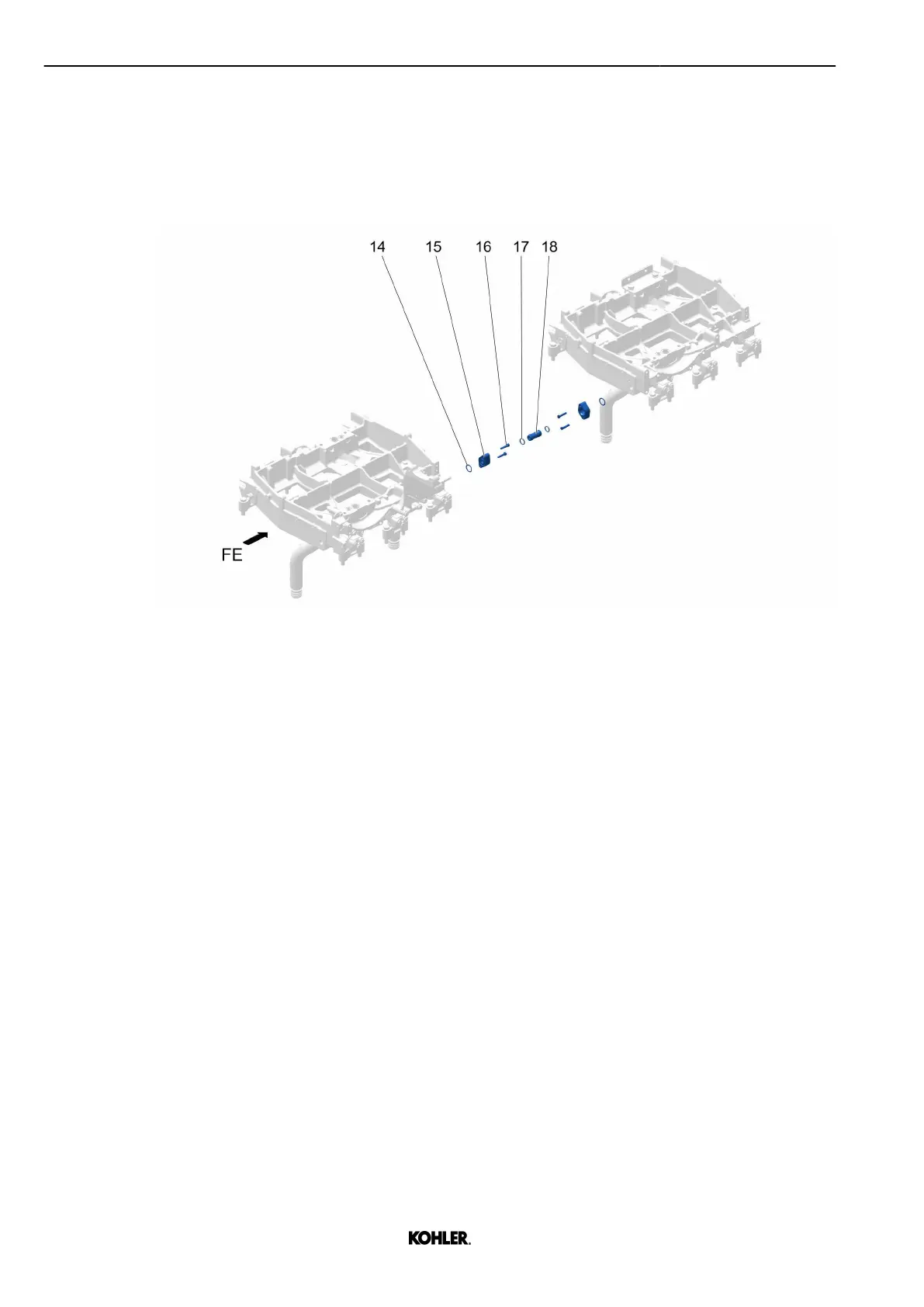

Fig. 184: Task overview
14
O-ring 17 O-ring
15 Flange 18 Pipe
16 Screw (M8)
172
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
