Repair
Exhaust gas system
Removal

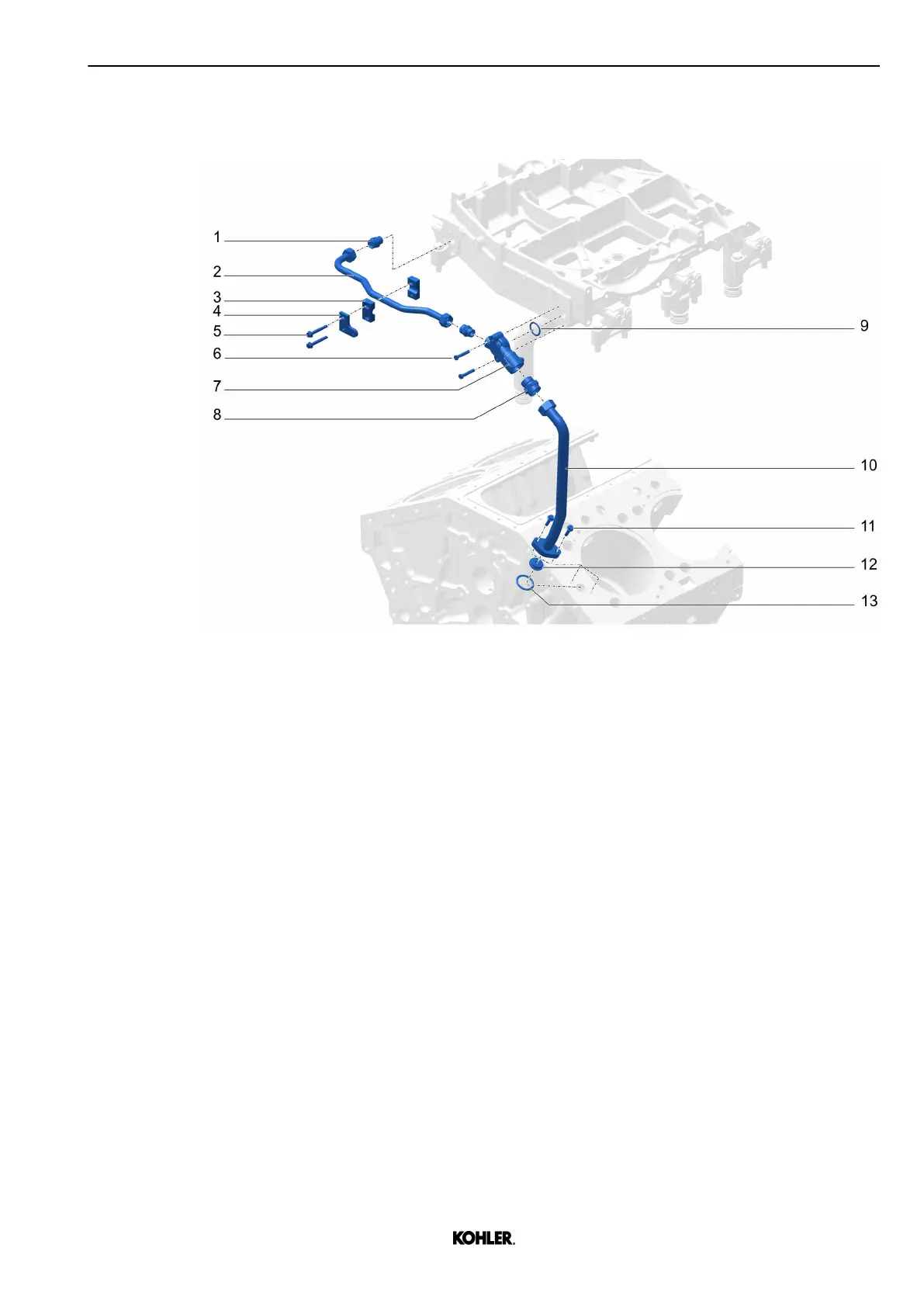

Fig. 185: Removing pipes
u Remove screws 5 with plate 4 and clamps 3.
u Remove pipe 2.
u Remove screws 11.
u Remove pipe 10, orifice 12, and o-ring 13.
u Remove screws 6.
u Remove distribution block 7 and o-ring 9.
u Remove flange joints 1, 8.
