Repair
Exhaust gas system

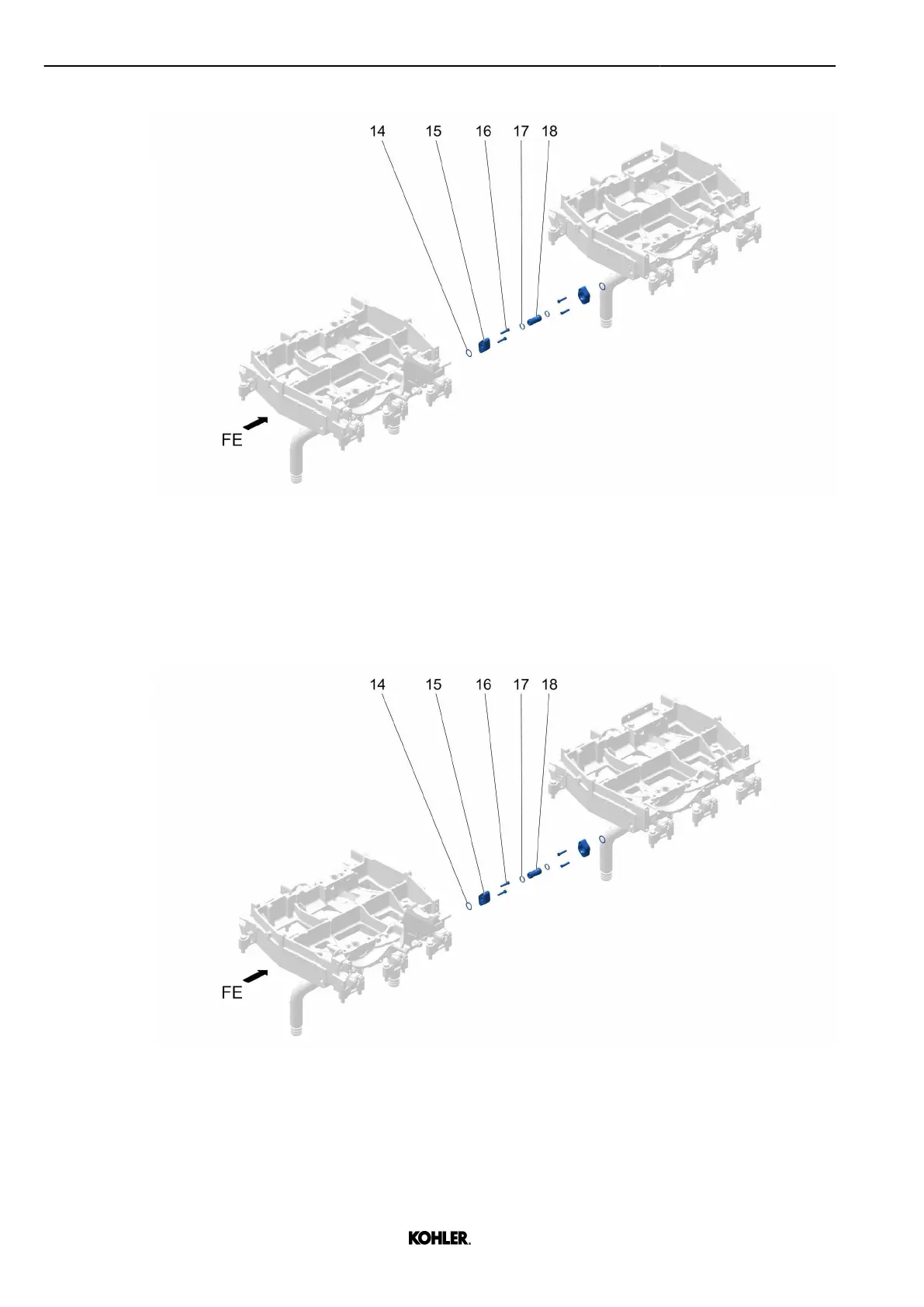

Fig. 186: Removing flanges and pipe
u Remove screws 16.
u Remove flanges 15 with o-rings 14 and pipe 18.
Installation
Fig. 187: Installing flanges and pipe
u Assemble o-rings 17 on pipe 18 and place both flanges 15.
u Insert o-rings 14 in both flanges 15.
u Position assembly with screws 16 between both turbocharger brackets on oil supply connec‐
tion.
