Repair
Exhaust gas system
u Tighten screws 16 to torque.

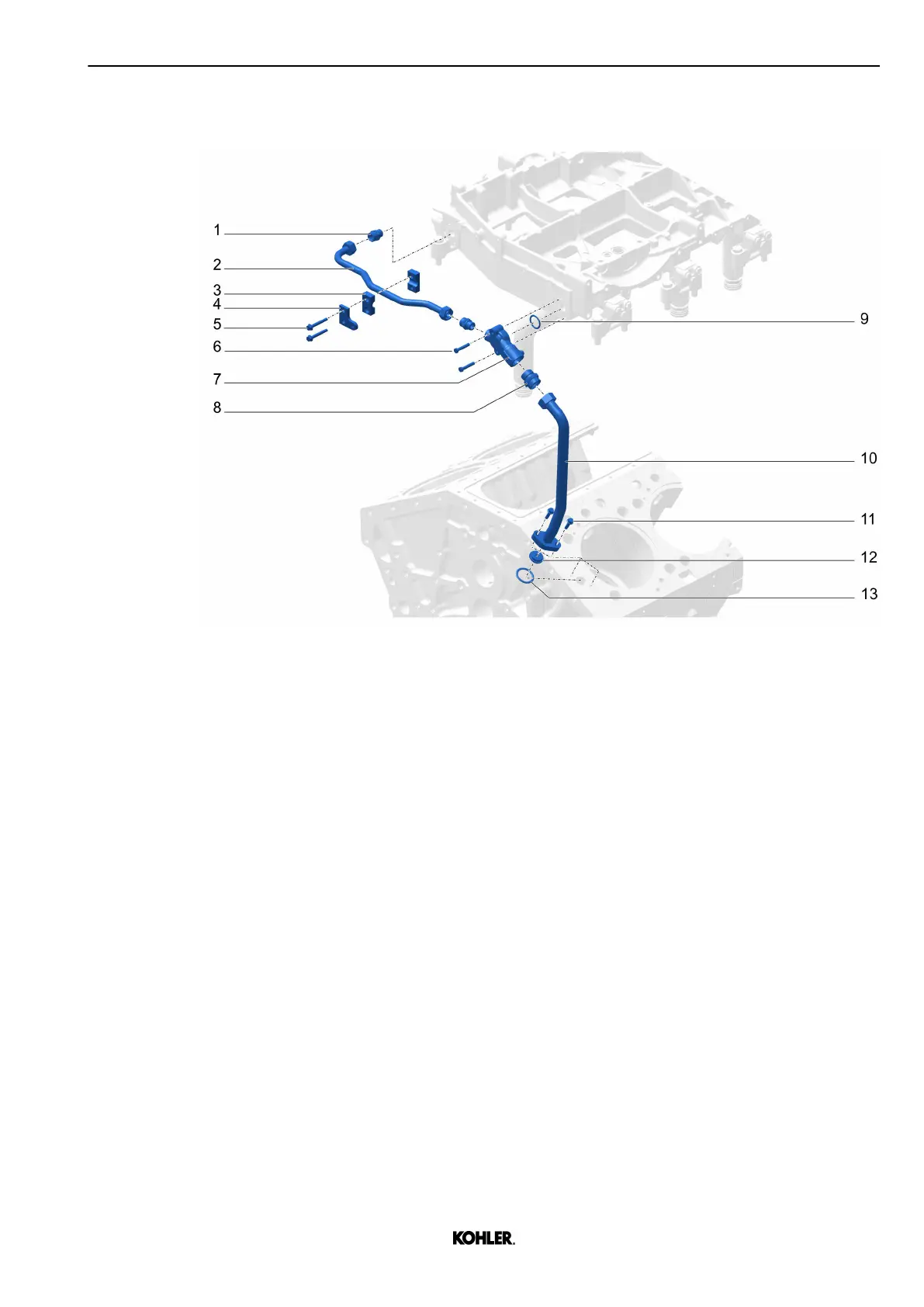

Fig. 188: Installing pipes
u Insert o-ring 9 in distribution block 7.
u Position distribution block 7 with screws 6 on oil entry of turbocharger bracket.
u Tighten screws 6.
u Install flange joints 1, 8.
u Tighten flange joints 1, 8.
u Grease orifice 12.
u Install pipe 10 with orifice 12, screws 11, and seal 12 between flange joint 8 and crankcase.
u Install pipe 2 with flange joint 1 on oil entry of turbocharger bracket.
u Tighten screws 11.
u Install plate 4 and clamps 3 with screws 5.
u Tighten screws 5.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening
torques, page 268.)
