Repair
Lubricating system
Overview

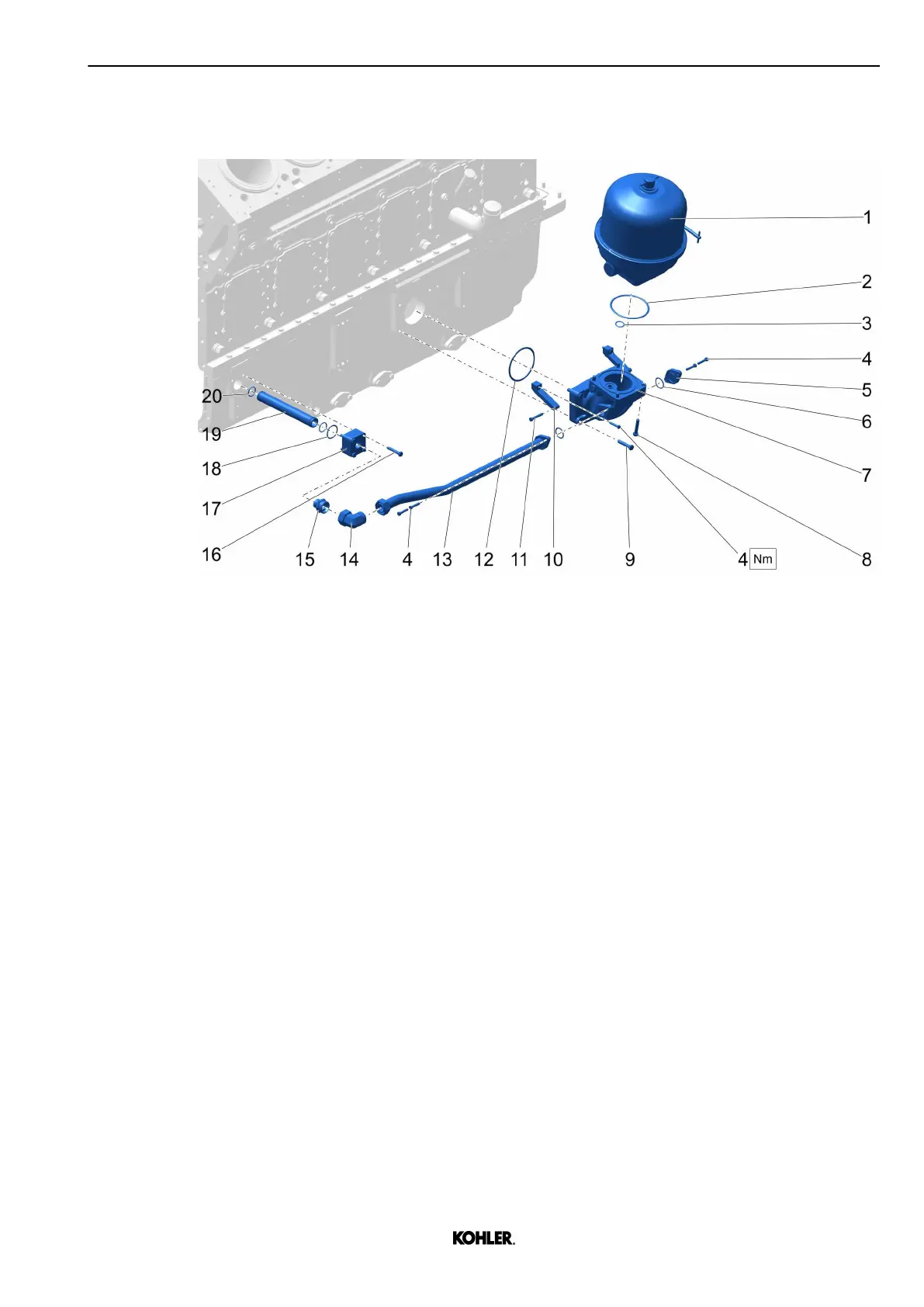

Fig. 205: Task overview
1
Oil centrifuge 11 Screw (M8)
2 O-ring 12 O-ring
3 O-ring 13 Pipe
4 Screw (M8) 14 Flange joint
5 Cover plate 15 Flange joint
6 O-ring 16 Screw (M10)
7 Oil centrifuge base 17 Flange
8 Screw (M12) 18 O-ring
9 Screw (M12) 19 Pipe
10 Holder 20 O-ring
Removal
u Remove screws 4 from pipe 13.
u Disconnect pipe 13 with flange joints 14, 15.
u Remove screws 4, 9.
u Remove screws 11.
u Remove holders 10.
u Remove screws 8.
u Remove oil centrifuge base 7 from oil centrifuge 1.
u Remove screws 16.
u Remove flange 17 with pipe 19.
Installation
u Install o-rings 20 on pipe 19.
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
191
