Repair
Lubricating system
u Install o-ring 18 on flange 17.
u Assemble pipe 19 with flange 17.
u Screw assembly with screws 16.
u Assemble oil centrifuge base 7 and oil centrifuge 1 with screws 8 and o-rings 2, 3.
u Install holders 10 with screws 11.
u Install oil centrifuge assembly to oil pan with o-ring 12 and screws 4, 9.
u Install pipe 13 to oil centrifuge base 7 with o-ring 6 and screws 4.
u Connect flange joints 14, 15 to pipe 13.
u Install cover plate 5 with o-ring 6 and screws 4.
Specific values
Not applicable.
Tightening specifications

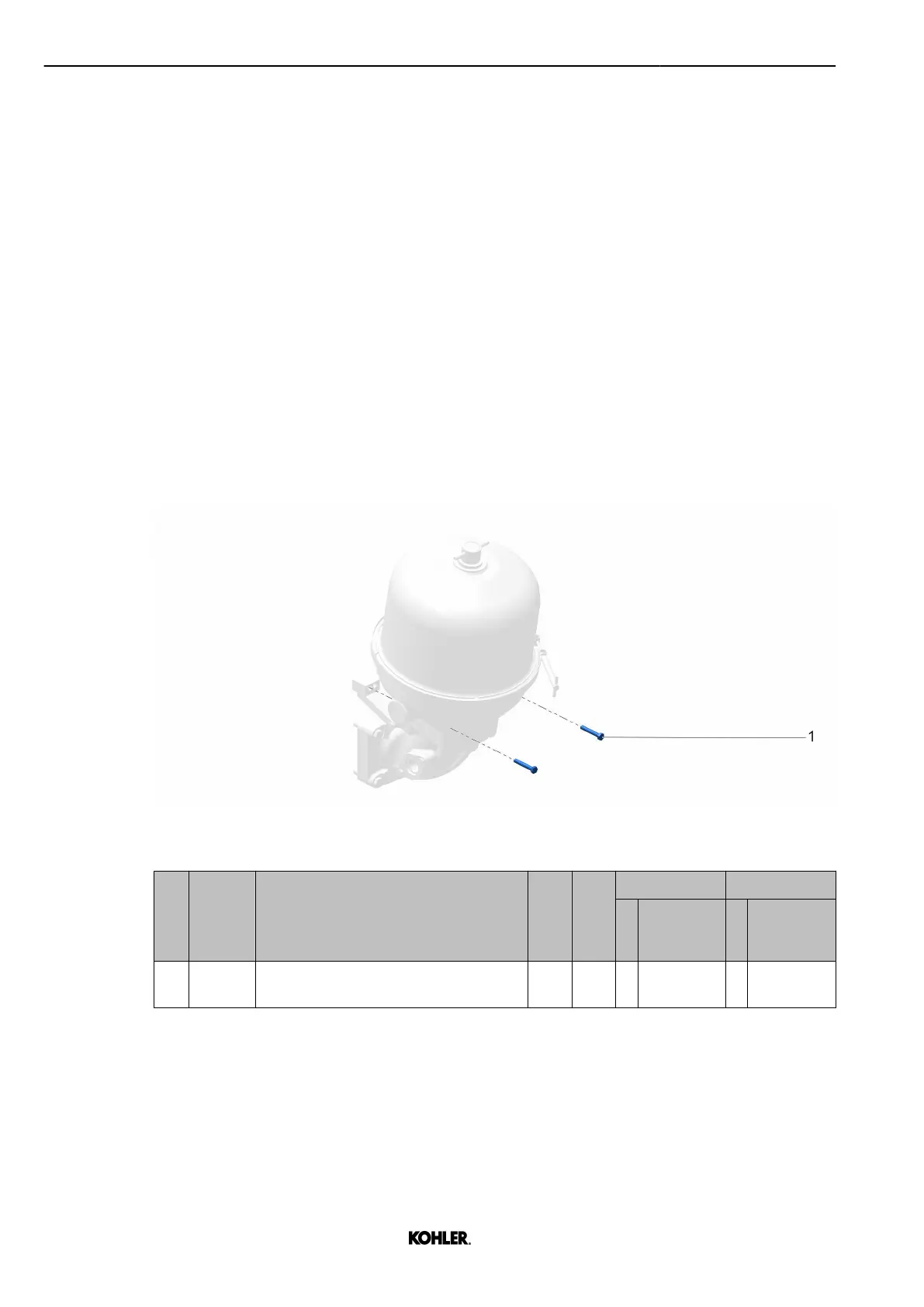

Fig. 206: Oil centrifuge screws
Reference
Key
Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 025AA ISO 4017 M8x1.25x40-10.9-FLZN - Yes 1 27 Nm
20 ft-lb
- -
Tab. 39: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
