Repair
Cooling system
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

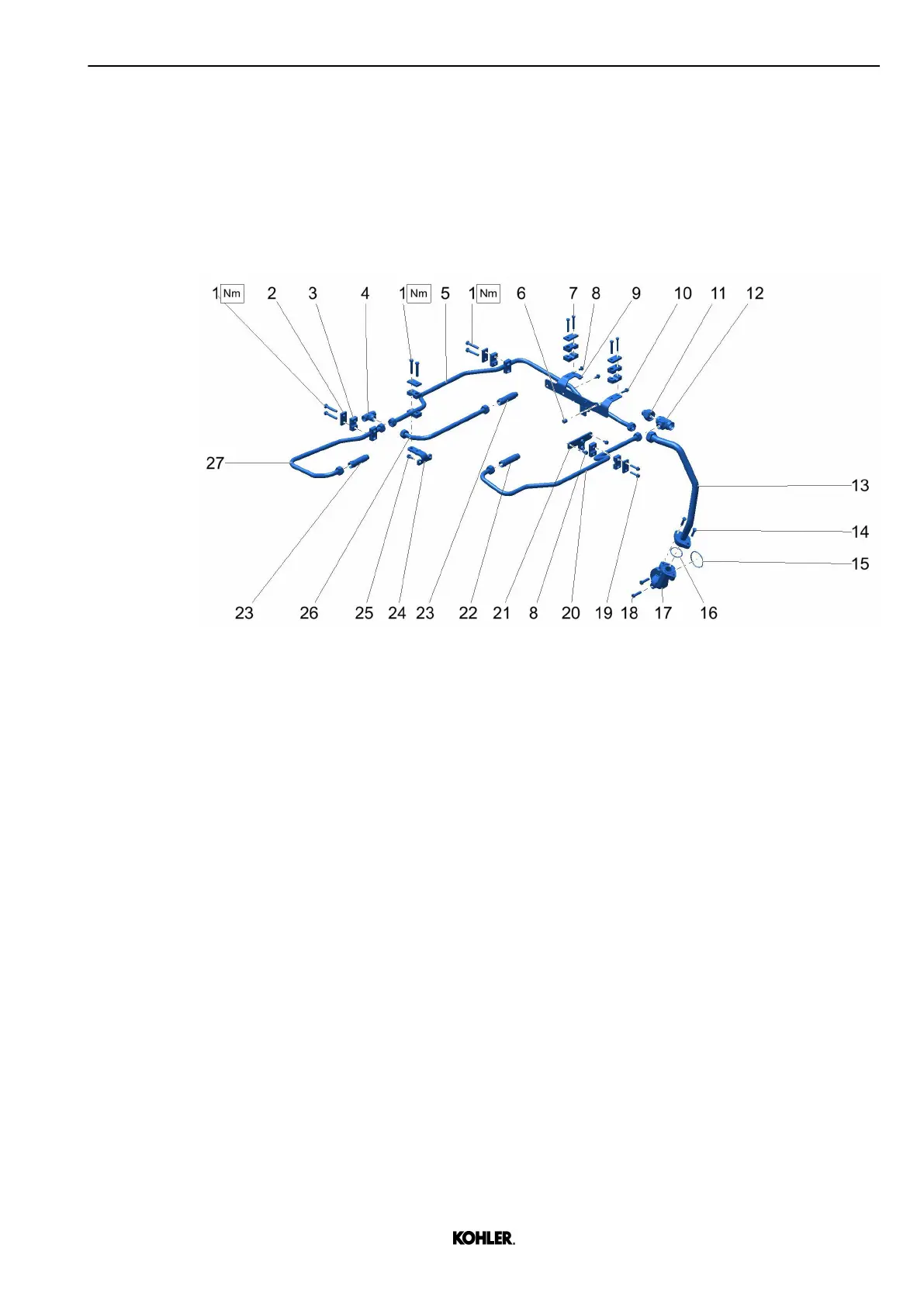

Fig. 221: Task overview
1
Screw (M10) 15 O-ring
2 Plate 16 O-ring
3 Clamp 17 Aggregate support connector
4 T connector 18 Screw (M10)
5 Pipe 19 Screw (M8)
6 Distance sleeve 20 Pipe
7 Screw (M8) 21 Retaining plate
8 Screw (M8) 22 Fitting
9 Retaining plate 23 Fitting
10 Screw (M8) 24 Retaining plate
11 Flange joint 25 Screw (M8)
12 T connector 26 Pipe
13 Pipe 27 Pipe
14 Screw (M10)
KD62V12 33525088601_8_1 EN_US
2022-09
© 2022 by Kohler Co. All rights reserved.
207
