Repair
Cooling system

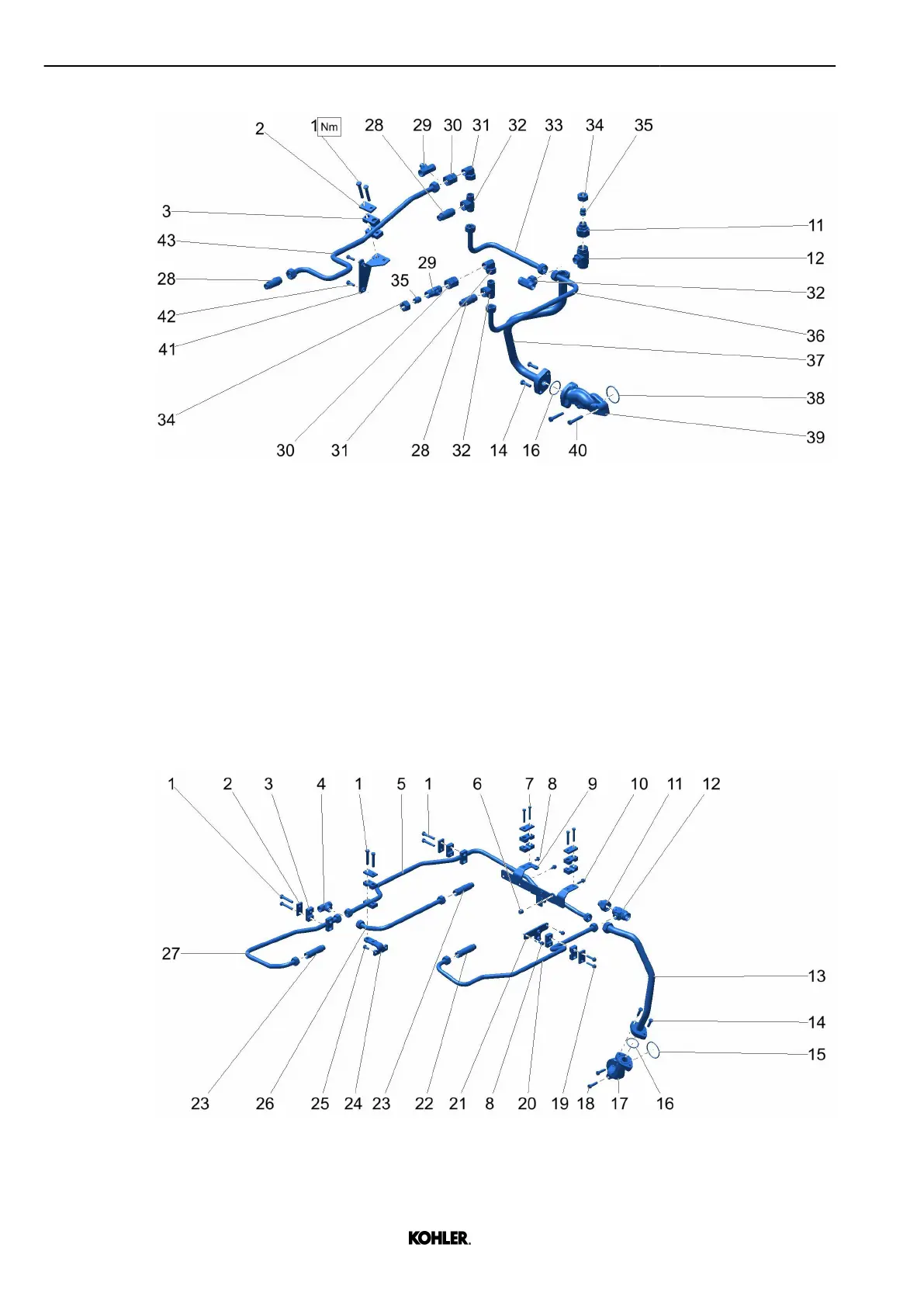

Fig. 222: Task overview
28
Fitting 36 Pipe
29 T connector 37 Pipe
30 Fitting 38 O-ring
31 90° connector 39 Aggregate support connector
32 T connector 40 Screw (M10)
33 Pipe 41 Retaining plate
34 Nut 42 Screw (M10)
35 Plug 43 Pipe
Removal
Turbocharger coolant supply
Fig. 223: Removing pipes
u Remove screws 1, 7, 19.
208
© 2022 by Kohler Co. All rights reserved.
KD62V12 33525088601_8_1 EN_US
2022-09
