Repair
Covers
Overview

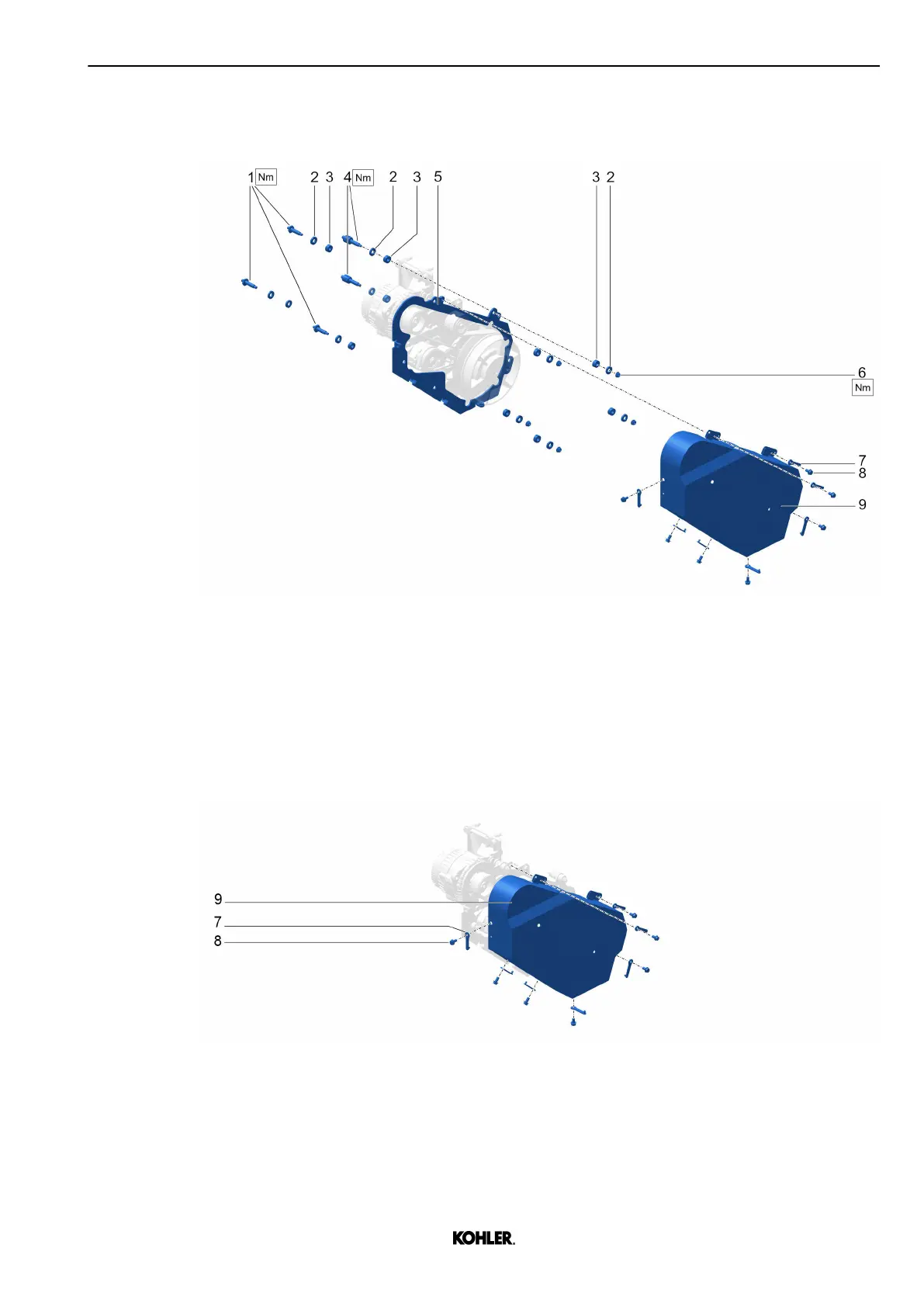

Fig. 43: Task overview
1
Pin 6 Nut (M8)
2 Distance sleeve 7 Lock washer
3 Vibration damper 8 Captive screw (M8)
4 Pin 9 Cover - front side
5 Cover - back side
Removal
Fig. 44: Removing cover - front part
u Remove screws 8 and lock washers 7.
u Remove cover - front side 9.
