Rocker arms

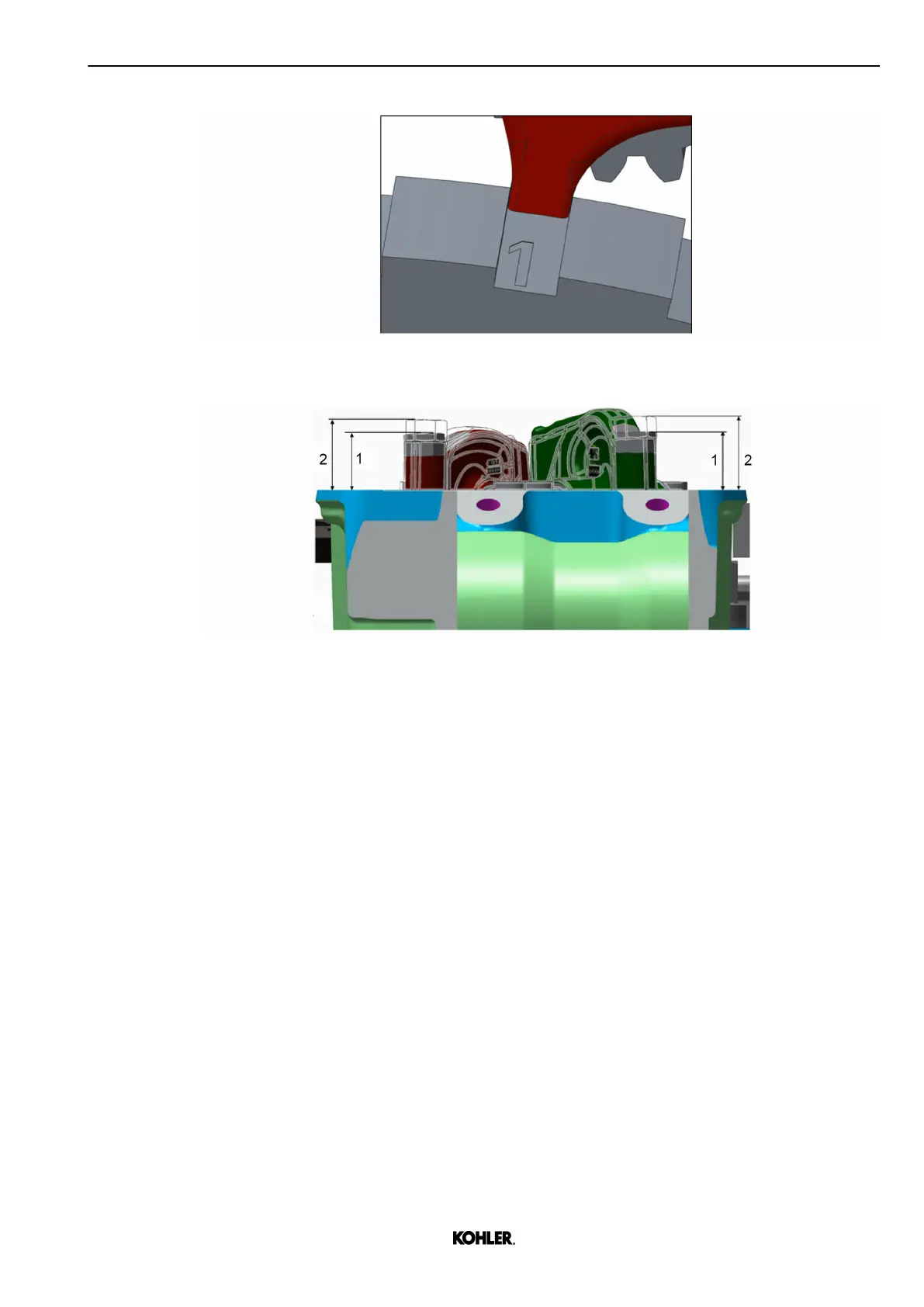

Fig. 55: Position of flywheel and turning device
Fig. 56: TDC positions of cylinder A1
1
Rocker arm position in ignition TDC 2 Rocker arm position in overlap TDC
u Check if cylinder A1 is in TDC overlap position. If not, turn the crankshaft another 360°.
u Verify TDC overlap position again.
Step 2
u Rotate crankshaft in direction of rotation with turning device to index 2.
u Set valve clearance for cylinders A5, A6 and B5. (For more information see: Checking valve
clearance, page 73.) , (For more information see: Setting valve clearance, page 73.)
Step 3
u Pass flywheel groove index 6.
Step 4
u Pass flywheel groove index 3.
Step 5
u Stop at flywheel groove index 4.
u Set valve clearance for cylinders A3, B1 and B3. (For more information see: Checking valve
clearance, page 73.) , (For more information see: Setting valve clearance, page 73.)
Step 6
u Pass flywheel groove index 5.
Step 7
u Pass flywheel groove index 1.
