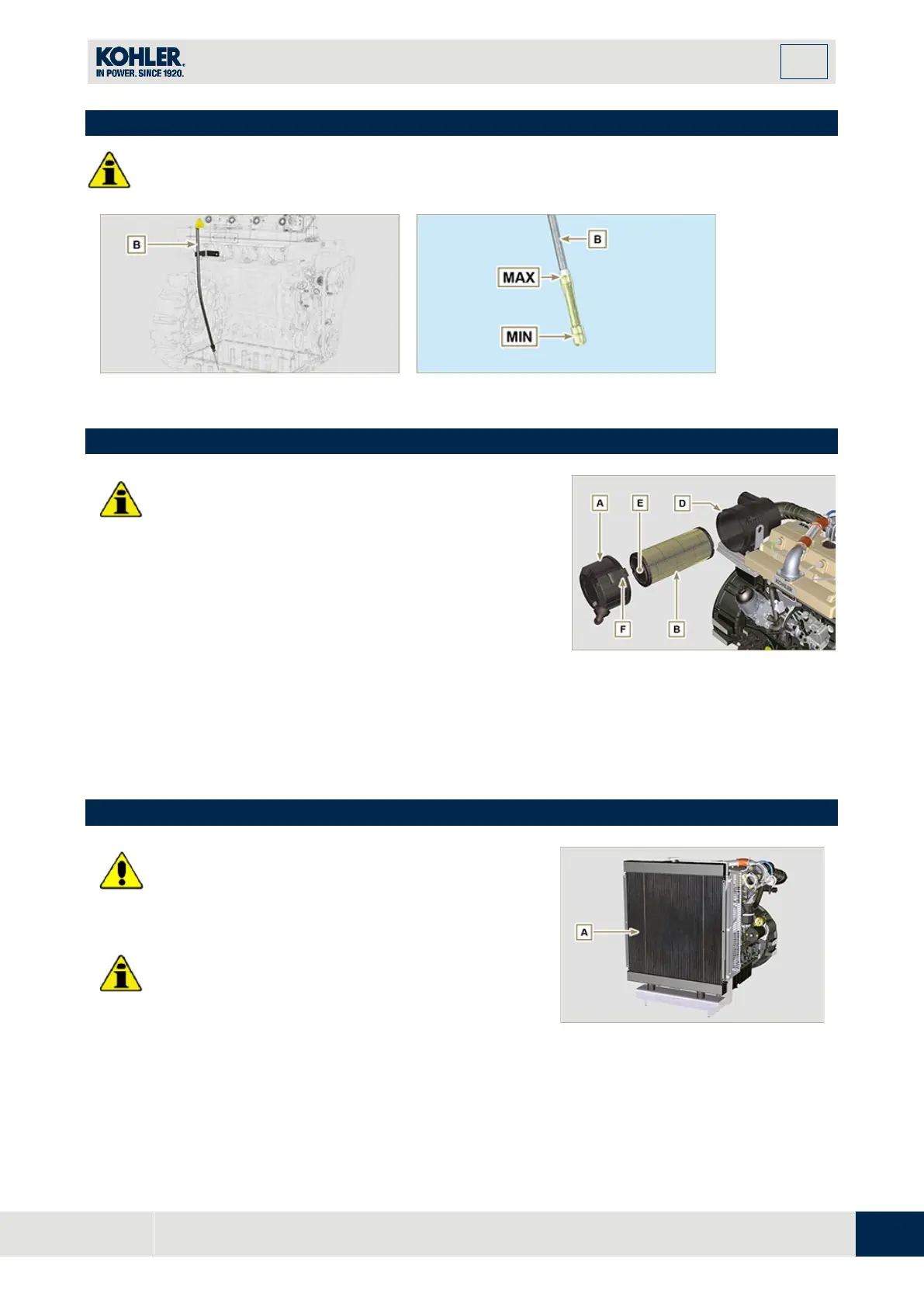

5.4 Oil dipstick on cylinder head
Important
• Before proceeding with operation, read Par. 3.2.2.
Fig 5.3 - Fig. 5.4
5.5 Air filter check
Important
•
Before proceeding with operation, read Par. 3.2.2.
NOTE
: Components not necessarily supplied by
KOHLER
.
1.
Release the two clasps F of the cover A.
2.
Remove the cartridge B.
3.
Clean the inside components A and D with a damp
cloth.
4.
Do not use compressed air , repeatedly tap the front
side E on a flat surface.
5.
Reinstall:
 cartridge B.

the cover A checking the right tightness of clasps F.
Fig 5.5
5.6 Check of the radiator heat - exchanger surface
Danger
•
For safety precautions see Chap. 3.
NOTE:
Component not necessarily supplied by
KOHLER
.
Important
•
Before proceeding with operation, read Par. 3.2.2.
•
Wear safety goggles when using compressed air.
•
The radiator heat-exchange surface must be cleaned
on both.
1.
Check the radiator heat-exchange surface A.
2.
Clean the surface with a brush soaked in special
detergent if it is clogged.
Fig 5.6
