6.2 Oil filter cartridge replacement
•
Before proceeding with operation, read Par. 3.2.2
Warning
•
Electric/pneumatic screwdrivers are forbidden.
•
In case of low use replace il 12 months.
•
For disposal of oil filter cartridge and fuel filter refer to
Par. 6.5 DISPOSAL and SCRAPPING.
1.
Unscrew cartridge holder cover A by performing three
complete turns and wait 1 minute..
NOTE
: this operation allows to oil contained in the support
F
to flow into the oil sump in the correct way.
2.
Unscrew cartridge holder cover A and check that the
oil in the lub. oil filter support F has flowed towards the
oil sump.
3.
Remove the cap A as well as the oil cartridge B from
the oil filter support.

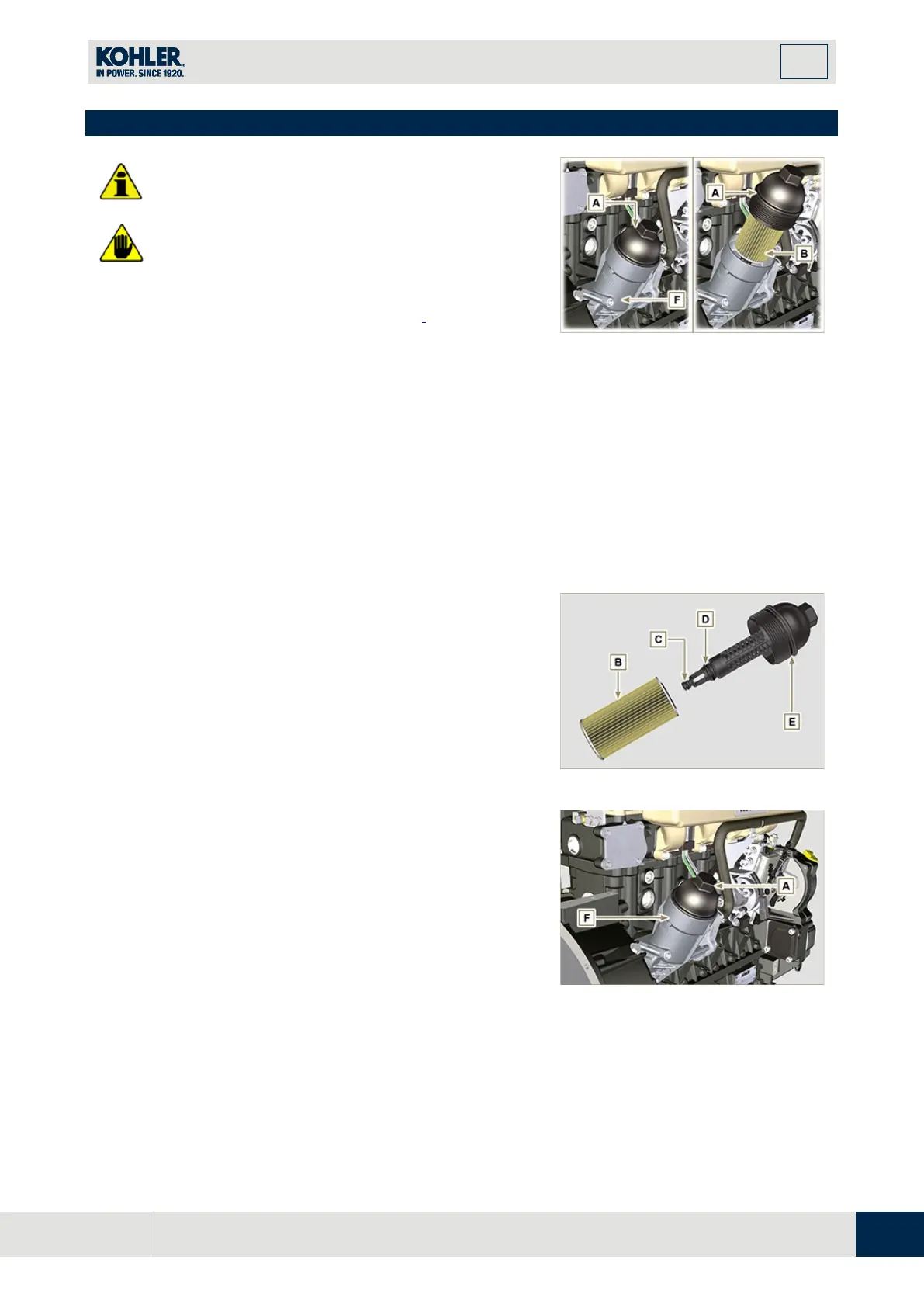

Fig 6.5
4.
Remove and replace the oil cartridge B with a new
one. Remove and replace the gaskets C, D and E with
new ones.
Fig 6.6
5.
Fit and tighten the cover A on the oil filter support F,
tightening it with a torque wrench G (tightening torque
of 25 Nm).
Fig 6.7
