6 INFORMATION ABOUT REPLACEMENTS
6.1 Engine oil replacement
Danger
•
Disconnect the negative wire (-) from the battery to
avroid accidental engine stating.
Important
•
Before proceeding with operation, read Par. 3.2.2
•
Place engine on level sur face to ensure accurate
measurement of oil level.
•
Before proceeding, perform the operation described
in Par. 6.2 - Point 1.
NOTE: Perform this operation with warm engine, to get a
better fluidity of the oil and get a full discharge of oil and
impurities contained in it.
1.
Loosen the oil filler cap A (Fig. 6.1).
2.
Remove the oil dipstick B.
3.
Remove the oil drain plug D and the gasket E (the oil
drain plug is on both sides of the oil sump).
4.
Drain oil in an appropriate container.
(For the exhausted oil disposal, refer to Par. 6.5
DISPOSAL and SCRAPPING).
5.
Replace gasket E.
6.
Tighten the drain oil plug D (tightening torque at 35
Nm).
7.
Perform the operation described in Par. 6.2 point 2 to
5.
8.
Add the type and amount of oil recommended ( Tab.
2.1 and Tab. 2.2).
9.
If the plug A is not accessible, use the oil filler cap C.
Important
•
Do not exceed the MAX level on the dipstick.
1.
Fit and remove the oil dipstick B to check the level.
Pour in fluid until reaching the MAX level mark.
2.
Upon completion, reinstall the oil dipstick B
completely.
3.
Tighten the cap A or C.

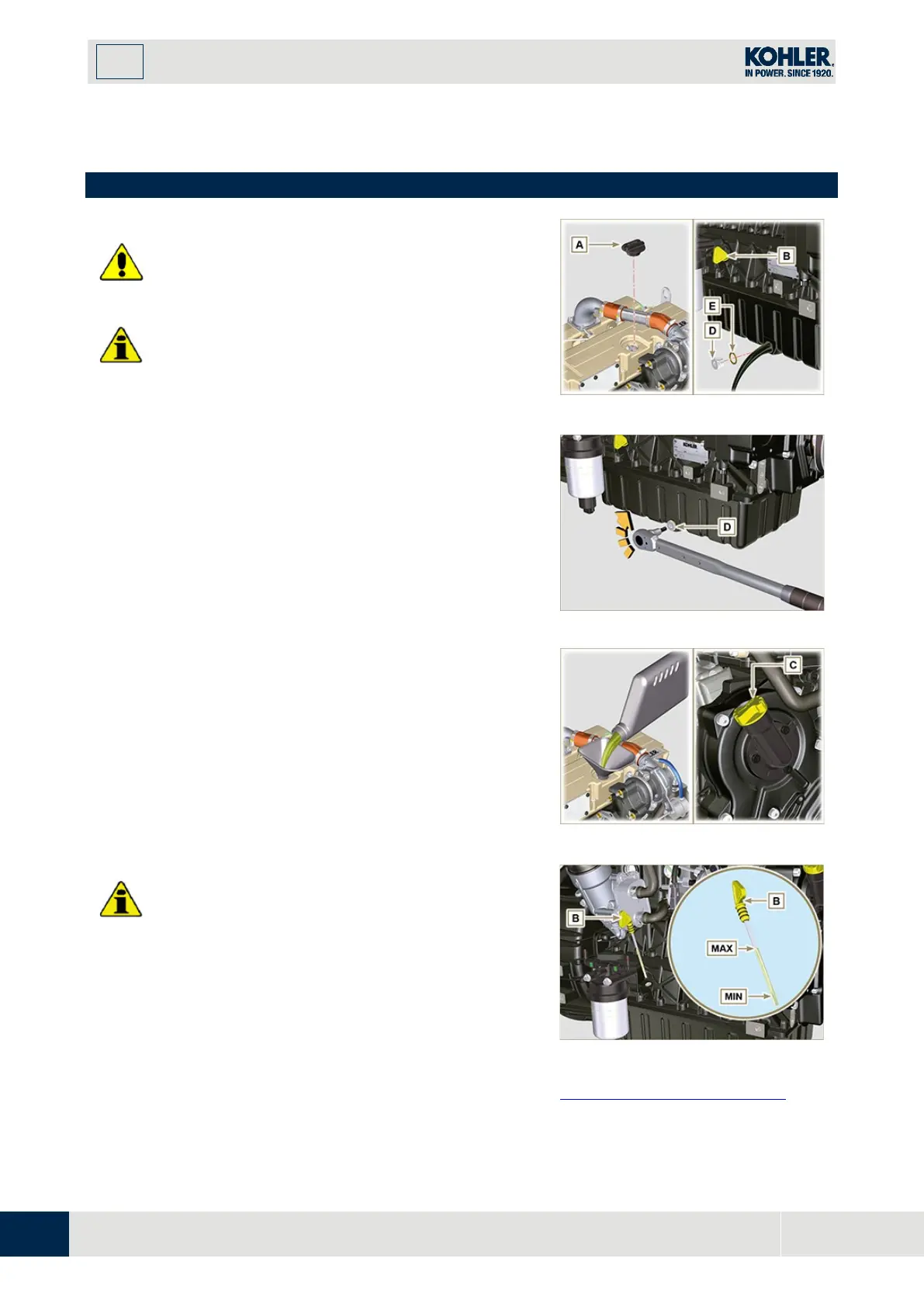

Fig. 6.1
Fig. 6.2
Fig. 6.3
Fig. 6.4
NOTE:
Click on the right to play the procedure.
https://youtu.be/upyRxW9KPPQ
