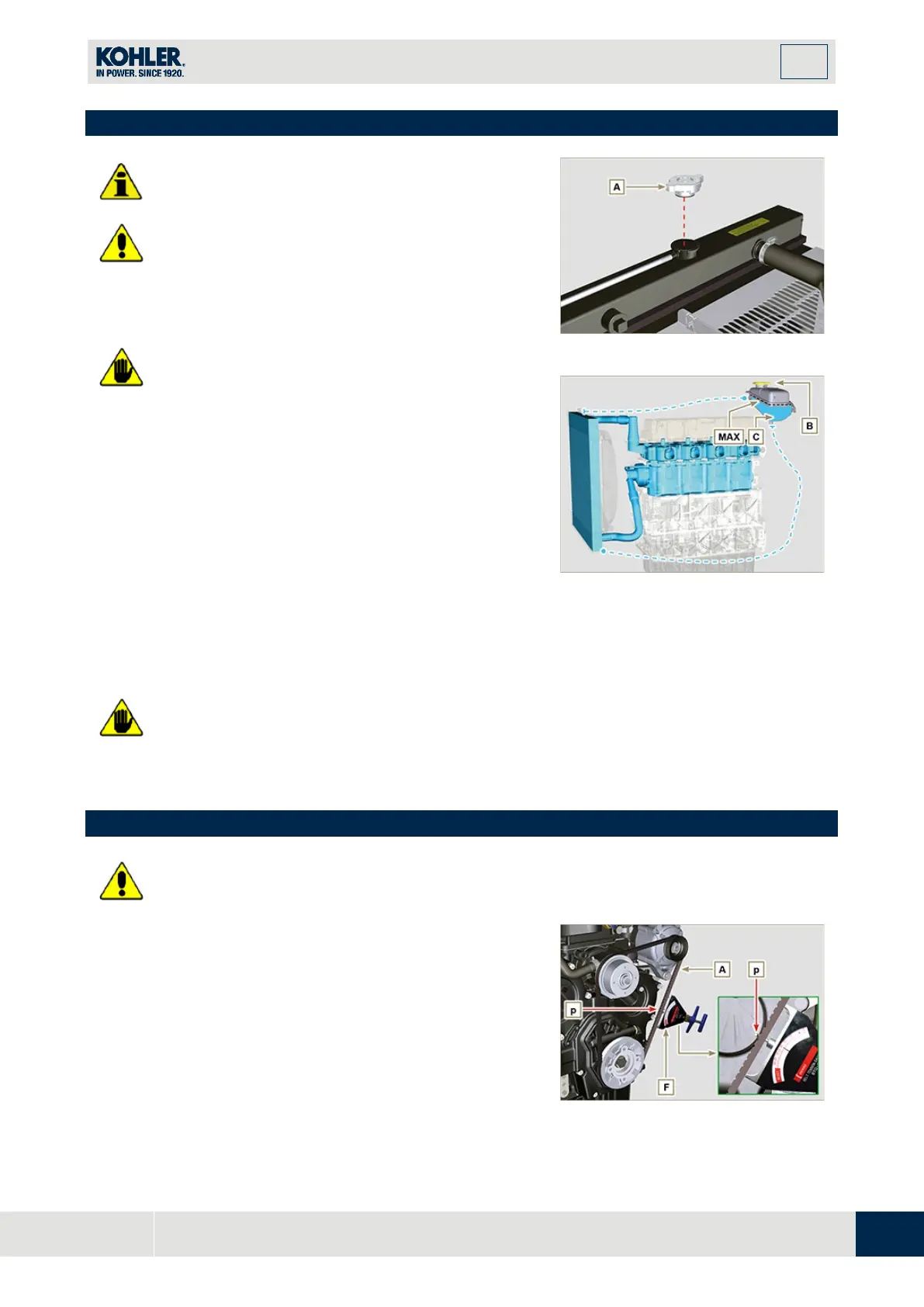

5.8 Check coolant level
Important
•
Before proceeding with operation, read Par. 3.2.2.
Danger
•
For safety precautions see Chap. 3.
NOTE
: Before proceeding with any operation on the engine,
stop it and allow it to cool.
Warning
•
Presence of steam pressurized coolant danger of burn.
NOTE
: Component not necessarily supplied by
KOHLER
.
1.
Start the engine without the radiator cap A .
2.
Top liquid up until the pipes inside the radiator are
covered by about 5 mm.
3.
Top up if necessary.
4.
Do not overfill the radiator, but leave room for the
coolant to expand.
5.
Reinstall radiator cap A
6.
For engines equipped with expansion tank (C), check
that the fluid is until reaching the max level mark
NOTE: For coolant filling see Par. 4.6.
Warning
•
Before starting make sure that the radiator cap and
cap, if present, are installed correctly to avoid spillage
of liquid or vapour at high temperatures.
Fig 5.8
Fig 5.9
5.9 Check and setting alternator standard belt tension
Warning
•
For safety precautions see Chap. 3.
5.9.1 Check
1.
Check the belt A condition, if worn out or deteriorated,
replace it.
2.
Check that at point p the tension value is between
70
and 75 Hz
for V-belt of
9 mm
and
80 and 85 Hz
for V-
belt of
17 mm (H).
Using the tool
F (DENSO BTG-2)
shown in the picture (or a
similar one) it is possible to check the corresponding value in
Newton, (which should be) included between
200 and 230 N
for V-belt of
9 mm
and
350 and 450 N
for V-belt of
17 mm (H).
Fig 5. 10
