TP- 7006 2/21 23Section 1 OnCue Plus Navigation
1.11.3 Stop Exercise
After starting the engine using START EXERCISE,
select STOP EXERCISE to stop the engine before the
programmed stop time, if necessary. See Figure 1-34.

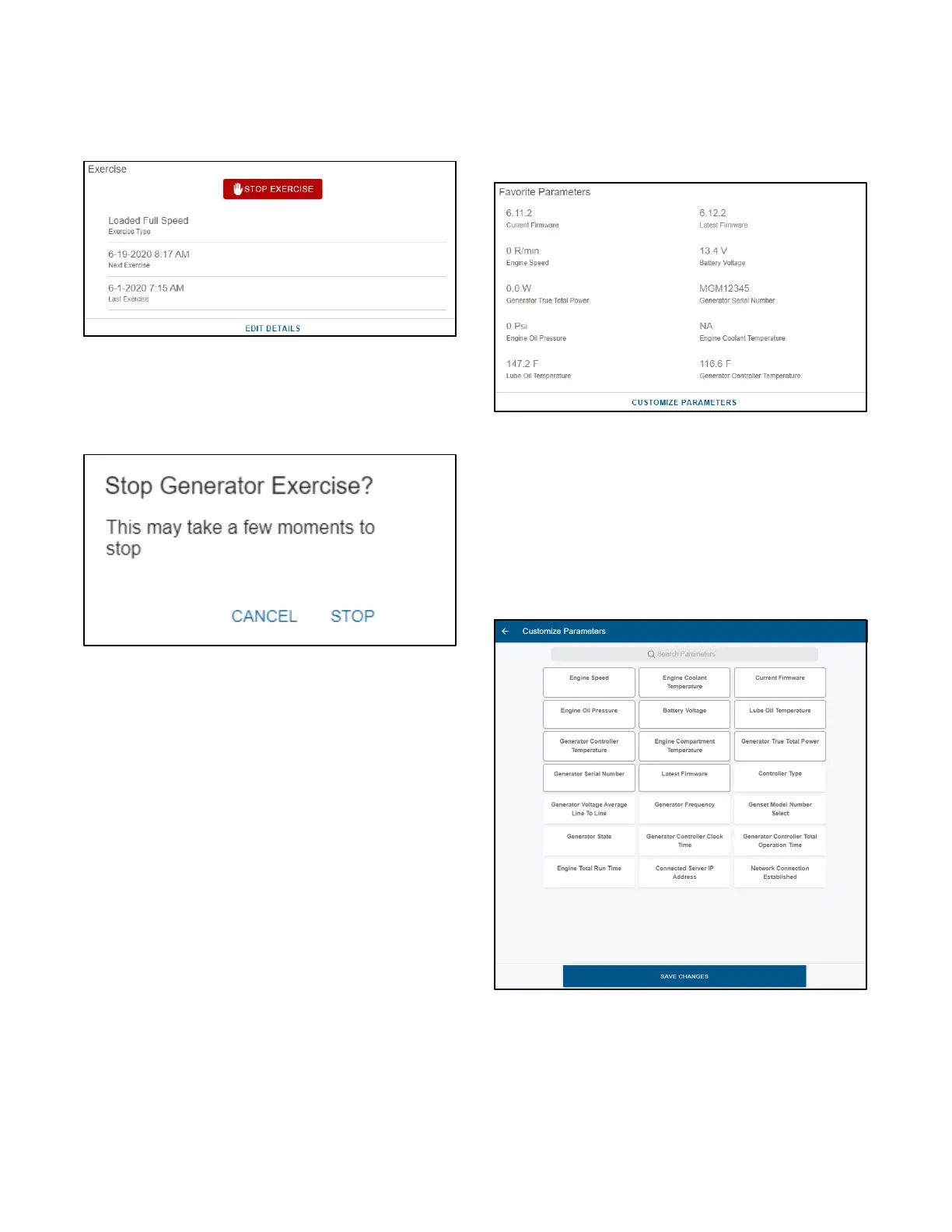

Figure 1-34 Stop Exercise
The dialog box shown in Figure 1-35 opens. Select
STOP to confirm you want to stop the generator set or
CANCEL to exit and let the exercise finish.
Figure 1-35 STOP EXERCISE
The generator set controller must be in AUTO mode for
remote start/stop using OnCue Plus.
Note: TheStopExercisecommandwillnotstopthe
generator set if it was started at the controller b y
pressing RUN or by a remote start command
from an ATS. A scheduled exercise set at the
controller will stop if a STOP command is sent
using OnCue Plus. If communication is lost, the
generator will automatically shut down after the
exercise period is elapsed.
1.12 Favorite Parameters
Favorite Parameters displays details about specific
generator readings and settings. The list of parameters
can be different for each unit. See Figure 1-36 for an
example.
Figure 1-36 Favorite Parameters
If the value of a parameter changes, the parameter will
be bold to signal a change to the value.
To customize, select CUSTOMIZE PARAMETERS at
the bottom. Select each parameter you want to include.
Parameters with a box around them will be displayed.
Select SAVE CHANGES at the bottom to u pdate
Favorite Parameters. See Figure 1-37.
Figure 1-37 Customize Favorite Parameters
