2.6.3.7 Setup Wizzard

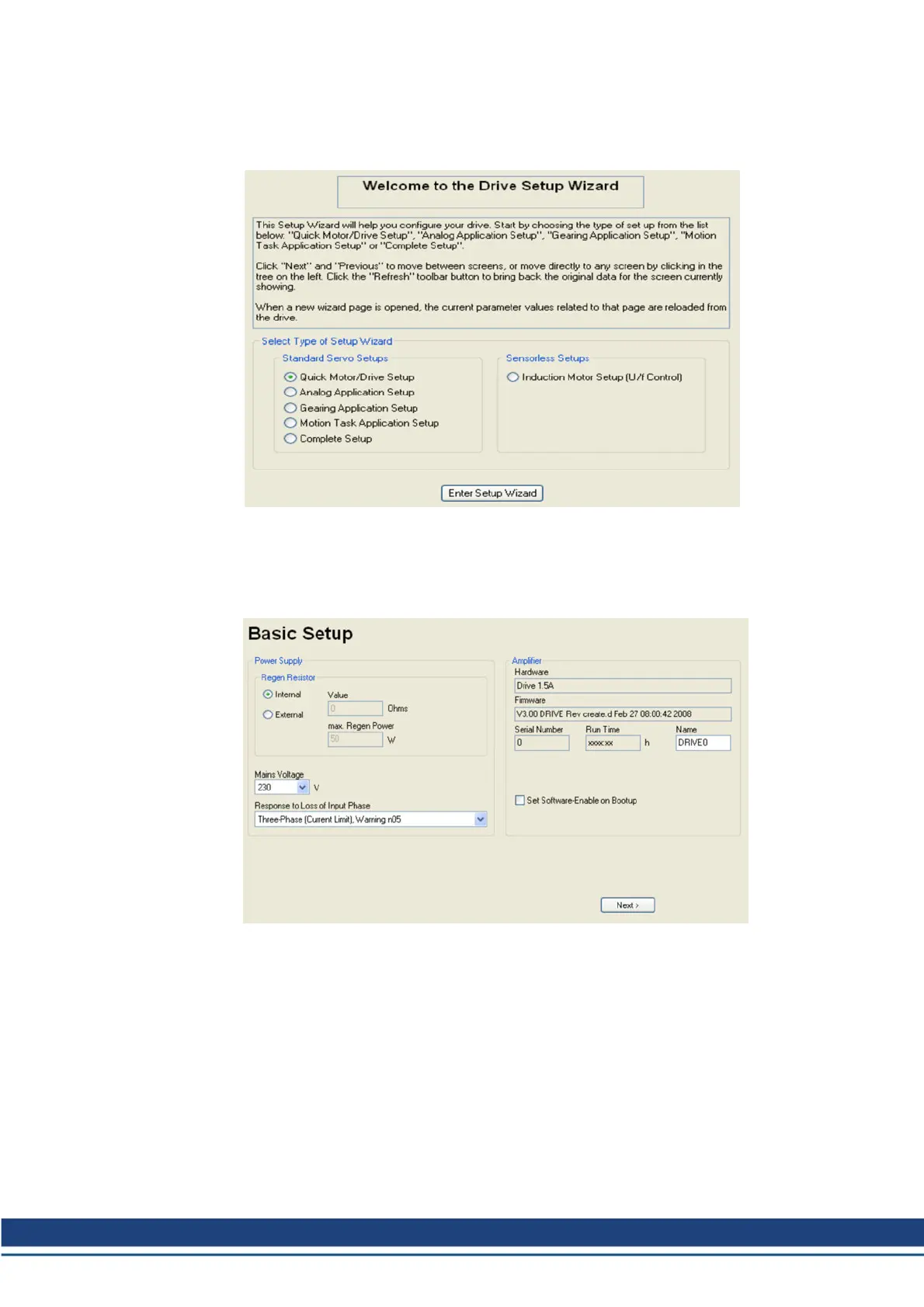

The Setup Wizard leads you through the necessary steps for configuring your servo amp-
lifier. Depending on the selected application, only the active screen pages are necessary.
For a quick setup / drive test, select the setup type "Quick Motor/Drive Setup".
Start the Wizard.
2.6.3.8 Basic Setup
Basic parameters are setup here.
Mains voltage: Vorhandene Netznennspannung einstellen.
Response to Loss of Input Phase: Select Single-Phase or Three-Phase operation. With
three-phase operation you can select either warning "n05" or error "F19" in case of phase
loss. The reaction "F19" disables the output stage, "n05" is just a message.
Name: You can enter a name for the servo amplifier (up to 8 characters). This simplifies the
drive identification in the system.
Set Software Enable on Bootup:Don't select this option for the quick test.
Click NEXT.
