50 Disassembly and assembly SEN01057-01
PC800, 850-8
19
Assembly of control valve
assembly 1
a In this section, only the precautions for assem-
bling the control valve assembly are described.

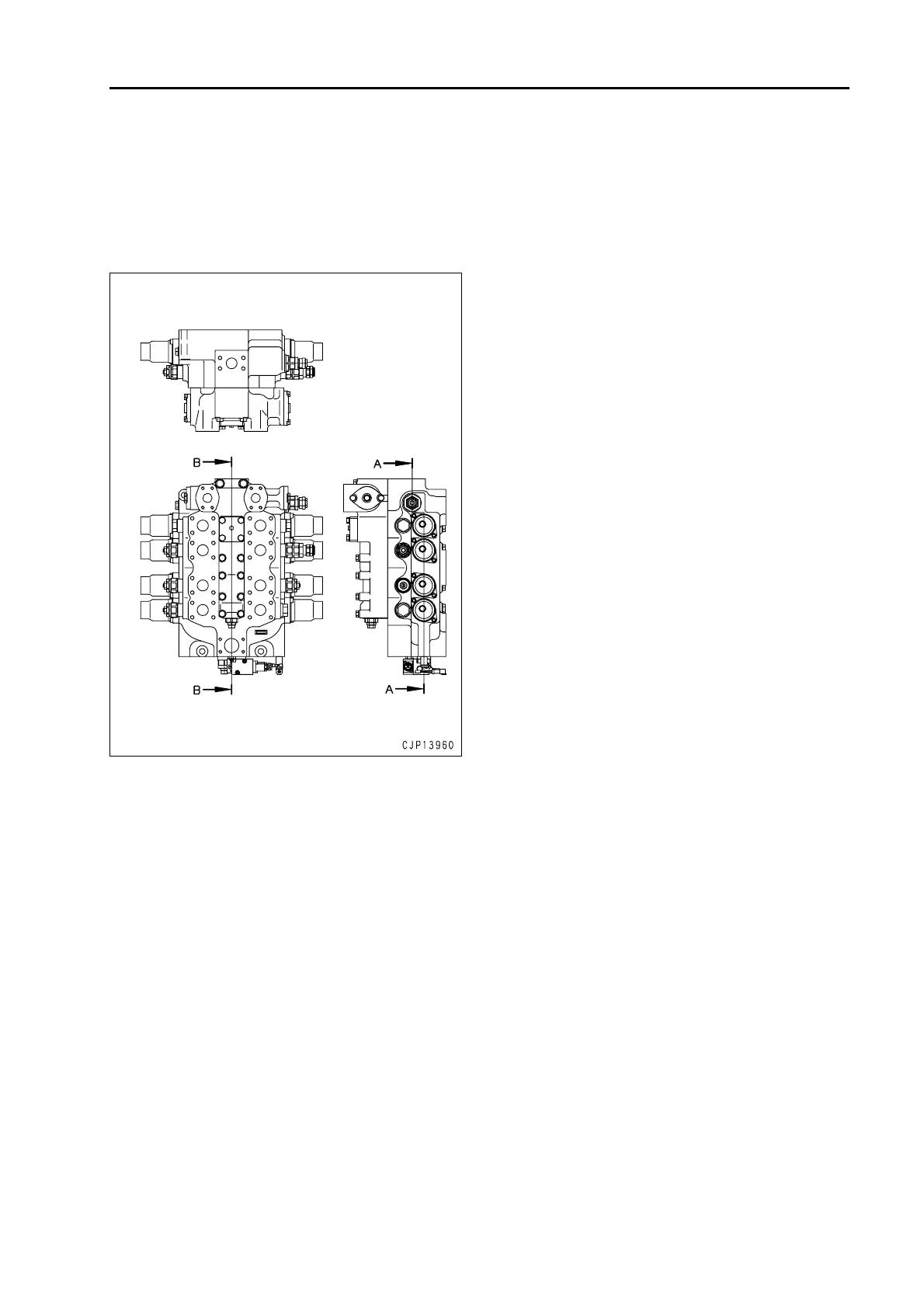

4-spool control valve
