Komatsu Galeo PC850-8 User Manual

50 Disassembly and assembly SEN01060-01
PC800, 850-8
7
Removal and Installation of
KOMTRAX terminal assembly 1
Removal
k Disconnect the negative (–) terminal of bat-
tery.

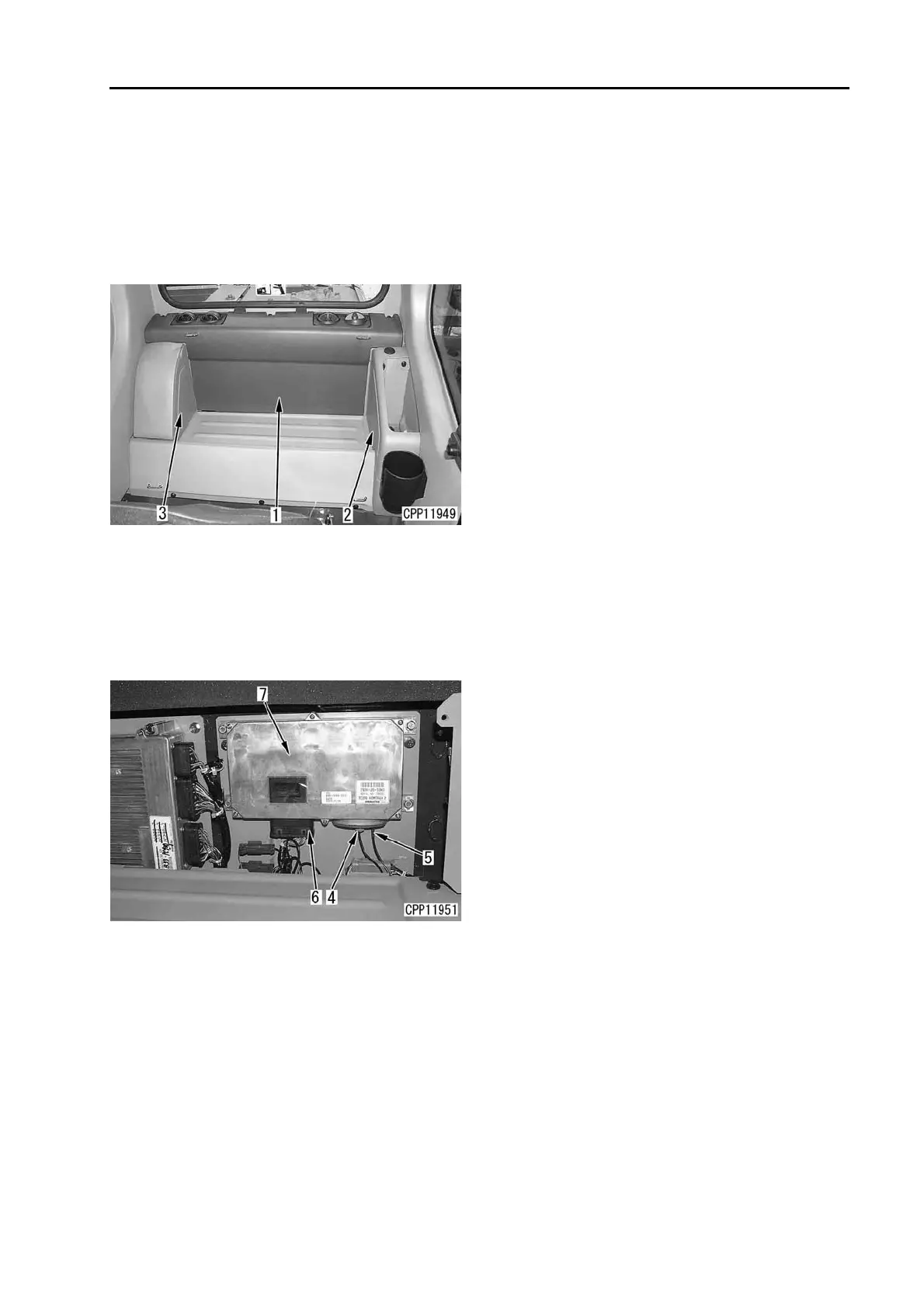

1. Remove covers (1), (2), and (3).
2. Disconnect GPS connector (4) and antenna
wire (5).
3. Disconnect connector G01 (6).
4. Remove 4 mounting bolts and remove
KOMTRAX terminal assembly (7).
Installation
q Carry out installation in the reverse order to
removal.
