Komatsu Galeo PC850-8 User Manual

2 PC800, 850-8
SEN00382-01 10 Structure, function and maintenance standard
Undercarriage and frame

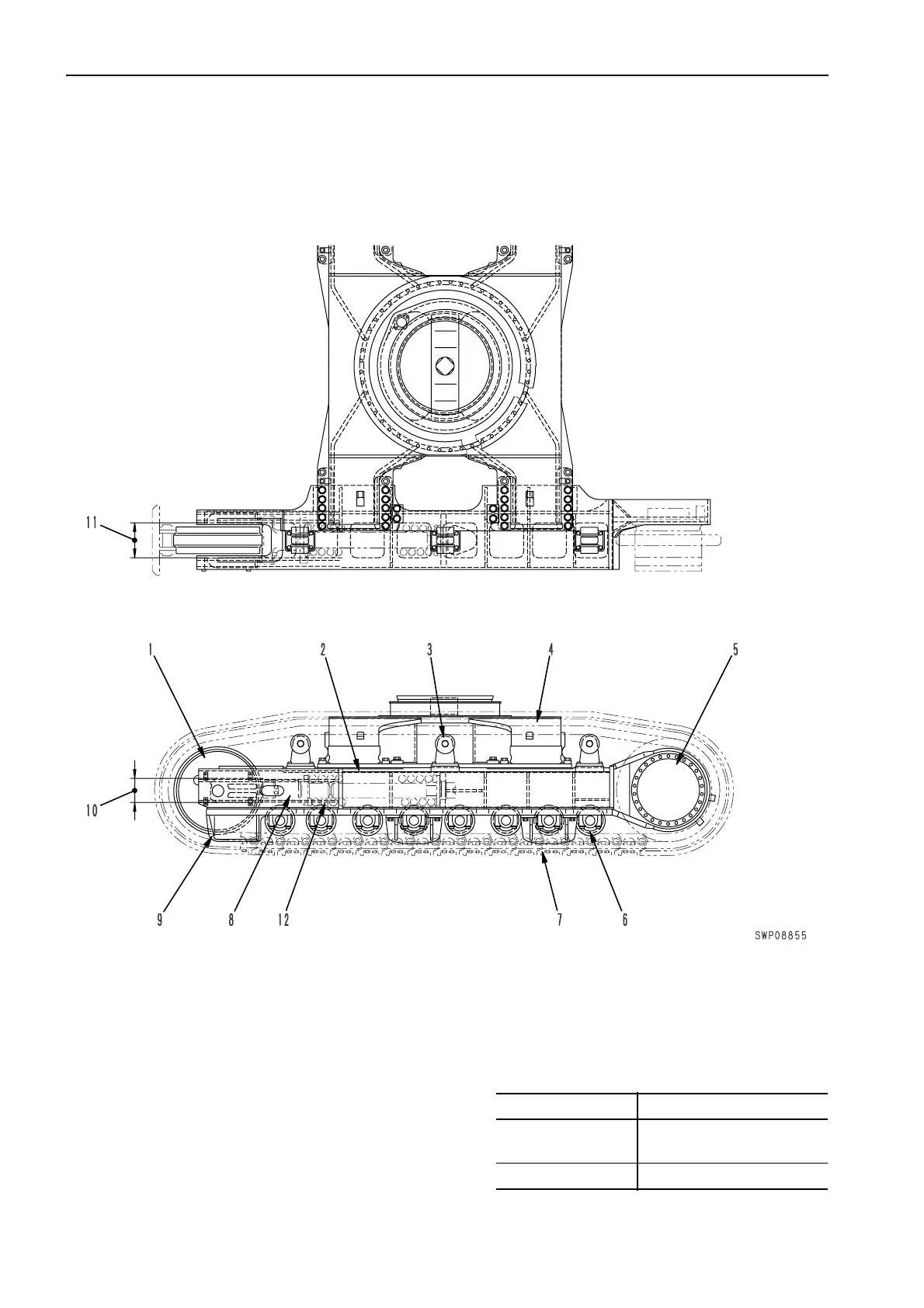

Track frame and recoil spring
a The diagram shows the PC800-8.
• The dimensions and number of track rollers may
differ according to the model, but the basic struc-
ture is the same.
• No. of track rollers
1. Idler
2. Track frame
3. Carrier roller
4. Center frame
5. Final drive
6. Track roller
7. Track shoe
8. Idler cushion
9. Front guard
Model No. of rollers (each side)
PC800, 800SE-8
PC850, 850SE-8
8
PC800LC-8 9

Komatsu Galeo PC850-8 Specifications

General

Brand	Komatsu
Model	Galeo PC850-8
Category	Excavators
Language	English
