50 Disassembly and assembly SEN01059-01
PC800, 850-8
5
Removal and installation of operator’s cab glass (stuck glass) 1
a Among the panes of window glass on the 4
sides of the operator's cab, 4 panes (1) – (4)
are stuck.
In this section, the procedure for replacing the
stuck glass is explained.
When replacing front window glass (4), remove
front window assembly (5). (It is impossible to
replace only the front window glass while the
front window assembly is installed to the oper-
ator's cab.)
For the procedure for replacing the front win-
dow assembly, see "Removal and installation
of front window assembly".

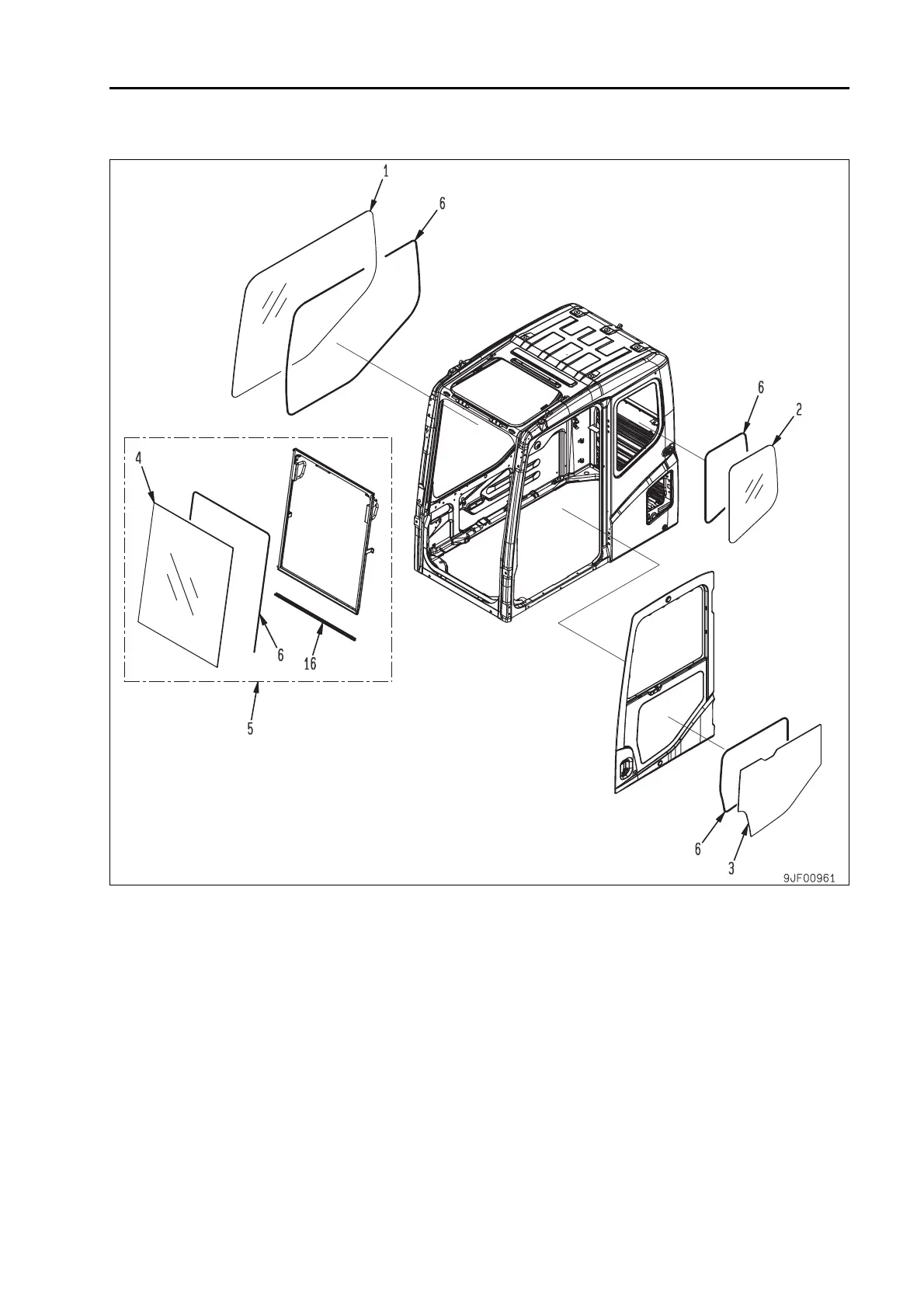

(1) : Right side window glass
(2) : Left side rear window glass
(3) : Door lower window glass
(4) : Front window glass
(5) : Front window assembly
(Front window glass + Front frame)
(6) : Both-sided adhesive tape
(16): Center trim seal
To Next Page
