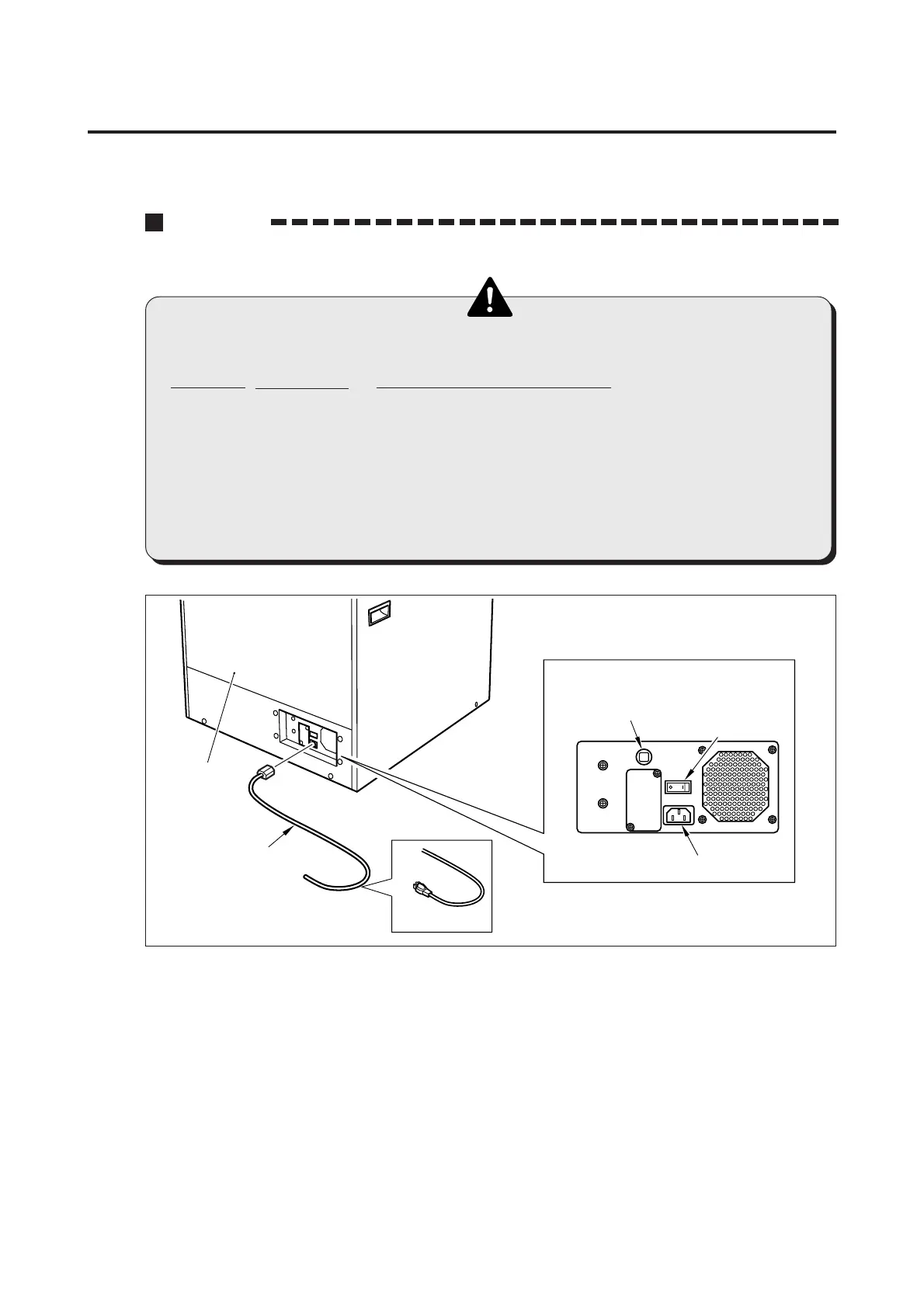

Power unit
Circut protector(10A)
Main power switch
Power inlet
GQ810-UC
AC power cord
Back door
6 Setting up the game machine
Power unit
6-3 Power unit
The power unit is located on the back of the machine.
•Be sure to use the attached AC power cord.
•Be sure to ground to the machine. Never connect the grounding wire to
gas pipe, water pipe or telephone ground terminal.
•The machine has some high-voltage parts inside. Only a qualified
industry specialist is allowed to open the back door of the machine. With
this back door open, be very careful not to touch unnecessary parts.
•Before opening the back door, be sure to turn OFF the main power switch
on the power unit and unplug the power cord. If the sub-power switch on
the service panel is turned OFF but the main power switch on the power
unit is still ON, some parts inside are still on power.
